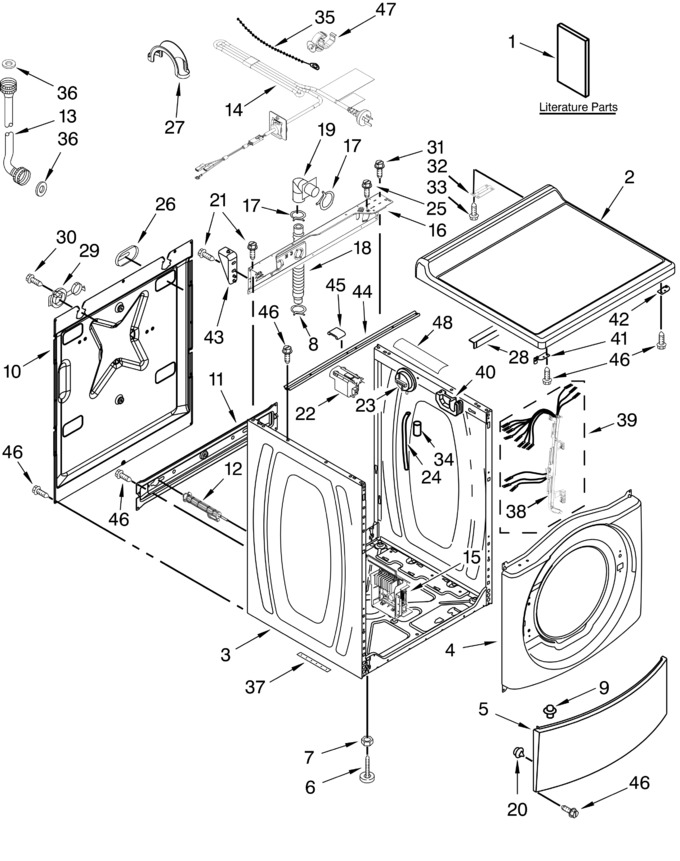

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | ARIA4FFDCF0DC1F31B9ACAF295D75B51D00 | Top |
|
- | |||||
| 3 | W10198145 | Cabinet (white) |
|
- | |||||
| 4 | WPW10306505 | Panel, Front (white) (Replaces: W10306505) |
|
$ 374.67 | |||||
| 5 | WP8540664 | Panel, Toe (white) (Replaces: 8540664) |
|
$ 377.11 | |||||
| 6 | W10862938 | Foot, Leveling (Replaces: W10245373) |
|
Immediately | $ 13.22 | ||||
| 7 | WP3359452 | Nut, Hex (Replaces: 3359452) |
|
Immediately | $ 7.55 | ||||
| 8 | WP285655 | Clamp, Hose (Replaces: W10421047) |
|
Immediately | $ 8.81 | ||||
| 9 | 8518891 | Rivet |
|
$ 14.07 | |||||
| 10 | W10258342 | Panel, Rear |
|
- | |||||
| 11 | W10189659 | Brace, Transport |
|
$ 45.35 | |||||
| 12 | W10763471 | Bolt, Shipping (set Of 4) (Replaces: W10251449) |
|
$ 42.13 | |||||
| 13 | WPW10352644 | Hose, Water Inlet (cold) (Replaces: W10352644) |
|
$ 33.98 | |||||
| 14 | W11341339 | Cord, Power (australia) |
|
- | |||||
| 15 | WPW10385821 | Motor Control Unit (Replaces: W10385821) |
|
$ 487.66 | |||||
| 16 | W11337073 | Brace, Rear |
|
- | |||||
| 17 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 18 | WPW10106460 | Hose, Drain Outer (Replaces: W10106460) |
|
$ 28.68 | |||||
| 19 | W11757170 | Connector, Hose Outlet (Replaces: W10003260) |
|
Immediately | $ 6.71 | ||||
| 20 | 238614 | Bumper |
|
$ 84.79 | |||||
| 21 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 22 | W11678244 | Filter, Rfi Line (Replaces: W11528778) |
|
- | |||||
| 23 | WPW10448876 | Sensor, Pressure (Replaces: W10448876) |
|
Immediately | $ 66.79 | ||||
| 24 | W11252474 | Hose, Pressure Switch (Replaces: W11048528) |
|
Immediately | $ 35.23 | ||||
| 25 | 8540479 | Screw, Grounding |
|
$ 9.22 | |||||
| 26 | WP8540268 | Cover, Transport (Replaces: 8540268) |
|
$ 7.30 | |||||
| 27 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 8.37 | |||||
| 28 | WPW10342663 | Angle, Support Top (Replaces: W10342663) |
|
$ 149.58 | |||||
| 29 | W11116978 | Sleeve, Cord Support (Replaces: 8540728) |
|
$ 23.94 | |||||
| 30 | 8182201 | Screw (Replaces: 8540727) |
|
$ 14.08 | |||||
| 31 | 8540329 | Screw |
|
- | |||||
| 32 | WP8565018 | Hinge Assembly (white) (Replaces: 8565018) |
|
$ 115.34 | |||||
| 33 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 34 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 35 | WPW10339879 | Tie, Cable (beaded) (Replaces: 3347868) |
|
$ 8.30 | |||||
| 36 | WP16123 | Washer, Hose (Replaces: W10242307) |
|
$ 8.16 | |||||
| 37 | W10693220 | Seal, Foam |
|
- | |||||
| 38 | W10200785 | Harness Channel, Side Front |
|
$ 9.54 | |||||
| 39 | W10475277 | Harness, Wiring (lower Main) |
|
- | |||||
| 40 | 8540643 | Bracket, Spring |
|
$ 12.86 | |||||
| 41 | W10137445 | Bracket - Top Panel, Left |
|
- | |||||
| 42 | W10137444 | Bracket - Top Panel, Right |
|
- | |||||
| 43 | W10137398 | Stop, Top Panel |
|
- | |||||
| 44 | WP8540721 | Brace, Top (Replaces: 8540721) |
|
$ 52.26 | |||||
| 45 | WP8283273 | Damper, Brace (Replaces: 8283273) |
|
$ 28.40 | |||||
| 46 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.72 | |||||
| 47 | W10190263 | Clip, Harness |
|
- | |||||
| 48 | W10133515 | Deflector Switch Assembly |
|
- | |||||
| WPW10137454 | Bezel, Card Reader (Replaces: W10137454) |
|
$ 6.03 | ||||||
| W11642345 | Installation Instructions |
|
- | ||||||
| W11594399 | Use And Care Guide |
|
- | ||||||
| W11580854 | Tech Sheet |
|
- | ||||||
| W11318407 | Cord, Power (europe) |
|
- | ||||||
| ARI637BFBF7857A54D3F624C79B0393B121 | (includes No(s) 38) |
|
- | ||||||
| W11622909 | White (Replaces: W10137410) |
|
- | ||||||
| WPW10352594 | Hose, Water Inlet (warm) (Replaces: W10352594) |
|
$ 41.30 | ||||||
| W11318406 | Cord, Power (united Kingdom) |
|
- |
