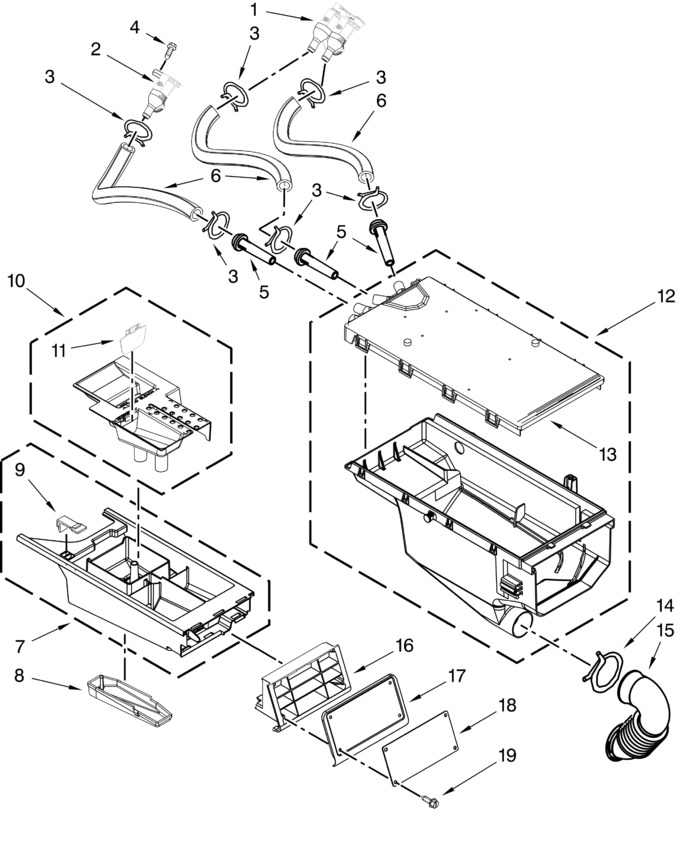

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10316929		Valve, Water Inlet (double)   (Replaces: W10316929)				$ 53.15
2	WPW10316932		Valve, Water Inlet (single)   (Replaces: W10316932)				$ 42.95
3	WP596669		Clamp, Hose   (Replaces: W10096852)			Immediately	$ 8.82
4	WP8540282		Screw   (Replaces: 8540282)				$ 12.14
5	WP8183181		. Nozzle, Inlet   (Replaces: 461970803531)				$ 94.82
6	W11382387		Hose (valve To Dispenser)				$ 52.82
7	W10395619		Drawer, Detergent   (Replaces: W10376660)			Immediately	$ 107.45
8	WP8540399		Cover, Detergent Drawer   (Replaces: 8540399)				$ 78.59
9	W11215543		Tab, Drawer Release   (Replaces: W10919873)				$ 10.65
10	W10433390		Siphon, Bleach/softener   (Replaces: W10679677)			Immediately	$ 83.44
11	WPW10298953		Door, Living Hinge   (Replaces: W10298953)				$ 6.75
12	W10364594		Dispenser, Outer Housing   (Replaces: W10212603)				$ 316.39
13	WPW10212604		Plate, Distribution   (Replaces: W10212604)			Immediately	$ 100.22
14	W11622908		Clamp, Hose   (Replaces: W10273032)				$ 23.33
15	W11366227		Hose (dispenser To Tub)   (Replaces: W10583436)			Immediately	$ 24.31
16	WPW10137432		Handle, Drawer   (Replaces: W10137432)			Immediately	$ 61.44
17	WPW10137460		Cover, Handle   (Replaces: W10137460)			Immediately	$ 109.86
18	W11188532		Dispenser, Fascia   (Replaces: W10804029)				$ 204.16
19	WPW10137456		Screw   (Replaces: W10137456)				$ 8.61

    View Diagram in Separate Window       Print Part List
