Control Panel Parts
Dispenser Parts
Door Parts
Optional Parts (not Included)
Pump And Motor Parts
Top And Cabinet Parts
Tub And Basket Parts
SELECT A DIAGRAM
New Model Search:

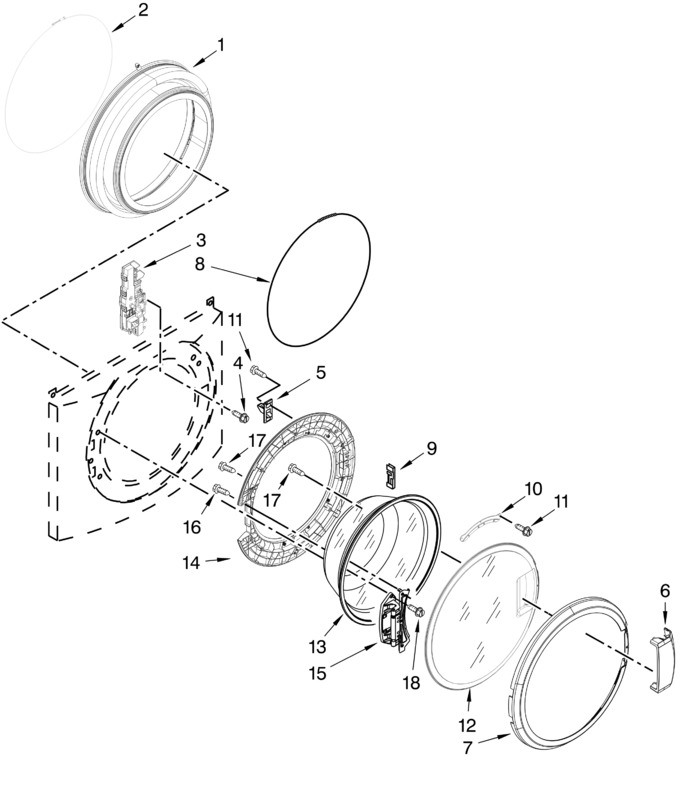

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11126066 | Bellow (Replaces: W10660257) |
|
Immediately | $ 342.27 | ||||
| 2 | WP8540108 | Clamp, Bellow To Tub (Replaces: 8540108) |
|
Immediately | $ 25.64 | ||||
| 3 | WPW10196671 | Lock, Door (Replaces: W10196671) |
|
$ 160.61 | |||||
| 4 | WP8540725 | Screw (Replaces: 8540725) |
|
Immediately | $ 8.52 | ||||
| 5 | WP8540221 | Hook, Door (Replaces: 8540221) |
|
Immediately | $ 12.39 | ||||
| 6 | WPW10112925 | Handle, Door (Replaces: W10112925) |
|
Immediately | $ 34.83 | ||||
| 7 | WPW10198440 | Trim Ring, Outer Door (Replaces: W10198440) |
|
$ 67.36 | |||||
| 8 | W11032829 | Clamp, Bellow To Front Panel (Replaces: W10894122) |
|
Immediately | $ 22.30 | ||||
| 9 | WP8540115 | Clamp, Support (Replaces: 8540115) |
|
$ 7.30 | |||||
| 10 | W11665946 | Clamp, Glass (Replaces: 8540114) |
|
$ 21.90 | |||||
| 11 | W11230114 | Screw (Replaces: 8540513) |
|
$ 13.94 | |||||
| 12 | WPW10137404 | Frame, Door Front Assembly (Replaces: W10137404) |
|
$ 384.67 | |||||
| 13 | WPW10388315 | Glass, Door (Replaces: W10388315) |
|
$ 345.28 | |||||
| 14 | W11402025 | Frame, Door Back Support (Replaces: W10198442) |
|
$ 153.10 | |||||
| 15 | WPW10198417 | Hinge, Door (Replaces: W10198417) |
|
Immediately | $ 319.64 | ||||
| 16 | WP8181660 | Screw (Replaces: 8540284) |
|
$ 7.30 | |||||
| 17 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 12.14 | |||||
| 18 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.72 |
