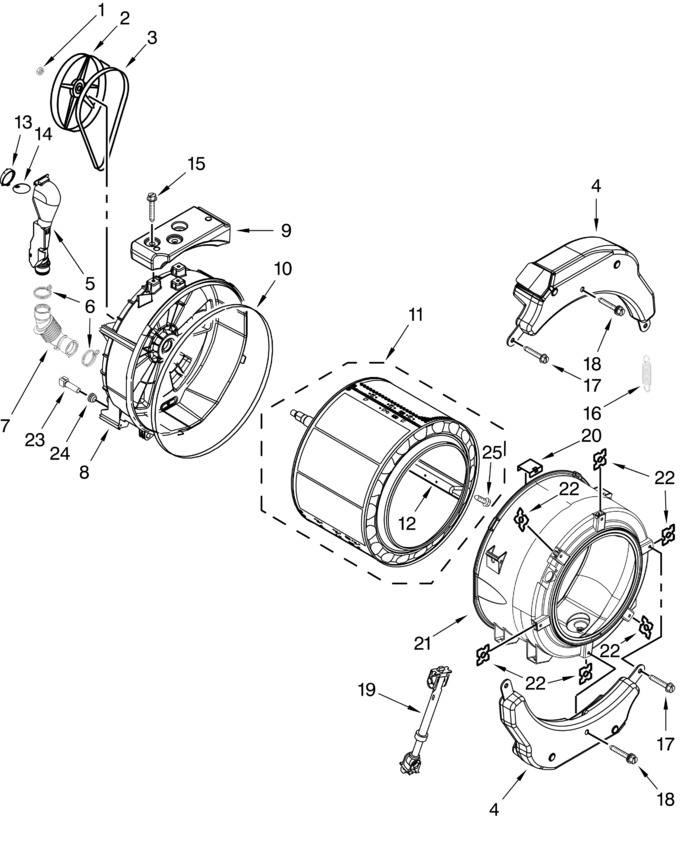

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10283361		Nut, Pulley   (Replaces: 8533999)			Immediately	$ 74.76
2	WP8540088C		Pulley   (Replaces: 8540088)				$ 185.53
3	WPW10388418		Belt, Drive   (Replaces: W10388418)			Immediately	$ 55.18
4	WPW10223198		Counterweight, Front   (Replaces: W10223198)			Immediately	$ 169.07
5	W10142720		Pipe, Ventilation				$ 99.39
6	W10273034		Clamp, Vent Hose				$ 10.10
7	W11398765		Hose, Exhaust   (Replaces: W10583497)				$ 28.52
8	W11036330		Tub, Rear   (Replaces: W11172228)				$ 1,561.56
9	WPW10200747		Counterweight, Rear   (Replaces: W10200747)				$ 152.26
10	WPW10111158		Gasket, Tub   (Replaces: 8540090)			Immediately	$ 93.68
11	W11036330		Basket, Complete   (Replaces: W10198146)				$ 1,561.56
12	W11700547		Baffle, Tub   (Replaces: W11413149)				$ 33.47
13	W10142721		Ventilation, Connector		Appelez-nous	-
14	W10142722		Flap, Ventilation		Appelez-nous	-
15	W11028021		Screw, Rear Counterweight   (Replaces: W10246531)				$ 8.34
16	280159		Spring, Suspension   (Replaces: W10010360)				$ 100.89
17	W11685857		Screw   (Replaces: W10094780)				$ 13.33
18	WPW10259288		Bolt Assembly, Counterweight Center Hole   (Replaces: W10259288)				$ 12.58
19	W10822553		Absorber, Shock   (Replaces: W10015830)			Immediately	$ 75.98
20	WP8540092		Clamp, Tub   (Replaces: 8540092)				$ 7.17
21	W10312454		Tub, Front   (Replaces: W10266965)				$ 722.28
22	WP8182512		Nut, Push-in   (Replaces: 8540072)			Immediately	$ 6.57
23	WPW10467289		Sensor, Temperature   (Replaces: W10467289)			Immediately	$ 43.02
24	W11590578		Seal, Rubber   (Replaces: W10609567)			Immediately	$ 7.53
25	WP8540382		Screw   (Replaces: 8540382)				$ 6.57
