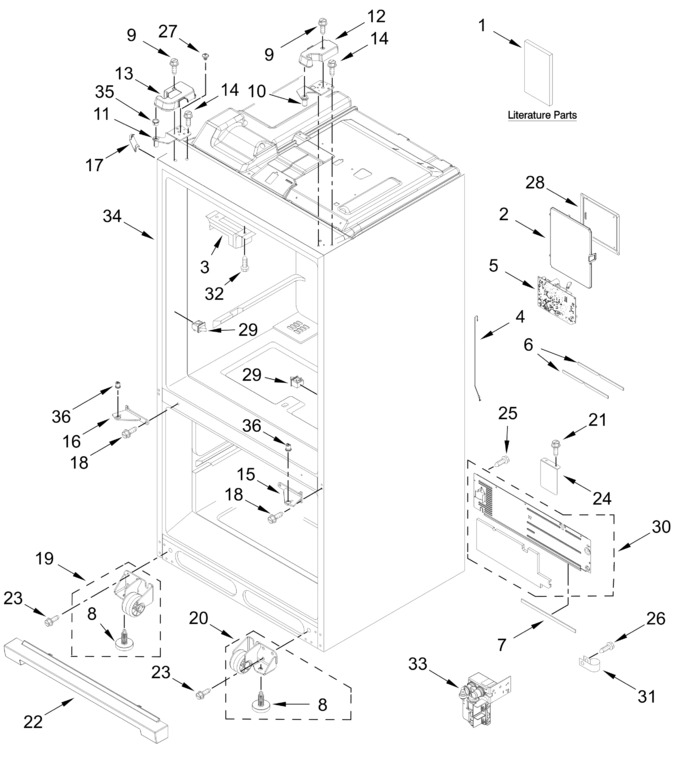

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI4741983F61CAC445F12C0C1FD1B613C1 Literature Parts Appelez-nous -
2 W10768379 Lid, Hv Special Order $ 75.24

3 WPW10344432 Block, Pivot   (Replaces: W10344432) In-Stock Immediately $ 17.24

4 W11482381 Tube, Water   (Replaces: W11296599) In-Stock Immediately $ 101.12

5 W11776301 Control Board, Electronic   (Replaces: W11735236) Appelez-nous -
6 W10415341 Gasket, Hv Box Special Order $ 33.30

7 W11534848 Gasket, Unit Cover In-Stock Immediately $ 20.11

8 WPW10141622 Brake, Roller   (Replaces: W10141622) In-Stock Immediately $ 7.42

9 WP8281196 Screw   (Replaces: 12992602) In-Stock Immediately $ 6.80

10 W11592404 Hinge, Top (right Hand)   (Replaces: W11456643) Special Order $ 23.31

11 W11592405 Hinge, Top (left Hand)   (Replaces: W11456644) Special Order $ 29.08

12 WPW10407158 Cover, Top Hinge (grey, Right Hand)   (Replaces: W10407158) Special Order $ 20.68

13 WPW10471618 Cover, Top Hinge (grey, Left Hand)   (Replaces: W10471618) Special Order $ 22.74

14 W11126052 Screw   (Replaces: W10731474) In-Stock Immediately $ 13.26

15 W11240748 Hinge, Center (grey, Right Hand)   (Replaces: W10248703) Special Order $ 70.84

16 W10878115 Hinge, Center (grey, Left Hand)   (Replaces: W10248706) In-Stock Immediately $ 69.17

17 WP12587703AP Cover, Corner (grey)   (Replaces: 12587703AP) Special Order $ 7.26

18 W11573362 Screw (stainless)   (Replaces: W10673840) Special Order $ 13.25

19 W11820444 Roller Assembly (left Hand)   (Replaces: W10515763) In-Stock Immediately $ 33.62

20 W11820445 Roller Assembly (right Hand)   (Replaces: W10515762) In-Stock Immediately $ 33.62

21 W11686675 Screw   (Replaces: 12990702) Special Order $ 12.84

22 WPW10637671 Grille, Toe (grey)   (Replaces: W10637671) In-Stock Immediately $ 129.11

23 67006564 Screw   (Replaces: W10709365) In-Stock Immediately $ 7.34

24 W10336736 Cover, Roller   (Replaces: W11578005) Appelez-nous -
25 WPW10141645 Screw   (Replaces: W10141645) Special Order $ 7.25

26 67006425 Screw   (Replaces: 12990511) In-Stock Immediately $ 6.57

27 W11214483 Screw   (Replaces: 12992601) In-Stock Immediately $ 13.25

28 W10754144 Cover, Control Box Special Order $ 77.54

29 W11396033 Switch, Light   (Replaces: W10847849) In-Stock Immediately $ 33.57

30 W11482027 Cover, Unit   (Replaces: W11364644) In-Stock Immediately $ 109.22

31 W11456069 Clamp, Tube   (Replaces: M0108107) In-Stock Immediately $ 20.16

32 W10854958 Screw   (Replaces: 12990302) Special Order $ 7.11

33 W11482025 Valve, Water   (Replaces: W11460084) In-Stock Immediately $ 271.67

34 ARI2948F547D7C4C1B6CA0878B04EDFC4EF Cabinet (not A Servicable Part) Appelez-nous -
35 W10212137 Retainer, Door Special Order $ 12.32

36 WPW10505294 Coupler, Door   (Replaces: W10505294) Special Order $ 11.90

W11669215 Energy Guide Appelez-nous -
W11662357 Tech Sheet Appelez-nous -
ARI7C4B781E09F4C135E8A56A812FBF5A4D Following Parts Not Illustrated Appelez-nous -
W11483123 Harness, Dual Valve   (Replaces: W11306925) Appelez-nous -
W11502338 Owners Manual Appelez-nous -
