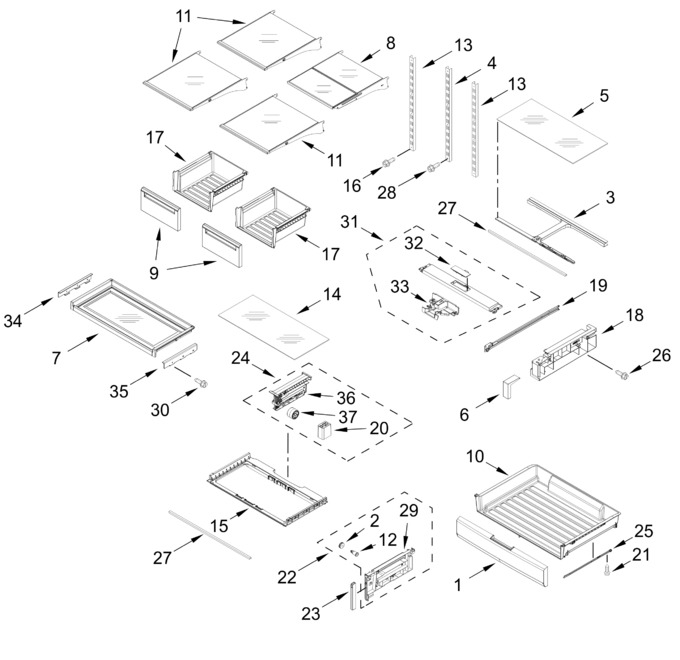

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10559660		Front, Pantry   (Replaces: W10559660)				$ 219.72
2	WPW10248544		Roller, Guide   (Replaces: W10248544)				$ 7.28
3	W11224265		Support, Pantry   (Replaces: W11124673)				$ 142.71
4	WPW10248516		Ladder, Center   (Replaces: W10248516)				$ 32.30
5	WPW10248799		Glass, Pantry   (Replaces: W10248799)				$ 202.57
6	W10426775		Front, Pantry Sideplate (left Hand)				$ 26.69
7	W11552036		Shelf Assembly, Platter (includes Glass)   (Replaces: W11460454)		Appelez-nous	-
8	WPW10401836		Shelf, Tuck   (Replaces: W10401836)				$ 246.44
9	W11817014		Front, Crisper   (Replaces: W10524914)				$ 174.20
10	WPW10654844		Pan, Pantry   (Replaces: W10498901)			Immediately	$ 142.27
11	WPW10402687		Shelf, Fixed   (Replaces: W10402687)				$ 196.86
12	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 32.89
13	W11690684		Ladder, Side   (Replaces: W10372170)				$ 45.56
14	WPW10248578		Glass, Crisper   (Replaces: W10248578)				$ 298.54
15	W11133643		Cover, Crisper				$ 180.26
16	W11311945		Screw   (Replaces: 12990204)				$ 13.25
17	W10850129		Pan, Crisper   (Replaces: W10410352)			Immediately	$ 137.84
18	WPW10498906		Sideplate, Pantry (left Hand)   (Replaces: W10498906)				$ 118.84
19	W10508327		Slide, Pantry (left Hand)				$ 270.96
20	W10530315		Support, Crisper				$ 15.30
21	WP8281136		Screw   (Replaces: 8281136)				$ 6.57
22	W11763411		Sideplate, Crisper (left Hand)   (Replaces: W11315531)				$ 58.32
23	W10488299		Front, Sideplate (crisper)				$ 32.46
24	W10549606		Track Assembly, Crisper Center				$ 110.88
25	W10508330		Roller Runner, Pantry Pan (left Hand)		Appelez-nous	-
26	W10185612		Screw				$ 6.37
27	WPW10236512		Support, Crisper Front   (Replaces: W10236512)				$ 120.65
28	W10423560		Screw		Appelez-nous	-
29	W11315181		Plate, Crisper (left Hand)				$ 72.12
30	W10847999		Screw				$ 12.12
31	W10554737		Cover Assembly, Front Pantry		Appelez-nous	-
32	W10554281		Housing, Pantry Temperature Control		Appelez-nous	-
33	W10512596		Knob, Pantry Temperature Control		Appelez-nous	-
34	W11133647		Rail, Platter Side (left Hand)				$ 125.60
35	W11133648		Rail, Platter Side (right Hand)				$ 125.60
36	W10530307		Track, Center				$ 80.34
37	W10248789		Roller, Crisper Support (center)				$ 17.43
	W10508326		Slide, Pantry (right Hand)				$ 280.33
	W11315180		Plate, Crisper (right Hand)				$ 22.46
	W10508328		Roller Runner, Pantry Pan (right Hand)		Appelez-nous	-
	W11759114		Sideplate, Crisper (right Hand)   (Replaces: W11315533)				$ 58.32
	W11225684		Sideplate, Pantry (right Hand)   (Replaces: W11124810)				$ 89.07
