Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11518736 Door Assembly (stainless, Left Hand, Includes Door Gasket)   (Replaces: W11405217) Special Order $ 1,017.22

2 W11436604 Door Assembly (stainless, Right Hand, Includes Door Gasket)   (Replaces: W11377901) Special Order $ 797.87

3 WPW10238319 Screw   (Replaces: W10238319) Special Order $ 7.18

4 W10904595 Latch, Door Closer (left Hand)   (Replaces: W10712952) Special Order $ 16.24

5 W11212164 Latch, Door Closer (right Hand)   (Replaces: W10712953) Special Order $ 15.83

6 W10806457 Mullion, Door (grey)   (Replaces: W10698199) In-Stock Immediately $ 255.29

7 W11311945 Screw   (Replaces: 12990204) Special Order $ 13.25

8 W11024095 Handle Assembly (stainless)   (Replaces: W10886562) Special Order $ 203.74

9 WP98165 Screw   (Replaces: 12990504) Special Order $ 7.71

10 W11573367 Bumper, Door (grey)   (Replaces: W10407188) In-Stock Immediately $ 21.02

11 WPW10612926 Badge   (Replaces: W10612926) In-Stock Immediately $ 35.64

12 W11449276 Screw   (Replaces: W11328753) In-Stock Immediately $ 15.35

13 W10849724 Trivet, 2 Liter   (Replaces: W10555427) Special Order $ 160.98

14 W10860198 Bucket, Gallon   (Replaces: W10519670) In-Stock Immediately $ 238.76

15 2006254 Screw   (Replaces: 12993001) Special Order $ 12.41

16 W11624997 Gasket, Ice Compartment Door   (Replaces: W10347085) Special Order $ 62.47

17 W11315302 Clip, Tube Appelez-nous -
18 W11751996 Board And Cover Assembly, Emitter   (Replaces: W11554030) Special Order $ 296.07

19 W11751997 Board And Cover Assembly, Receiver   (Replaces: W11554032) Special Order $ 296.07

20 W10549593 Door Assembly, Ice Special Order $ 202.60

21 WPW10400825 Retainer, Ice Chute   (Replaces: W10400825) Special Order $ 29.09

22 WPW10347087 Gasket, Ice Chute   (Replaces: W10347087) Special Order $ 44.07

23 W11684620 Vent, Thermistor   (Replaces: W10646855) In-Stock Immediately $ 20.84

24 W10407212 Gasket, Door (grey)   (Replaces: W10873938) In-Stock Immediately $ 296.27

25 WPW10499015 Tube, Water   (Replaces: W10499015) Special Order $ 115.89


    View Diagram in Separate Window     Print Icon   Print Part List

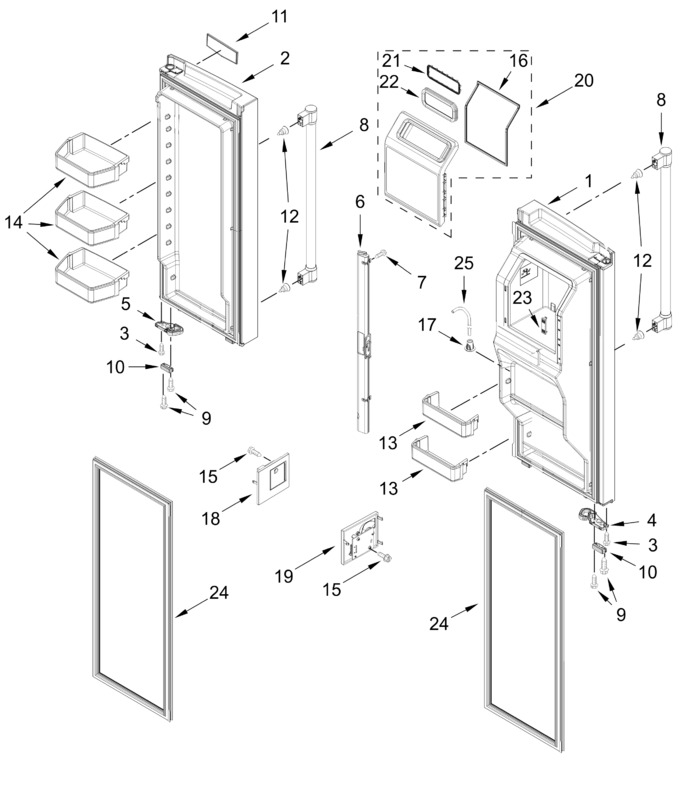

Diagram for MFT2772HEZ08
