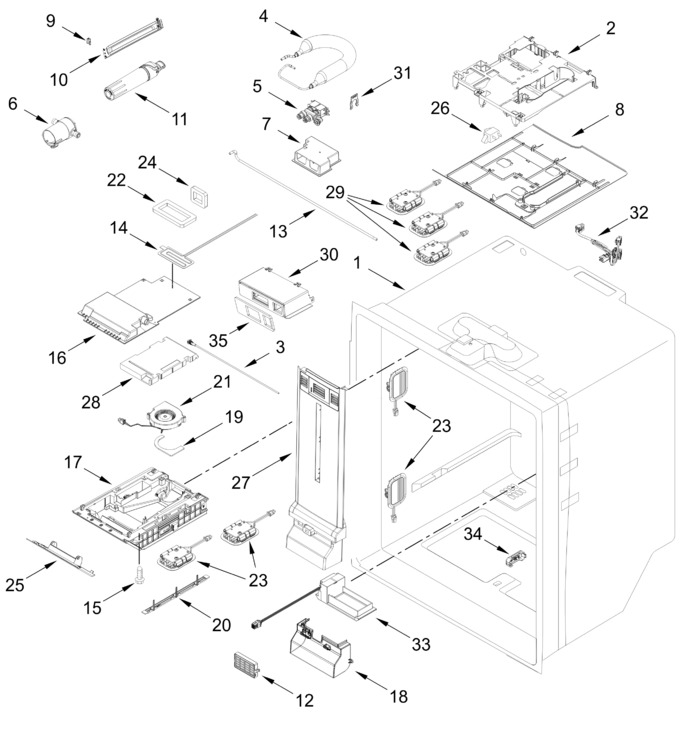

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI1BA464D72C84DA7297AB1B09D16F5BB3 | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11482035 | Housing, Water System (Replaces: W11281629) |
|
$ 93.03 | |||||
| 3 | W11686799 | Tube, Fill (Replaces: W11613057) |
|
Immediately | $ 106.42 | ||||
| 4 | W11482382 | Reservoir, Water (also Order Wire Tie Part 8567668) (Replaces: W11296598) |
|
Immediately | $ 138.71 | ||||
| 5 | W11803379 | Valve, Dual Water (Replaces: W11770814) |
|
Immediately | $ 155.14 | ||||
| 6 | W11482384 | Housing, Water Filter (Replaces: W11293954) |
|
Immediately | $ 98.07 | ||||
| 7 | W11391457 | Enclosure, Water Valve |
|
$ 49.29 | |||||
| 8 | W11190820 | Cover, Waterbox (Replaces: W10669663) |
|
$ 104.16 | |||||
| 9 | WP2223877 | Latch, Push (Replaces: 2223877) |
|
$ 108.76 | |||||
| 10 | WPW10277949 | Door, Filter Access (Replaces: W10277949) |
|
$ 90.82 | |||||
| 11 | EDR2RXD1B | Filter, Water (Replaces: W10680605) |
|
Immediately | $ 49.99 | ||||
| 12 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 12.91 | ||||
| 13 | W11686800 | Waterline, Valve To Hinge (Replaces: W11658811) |
|
$ 79.61 | |||||
| 14 | W11087201 | Heater, Fill Tube (Replaces: W10706850) |
|
Immediately | $ 127.22 | ||||
| 15 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 | ||||
| 16 | WPW10598013 | Cover, Icebox (Replaces: W10598013) |
|
Immediately | $ 142.07 | ||||
| 17 | W11605504 | Icebox Assembly, Foamed (Replaces: W11547436) |
|
$ 278.16 | |||||
| 18 | W11695756 | Cover, Damper (Replaces: W10530312) |
|
Immediately | $ 49.69 | ||||
| 19 | WPW10392172 | Gasket, Fan (Replaces: W10392172) |
|
Immediately | $ 24.99 | ||||
| 20 | W10505516 | Trim, Icebox |
|
$ 31.68 | |||||
| 21 | W10846539 | Fan, Icebox (Replaces: W10833801) |
|
Immediately | $ 295.57 | ||||
| 22 | WPW10280988 | Gasket, Rear Supply (Replaces: W10280988) |
|
Immediately | $ 7.35 | ||||
| 23 | W11483116 | Light Module, Led (Replaces: W11228040) |
|
Immediately | $ 19.63 | ||||
| 24 | WPW10320706 | Gasket, Rear Return (Replaces: W10320706) |
|
Immediately | $ 25.07 | ||||
| 25 | W11637688 | Fascia And Heater Assembly, Icebox (Replaces: W11504346) |
|
Immediately | $ 102.20 | ||||
| 26 | W11384469 | Switch, Rocker (Replaces: W10847853) |
|
Immediately | $ 35.18 | ||||
| 27 | W11790745 | Tower Assembly, Air (Replaces: W11739436) |
|
- | |||||
| 28 | WPW10280983 | Insulation (Replaces: W10280983) |
|
Immediately | $ 84.83 | ||||
| 29 | W11484840 | Harness, Led Wire (includes Led Lights) (Replaces: W11234027) |
|
Immediately | $ 111.21 | ||||
| 30 | WPW10635022 | Adapter, Icebox (Replaces: W10635022) |
|
Immediately | $ 96.81 | ||||
| 31 | W11678575 | Locking Ring (5/16) (Replaces: W11175631) |
|
$ 13.41 | |||||
| 32 | W11369503 | Wire Assembly, Jumper |
|
$ 65.06 | |||||
| 33 | W11776299 | Damper Assembly (includes Harness) (Replaces: W11756471) |
|
- | |||||
| 34 | W11238397 | Cover, Thermistor (Replaces: W10438957) |
|
Immediately | $ 21.00 | ||||
| 35 | W11747986 | Gasket, Adapter (Replaces: W11672619) |
|
- | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11298842 | Wire Assembly, Ice Box |
|
Immediately | $ 123.35 |
