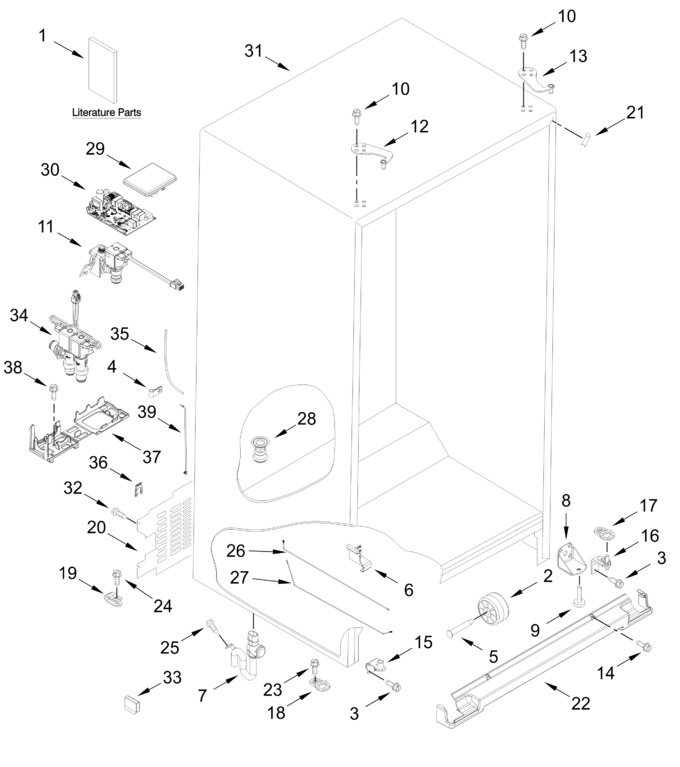

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 28.85
3	WPW10297485		Screw   (Replaces: W10297485)				$ 7.56
4	WP488366		Clamp, Tube   (Replaces: 489385)				$ 10.73
5	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.11
6	W10499011		Bracket, Wire Mounting			Immediately	$ 62.69
7	W11293072		Tube, Drain				$ 31.14
8	W11266052		Bracket, Foot   (Replaces: W10900758)				$ 59.68
9	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 7.42
10	W11579735		Screw, Top Hinge   (Replaces: W10290781)			Immediately	$ 13.26
11	W11758895		Single Water Valve   (Replaces: W11454773)			Immediately	$ 92.60
12	W10901052		Hinge, Freezer Top (black)				$ 68.98
13	W11568758		Hinge, Refrigerator Top (black)   (Replaces: W10901047)				$ 23.06
14	WP98008545		Screw (black)   (Replaces: W10308487)				$ 16.74
15	W11269265		Hinge, Freezer Bottom (black)   (Replaces: W11126854)				$ 63.75
16	W11311416		Hinge, Refrigerator Bottom (black)   (Replaces: W11084348)				$ 63.88
17	W11311686		Closer, Refrigerator Door (black)   (Replaces: W10877807)				$ 12.62
18	W10770895		Closer, Freezer Door (black)				$ 14.20
19	W11234470		Clamp, Plastic				$ 19.91
20	W11758892		Cover, Unit   (Replaces: W11654098)		Appelez-nous	-
21	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 19.93
22	WPW10713158		Grille, Black   (Replaces: W10713158)				$ 88.58
23	WP489483		Screw   (Replaces: W10142234)				$ 10.27
24	WPW10141645		Screw   (Replaces: W10141645)				$ 7.25
25	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 7.54
26	W11759314		Tube, Filter Inlet   (Replaces: W11618931)				$ 85.01
27	W11759315		Tube, Filter Outlet   (Replaces: W11618945)				$ 82.14
28	W10370680		Fitting, Drain				$ 34.05
29	W11226688		Lid, Hv Box   (Replaces: 12957702)				$ 76.64
30	W11760133		Electronic Control   (Replaces: W11619429)		Appelez-nous	-
31	ARI8576EDE2D568F203CA1E28095884C084		Cabinet (not A Serviceable Part)		Appelez-nous	-
32	WP488488		Screw   (Replaces: 489290)				$ 7.67
33	W11545866		Clip, Axle Retainer   (Replaces: 2223388)				$ 10.69
34	W11758894		Valve, Dual Water   (Replaces: W11454780)				$ 92.60
35	WPW10238092		Tube, Water   (Replaces: W10691732)			Immediately	$ 119.02
36	W11676611		Locking Ring (1/4)   (Replaces: W11175632)				$ 13.40
37	W11759313		Bracket, Dual Water Valve   (Replaces: W11713545)		Appelez-nous	-
38	WPW10141625		Screw   (Replaces: W10141625)				$ 20.00
39	W11533098		Tube, Dispenser Water Valve   (Replaces: W11269258)		Appelez-nous	-
	W11678575		Locking Ring (5/16)   (Replaces: W11175631)				$ 13.41
	W11726540		Energy Guide		Appelez-nous	-
	W11727207		Owners Manual		Appelez-nous	-
