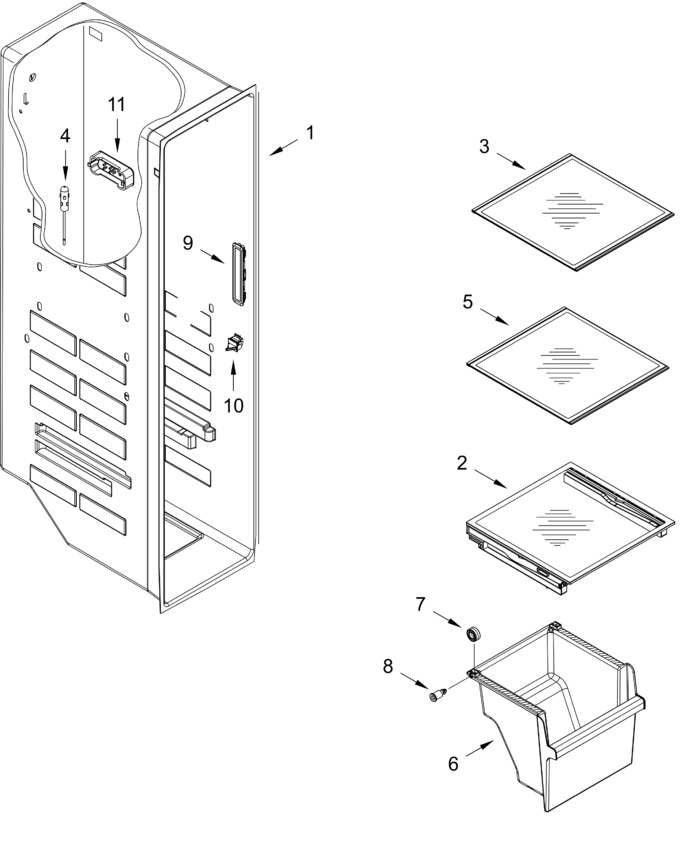

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARID4B24459AD3CE840514D8AC6D2EFEC61		Liner (not A Seviceable Part)		Appelez-nous	-
2	W11759437		Cover Assembly, Freezer Pan   (Replaces: W11637395)		Appelez-nous	-
3	W11759439		Shelf Assembly, Freezer (upper)   (Replaces: W11687175)		Appelez-nous	-
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 30.24
5	W11759440		Shelf Assembly, Freezer (lower)   (Replaces: W11687176)		Appelez-nous	-
6	W11759438		Pan, Freezer (lower)   (Replaces: W11636171)		Appelez-nous	-
7	W11164152		Roller, Pan   (Replaces: W10628713)			Immediately	$ 14.17
8	W11175807		Axle, Roller   (Replaces: W10628712)			Immediately	$ 16.11
9	W11758874		Light Strip, Led (grey)   (Replaces: W11557831)		Appelez-nous	-
10	W11758873		Switch, Light   (Replaces: W11647784)		Appelez-nous	-
11	W11759414		Cover, Thermistor   (Replaces: W11635140)		Appelez-nous	-
