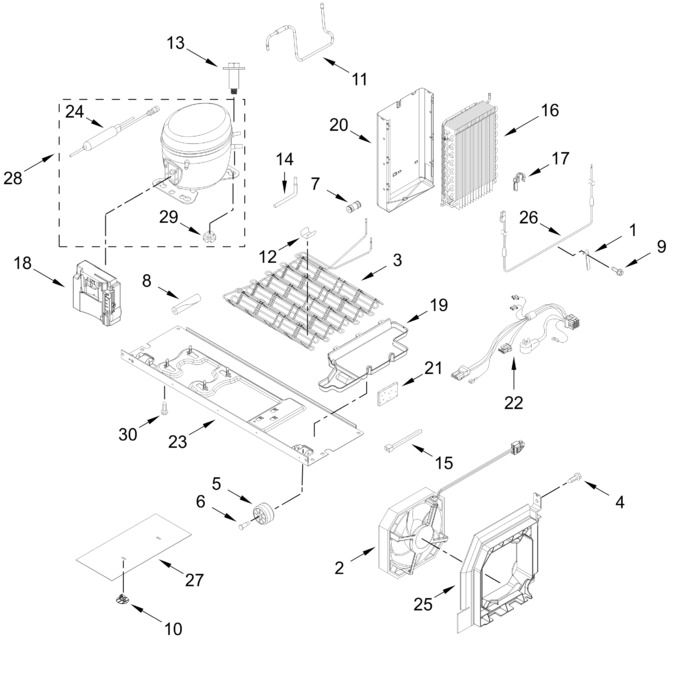

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11566486 | Probe, Heat (Replaces: W11399994) |
|
- | |||||
| 2 | W11758876 | Fan Assembly, Condenser (Replaces: W11696100) |
|
- | |||||
| 3 | W11708426 | Condenser (Replaces: W10240365) |
|
$ 244.07 | |||||
| 4 | W10142255 | Screw |
|
- | |||||
| 5 | 12477102 | Roller, Rear |
|
Immediately | $ 6.64 | ||||
| 6 | W11208384 | Rivet, Roller (Replaces: 981125) |
|
$ 16.86 | |||||
| 7 | WPW10277958 | Connector, Water (Replaces: W10277958) |
|
Immediately | $ 62.61 | ||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 19.19 | ||||
| 9 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 10 | W10815861 | Clip, Bottom Cover |
|
$ 14.22 | |||||
| 11 | W11758878 | Tube, Suction (Replaces: W11708754) |
|
- | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 17.44 | |||||
| 13 | W11417341 | Screw |
|
$ 12.66 | |||||
| 14 | W11043042 | Tube, Process (Replaces: W11489393) |
|
$ 76.77 | |||||
| 15 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.47 | |||||
| 16 | W11546605 | Evaporator (Replaces: W11357917) |
|
Immediately | $ 228.00 | ||||
| 17 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 18 | W11506421 | Assembly, Inverter Box |
|
$ 351.12 | |||||
| 19 | W10714793 | Tray, Evaporator (includes Gasket) |
|
$ 147.90 | |||||
| 20 | W11400741 | Shield, Heat (includes Drain Pan) |
|
- | |||||
| 21 | W11553819 | Sound Insulation (Replaces: 2215468) |
|
Immediately | $ 13.29 | ||||
| 22 | W11758891 | Wire Harness, Unit (Replaces: W11604578) |
|
- | |||||
| 23 | W10680691 | Baseplate |
|
- | |||||
| 24 | W11109499 | Drier (service Drier Without Dye) (Replaces: W10805035) |
|
Immediately | $ 35.21 | ||||
| 25 | W11758877 | Bracket, Condenser Fan (Replaces: W11639129) |
|
- | |||||
| 26 | W11546981 | Heater, Defrost (Replaces: W11355311) |
|
$ 119.95 | |||||
| 27 | W10284726 | Cover, Unit Bottom |
|
$ 115.91 | |||||
| 28 | W11765020 | Compressor (Replaces: W11623187) |
|
- | |||||
| 29 | WPW10169124 | Grommet, Compressor (Replaces: 10835903) |
|
$ 6.80 | |||||
| 30 | 3400524 | Screw (Replaces: W10142287) |
|
$ 11.95 | |||||
| ARI500F2B538D318C1E3390E0716ECE69B7 | (also Order The Following Lokring⢠Parts) |
|
- | ||||||
| ARI3031A698A6B8030D731C976AE04824C1 | (high Pressure Side To Compressor) |
|
- | ||||||
| ARIA203FEA88A0C0545C484B4E1C20B771B | Refrigerant Charge |
|
- | ||||||
| ARID19E8A45FC136F26803FCAC2CCB7051C | 55 Grams (r600a) |
|
- | ||||||
| W11504433 | 6/4 Nr Ms 00 |
|
Immediately | $ 26.46 | |||||
| W11504415 | 8.5/8 Nr Ms 00 |
|
Immediately | $ 23.30 | |||||
| W11504431 | 7/5 Nr Ms 00 |
|
Immediately | $ 24.42 | |||||
| W11504445 | 5/4 Nr Ms 00 |
|
Immediately | $ 26.03 | |||||
| W11504449 | 4/2 Nr Al 00 |
|
Immediately | $ 33.70 | |||||
| W11504447 | 5/1.8 Nr Ms 00 |
|
Immediately | $ 39.51 | |||||
| W11506619 | 8 Nk Ms 00 |
|
Immediately | $ 23.29 | |||||
| W11506623 | 5 Nk Ms 00 |
|
Immediately | $ 19.80 | |||||
| ARI9B437A9AB478C7E2DEB1C4CC29D600EE | (capillary Tube To Evaporator) |
|
- | ||||||
| ARIF479D1A0D17290EA712C859BF2E1C691 | (high Side To Condenser) |
|
- | ||||||
| ARI8F052732CB60E39F6CA094A8168A5109 | (process Tube To Compressor) |
|
- | ||||||
| ARI169E995E2DAC0D79856EDDCD3C362715 | (suction Tube To Compressor) |
|
- | ||||||
| ARI01A2781A3F964B0DAEAA0FEA5F13BC43 | (suction Line To Evaporator) |
|
- | ||||||
| ARI365422773BD6741F2B56A197441A318E | (heat Loop To Drier) |
|
- | ||||||
| ARI5DD2AEE280966FBC792DC043E4E4B750 | (capillary Tube To Drier) |
|
- | ||||||
| ARIDC3909E200058FAFA59ECDE3D8CD23DE | (suction Line To Condenser) |
|
- |
