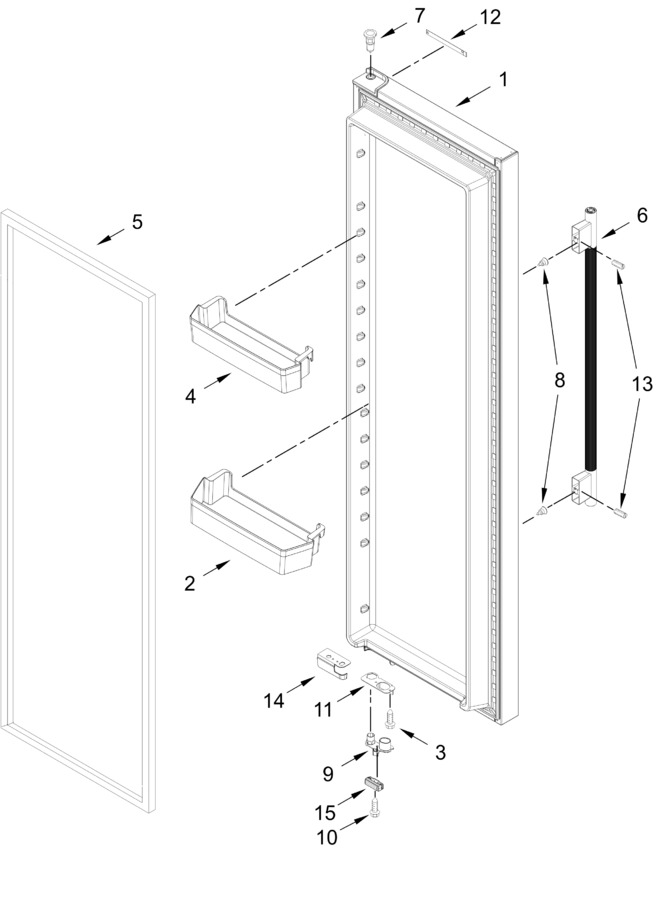

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11788942		Door Assembly, Juniper (includes Door Gasket)   (Replaces: W11775079)		Appelez-nous	-
2	W11759447		Bin, Gallon Door   (Replaces: W11705428)				$ 54.80
3	WPW10296816		Screw   (Replaces: W10296816)				$ 7.25
4	W11759450		Bin, Shallow Door   (Replaces: W11705430)				$ 56.72
5	W10355582		Gasket, Door (grey)   (Replaces: W10249916)			Immediately	$ 307.13
6	W11794190		Handle Assembly (juniper)   (Replaces: W11682896)				$ 243.95
7	WP2182181		Thimble, Top   (Replaces: 2200086)				$ 7.34
8	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.35
9	WPW10257201		Closer, Upper Cam Door (black)   (Replaces: W10257201)				$ 11.64
10	WPW10296804		Screw   (Replaces: W10296804)				$ 10.25
11	W11037957		Bracket, Door Stop   (Replaces: W10888898)				$ 72.22
12	W11759445		Badge   (Replaces: W11688412)			Immediately	$ 45.29
13	W10907991		Screw, Set   (Replaces: W10693137)				$ 6.80
14	W10789145		Cover, Door Stop (black)				$ 17.43
15	W10407187		Bumper, Door (black)				$ 43.51
