Control Panel And Inner Door Parts


Door And Panel Parts


Lower Rack Parts


Pump, Washarm And Motor Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts

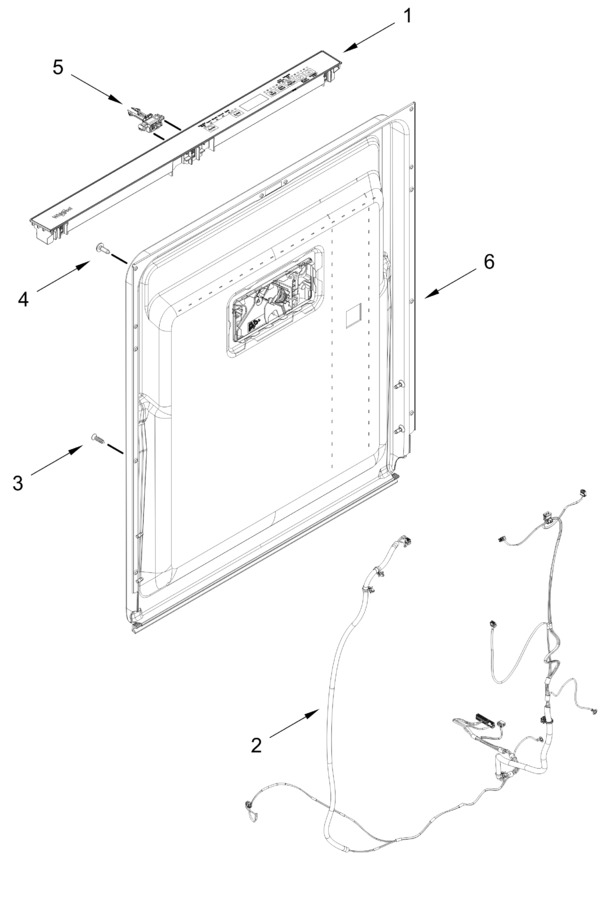

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11817307		Console Assembly (black, Includes Insert)   (Replaces: W11817215)		Appelez-nous	-
2	W11817310		Wiring Harness, Inner Door   (Replaces: W11817219)		Appelez-nous	-
3	W11729111		Screw   (Replaces: W10941960)				$ 13.24
4	WPW10213953		Screw   (Replaces: W10711884)			Immediately	$ 6.80
5	W11817308		Latch Assembly (includes Switch)   (Replaces: W11817216)		Appelez-nous	-
6	W11690648		Inner Door Assembly (includes Soap Dispenser)   (Replaces: W11684843)				$ 352.11

    View Diagram in Separate Window       Print Part List
