SELECT A DIAGRAM
New Model Search:

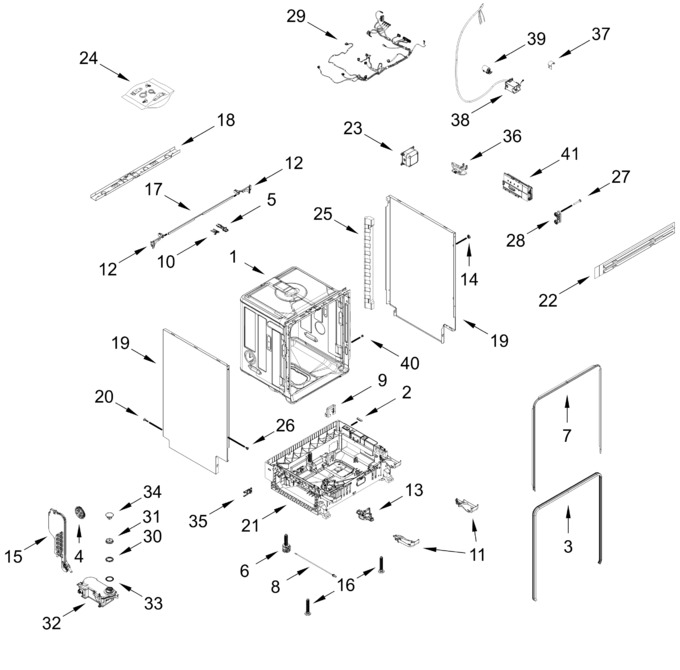

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI25EB4D76DEFE27D36E7F964FE69188B9 | Tub (not Serviced) |
|
- | |||||
| 2 | W11690545 | Pad, Tub Support (Replaces: W11671752) |
|
- | |||||
| 3 | W11690846 | Gasket, Tub (Replaces: W11658880) |
|
Immediately | $ 101.20 | ||||
| 4 | W11693614 | Nut, Air Break (Replaces: W11236521) |
|
- | |||||
| 5 | W11693599 | Strike, Latch (Replaces: W11314779) |
|
Immediately | $ 25.29 | ||||
| 6 | W11696091 | Assembly, Leveling Leg (rear) (Replaces: W11316238) |
|
Immediately | $ 25.70 | ||||
| 7 | W11693589 | Retainer, Tub Gasket (Replaces: W11554391) |
|
Immediately | $ 75.65 | ||||
| 8 | W11696093 | Rod, Foot Adjustment (rear) (Replaces: W11325471) |
|
Immediately | $ 50.09 | ||||
| 9 | W11690570 | Holder, Damper (Replaces: W11668893) |
|
- | |||||
| 10 | W11693590 | Cover, Door Opening (Replaces: W11317043) |
|
Immediately | $ 26.09 | ||||
| 11 | W11817344 | Channel, Overflow (left) (Replaces: W11817225) |
|
- | |||||
| 12 | W11697221 | Cover, Tub Corner (left) (Replaces: W11316692) |
|
- | |||||
| 13 | W11690660 | Float Switch (Replaces: W11602936) |
|
Immediately | $ 70.87 | ||||
| 14 | W11697220 | Plug, Tub (Replaces: W11321022) |
|
$ 12.88 | |||||
| 15 | W11693838 | Air Break (Replaces: W11568183) |
|
$ 93.20 | |||||
| 16 | W11696092 | Leg, Leveling (front) (Replaces: W11325130) |
|
Immediately | $ 15.58 | ||||
| 17 | W11697223 | Cover, Top (Replaces: W11317036) |
|
- | |||||
| 18 | W11697225 | Crossbar, Front Frame (Replaces: W11306174) |
|
- | |||||
| 19 | W11701674 | Side Panel (left) (Replaces: W11355600) |
|
$ 148.94 | |||||
| 20 | W11697243 | Screw (Replaces: W10986499) |
|
- | |||||
| 21 | W11690567 | Assembly, Base (Replaces: W11688951) |
|
$ 197.21 | |||||
| 22 | W11817312 | Kit, Side Cover Installation (Replaces: W11817220) |
|
- | |||||
| 23 | W11695958 | Assembly, Junction Box (Replaces: W11643567) |
|
Immediately | $ 131.57 | ||||
| 24 | W11696038 | Miscellaneous Parts Bag |
|
$ 149.63 | |||||
| 25 | W11697245 | Spacer, Side Panel (Replaces: W11525808) |
|
- | |||||
| 26 | W11697248 | Screw (Replaces: W11350847) |
|
$ 13.82 | |||||
| 27 | W11697250 | Screw (Replaces: W10941972) |
|
- | |||||
| 28 | W11690618 | Tub Mount, Upper Rack (Replaces: W11345595) |
|
$ 21.84 | |||||
| 29 | W11693640 | Wiring Harness, Main (Replaces: W11609315) |
|
$ 123.83 | |||||
| 30 | W11698540 | Nut, Softner (Replaces: W11227921) |
|
- | |||||
| 31 | W11698541 | Cap, Salt (Replaces: W11227934) |
|
- | |||||
| 32 | W11698542 | Softener, Water (Replaces: W11546882) |
|
- | |||||
| 33 | W11698543 | Seal, Softener (Replaces: W11224085) |
|
- | |||||
| 34 | W11698545 | Funnel, Salt (Replaces: W11509486) |
|
$ 19.96 | |||||
| 35 | W11817342 | Plate, In/out Hoses (Replaces: W11817223) |
|
- | |||||
| 36 | W11693747 | Jumper, Rfi To Control (Replaces: W11545951) |
|
- | |||||
| 37 | W11698572 | Spring, Grounding (Replaces: W10943118) |
|
- | |||||
| 38 | W11696044 | Power Cord Assembly (Replaces: W11578108) |
|
Immediately | $ 180.68 | ||||
| 39 | W11693746 | Filter, Rfi (Replaces: W11418782) |
|
$ 67.02 | |||||
| 40 | W11696094 | Button, Tub (Replaces: W11656505) |
|
- | |||||
| 41 | W11817309 | Control, Electronic (Replaces: W11817217) |
|
- | |||||
| W11701674 | Side Panel (right) (Replaces: W11355598) |
|
$ 148.94 | ||||||
| W11817343 | Channel, Overflow (right) (Replaces: W11817224) |
|
- | ||||||
| W11697222 | Cover, Tub Corner (right) (Replaces: W11316688) |
|
- |
