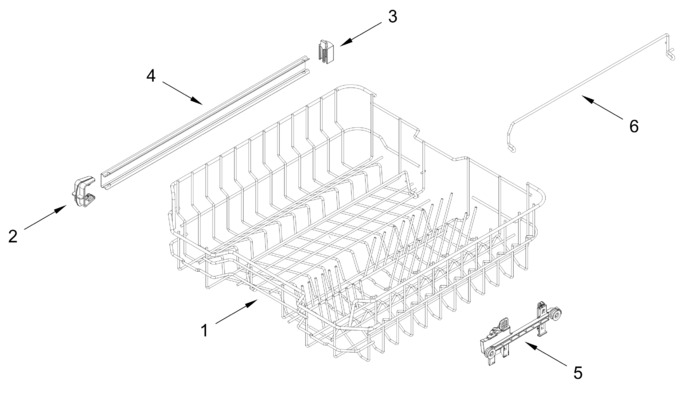

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11697499		Dishrack, Upper   (Replaces: W11521613)				$ 150.89
2	W11697417		Track Stop, Front   (Replaces: W11315114)		Appelez-nous	-
3	W11697418		Track Stop, Rear   (Replaces: W11315116)				$ 13.46
4	W11697497		Track, Dishrack   (Replaces: W10884045)			Immediately	$ 132.12
5	W11693600		Adjustment Assembly (left)   (Replaces: W11562047)				$ 22.76
6	W11690622		Support, Tine Row   (Replaces: W11356045)		Appelez-nous	-
	W11693601		Adjustment Assembly (right)   (Replaces: W11562045)				$ 23.92
