Control Panel And Inner Door Parts


Door And Panel Parts


Lower Rack Parts

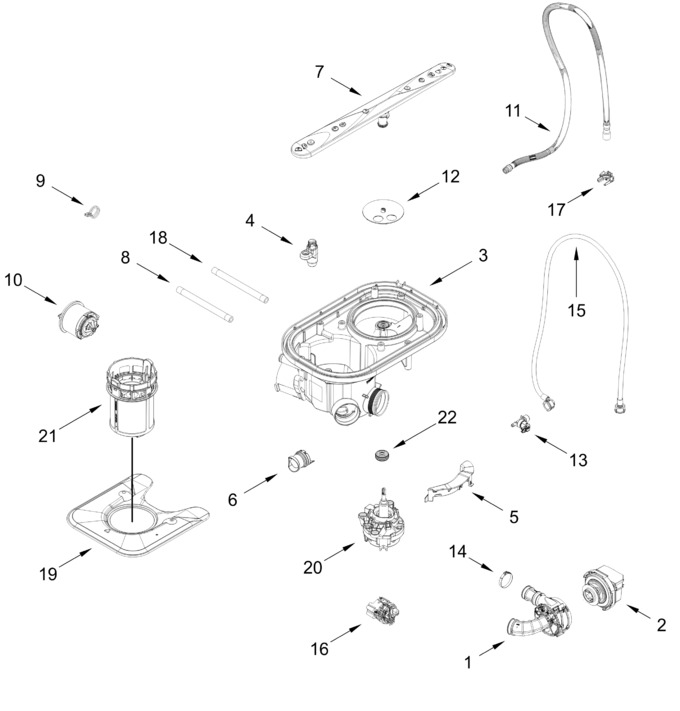

Pump, Washarm And Motor Parts


Tub And Frame Parts


Upper Rack And Track Parts


Upper Wash And Rinse Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11690626		Heater, Pump   (Replaces: W11630727)			Immediately	$ 258.28
2	W11690628		Motor, Pump   (Replaces: W11630725)			Immediately	$ 375.78
3	W11690640		Sump (includes Seal)   (Replaces: W11560668)				$ 225.50
4	W11690638		Drain Vent Assembly   (Replaces: W11559823)				$ 65.85
5	W11690639		Diffuser, Inlet   (Replaces: W11560657)				$ 24.51
6	W11693619		Check Valve, Drain   (Replaces: W11560834)				$ 17.52
7	W11698607		Wash Arm Assembly   (Replaces: W11528067)		Appelez-nous	-
8	W11698605		Hose, Pump Inlet   (Replaces: W11008962)				$ 78.03
9	W11817384		Clamp, Hose   (Replaces: W11817232)		Appelez-nous	-
10	W11693603		Motor, Drain   (Replaces: W11631981)			Immediately	$ 133.07
11	W11693602		Hose, Drain   (Replaces: W11586395)				$ 110.72
12	W11693604		Disc, Diverter   (Replaces: W11175586)		Appelez-nous	-
13	W11693612		Fill Valve Assembly   (Replaces: W11545826)				$ 88.34
14	W11817383		Clamp, Hose   (Replaces: W11817229)		Appelez-nous	-
15	W11690631		Hose, Inlet   (Replaces: W11457583)				$ 92.01
16	W11817345		Indicator, Optical Wash   (Replaces: W11817226)		Appelez-nous	-
17	W11693621		Clip, Hose   (Replaces: W11626817)		Appelez-nous	-
18	W11698516		Hose, Inlet   (Replaces: W11008964)		Appelez-nous	-
19	W11698630		Grate   (Replaces: W11445183)		Appelez-nous	-
20	W11693837		Diverter Valve Motor   (Replaces: W11543924)			Immediately	$ 103.90
21	W11698610		Filter   (Replaces: W11559846)		Appelez-nous	-
22	W11817346		Seal, Diverter Valve   (Replaces: W11817227)		Appelez-nous	-
