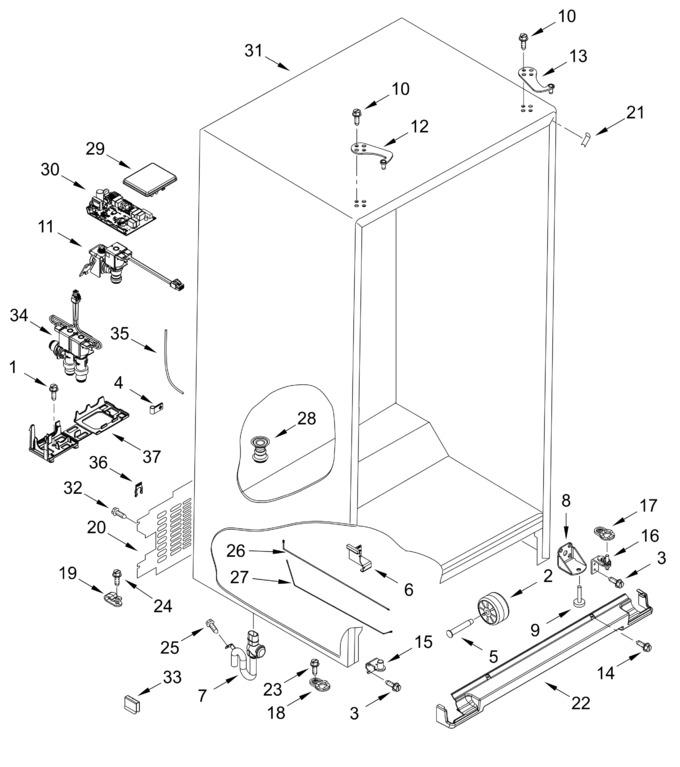

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 20.00 | |||||
| 2 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 3 | WPW10297485 | Screw (Replaces: W10297485) |
|
$ 7.56 | |||||
| 4 | WP488366 | Clamp, Tube (Replaces: 489385) |
|
$ 10.73 | |||||
| 5 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.11 | ||||
| 6 | W10499011 | Bracket, Wire Mounting |
|
Immediately | $ 62.69 | ||||
| 7 | W11293072 | Tube, Drain |
|
$ 31.14 | |||||
| 8 | W11266052 | Bracket, Foot (Replaces: W10900758) |
|
$ 59.68 | |||||
| 9 | WPW10141622 | Brake, Foot (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 10 | W11579735 | Screw, Top Hinge (Replaces: W10290781) |
|
Immediately | $ 13.26 | ||||
| 11 | W11758895 | Single Water Valve (Replaces: W11454773) |
|
Immediately | $ 92.60 | ||||
| 12 | W11590581 | Hinge, Freezer Top (grey) (Replaces: W10901054) |
|
Immediately | $ 22.44 | ||||
| 13 | W11409290 | Hinge, Refrigerator Top (grey) (Replaces: W10901049) |
|
Immediately | $ 63.43 | ||||
| 14 | WPW10308489 | Screw (grey) (Replaces: W10308489) |
|
Immediately | $ 7.36 | ||||
| 15 | W11293374 | Hinge, Freezer Bottom (grey) (Replaces: W11126848) |
|
$ 65.99 | |||||
| 16 | W11292872 | Hinge, Refrigerator Bottom (grey) (Replaces: W11084346) |
|
$ 64.88 | |||||
| 17 | W11311687 | Closer, Refrigerator Door (grey) (Replaces: W10877804) |
|
$ 12.66 | |||||
| 18 | W10876191 | Closer, Freezer Door (grey) (Replaces: W10770893) |
|
$ 16.18 | |||||
| 19 | W11234470 | Clamp, Plastic |
|
$ 19.91 | |||||
| 20 | W11758892 | Cover, Unit (Replaces: W11654098) |
|
- | |||||
| 21 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 7.26 | |||||
| 22 | WPW10713153 | Grille, Grey (Replaces: W10713153) |
|
Immediately | $ 121.97 | ||||
| 23 | WP489483 | Screw (Replaces: W10142234) |
|
$ 10.27 | |||||
| 24 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 25 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.54 | ||||
| 26 | W11759314 | Tube, Filter Inlet (Replaces: W11618931) |
|
$ 85.01 | |||||
| 27 | W11759315 | Tube, Filter Outlet (Replaces: W11618945) |
|
$ 82.14 | |||||
| 28 | W10370680 | Fitting, Drain |
|
$ 34.05 | |||||
| 29 | W11226688 | Lid, Hv Box (Replaces: 12957702) |
|
$ 76.64 | |||||
| 30 | W11760044 | Control, Electronic (Replaces: W11705242) |
|
$ 257.14 | |||||
| 31 | ARI8576EDE2D568F203CA1E28095884C084 | Cabinet (not A Serviceable Part) |
|
- | |||||
| 32 | WP488488 | Screw (Replaces: 489290) |
|
$ 7.67 | |||||
| 33 | W11545866 | Clip, Axle Retainer (Replaces: 2223388) |
|
$ 10.69 | |||||
| 34 | W11758894 | Valve, Dual Water (Replaces: W11454780) |
|
$ 92.60 | |||||
| 35 | WPW10238092 | Tube, Water (Replaces: W10691732) |
|
Immediately | $ 119.02 | ||||
| 36 | W11676611 | Locking Ring (1/4) (Replaces: W11175632) |
|
$ 13.40 | |||||
| 37 | W11759313 | Bracket, Dual Water Valve (Replaces: W11713545) |
|
- | |||||
| W11678575 | Locking Ring (5/16) (Replaces: W11175631) |
|
$ 13.41 |
