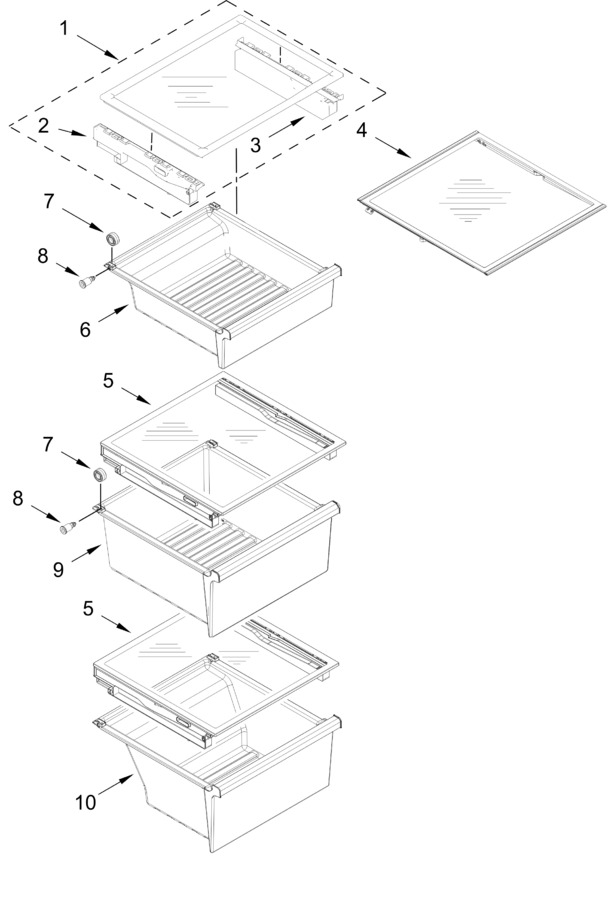

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10508311		Shelf, Snack Pan   (Replaces: W10508311)				$ 187.95
2	W11766461		Track, Snack Pan (left Side)   (Replaces: W10247942)				$ 31.99
3	W11678966		Track, Snack Pan (right Side)   (Replaces: W10247940)				$ 20.41
4	W11130200		Shelf Assembly   (Replaces: W10773885)				$ 211.76
5	WPW10508334		Cover Assembly, Pan   (Replaces: W10508334)				$ 159.12
6	W11551764		Pan, Snack   (Replaces: W10256846)				$ 92.35
7	W11164152		Roller, Pan   (Replaces: W10628713)			Immediately	$ 14.17
8	W11175807		Axle, Roller   (Replaces: W10628712)			Immediately	$ 16.11
9	W11789832		Pan, Crisper   (Replaces: W11740248)		Appelez-nous	-
10	W11789833		Pan, Meat   (Replaces: W10256854)				$ 162.95
