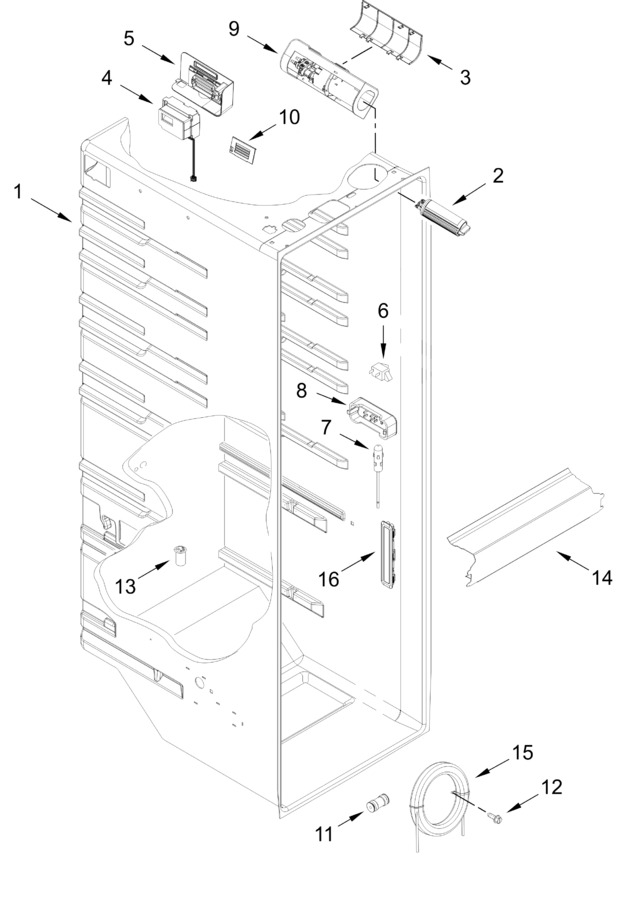

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI1BA464D72C84DA7297AB1B09D16F5BB3		Liner (not A Serviceable Part)		Appelez-nous	-
2	EDRARXD1B		Water Filter   (Replaces: W11536439)			Immediately	$ 49.99
3	W11759993		Water Filter Housing Cover (lower)   (Replaces: W11611401)				$ 73.00
4	W11758893		Damper Assembly   (Replaces: W11649826)				$ 129.77
5	W11760005		Cover, Air Diffuser   (Replaces: W11626349)		Appelez-nous	-
6	W11384469		Switch, Rocker   (Replaces: W10847853)			Immediately	$ 35.18
7	W11724692		Thermistor   (Replaces: W10280385)			Immediately	$ 30.24
8	W11760006		Cover, Thermistor   (Replaces: W11716207)		Appelez-nous	-
9	W11759995		Housing, Water Filter   (Replaces: W11645308)				$ 235.87
10	WPW10457603		Cover, Air Filter   (Replaces: W10457603)				$ 73.93
11	WPW10271543		Connector, Water Tube   (Replaces: W10271543)			Immediately	$ 31.89
12	W10141518		Screw				$ 8.59
13	WP2210509		Body, Valve Tube   (Replaces: 2171931)				$ 89.24
14	W11760004		Lens, Rc Light (white)   (Replaces: W11668803)		Appelez-nous	-
15	W11802492		Tubing, Water Reservoir   (Replaces: W11759888)				$ 80.02
16	W11759675		Strip, Led (white)   (Replaces: W11621710)		Appelez-nous	-
