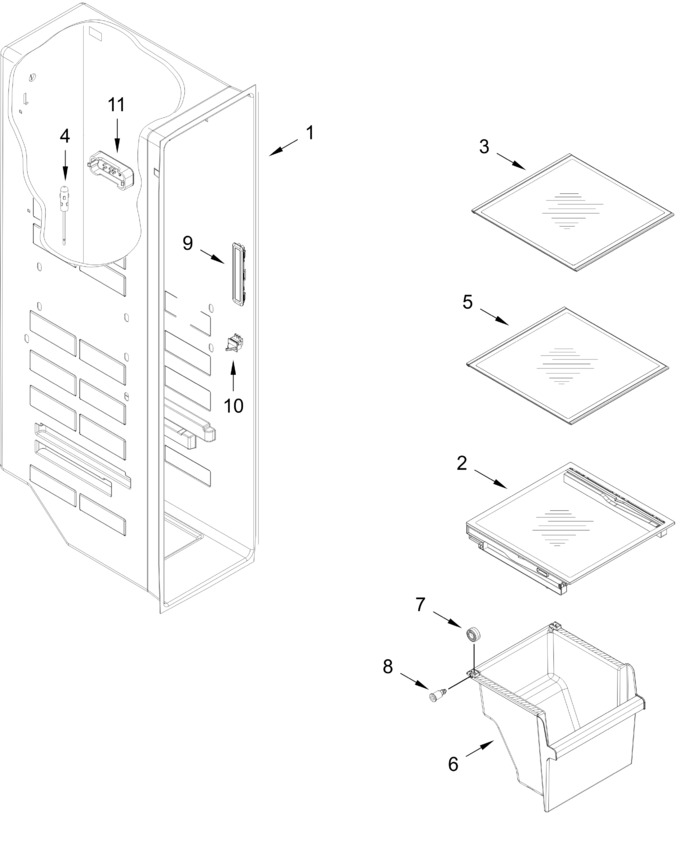

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARID4B24459AD3CE840514D8AC6D2EFEC61		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10836801		Cover Assembly, Pan   (Replaces: W10527863)				$ 192.37
3	W11130202		Shelf, Glass Upper   (Replaces: W10773886)				$ 235.29
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 33.60
5	W11130203		Shelf, Glass Lower   (Replaces: W10773887)				$ 235.29
6	W11760007		Pan, Freezer   (Replaces: W11740268)		Appelez-nous	-
7	W11164152		Roller, Pan   (Replaces: W10628713)			Immediately	$ 15.74
8	W11175807		Axle, Roller   (Replaces: W10628712)			Immediately	$ 17.90
9	W11759675		Strip, Led (white)   (Replaces: W11621710)		Appelez-nous	-
10	W11396033		Switch, Light   (Replaces: W10847849)			Immediately	$ 37.30
11	W11760006		Cover, Thermistor   (Replaces: W11716207)		Appelez-nous	-
