SELECT A DIAGRAM

Air Flow Parts


Cabinet Parts


Dispenser Parts


Freezer Door Parts


Freezer Liner Parts


Motor And Ice Maker Parts


Optional Parts (not Included)


Refrigerator Door Parts


Refrigerator Liner Parts


Refrigerator Shelf Parts


Unit Parts

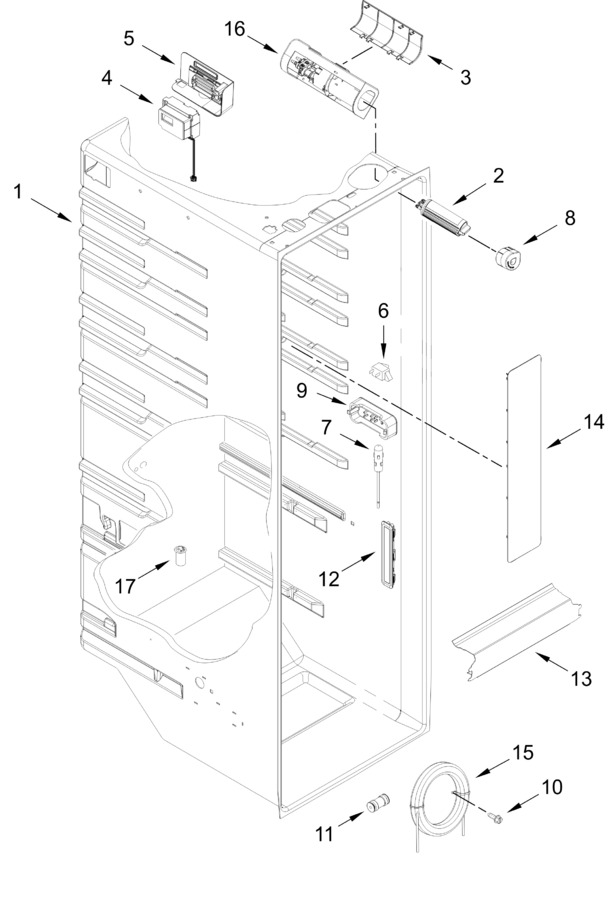

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI1BA464D72C84DA7297AB1B09D16F5BB3		Liner (not A Serviceable Part)		Appelez-nous	-
2	EDRARXD1B		Water Filter   (Replaces: W11536439)			Immediately	$ 49.99
3	W11760114		Cover, Water Filter Housing (blue)   (Replaces: W11633632)		Appelez-nous	-
4	W11758893		Damper Assembly   (Replaces: W11649826)				$ 129.77
5	W11760592		Cover, Air Diffuser (blue)   (Replaces: W11638561)		Appelez-nous	-
6	W11760068		Switch, Rocker   (Replaces: W11647776)		Appelez-nous	-
7	W11724692		Thermistor   (Replaces: W10280385)			Immediately	$ 30.24
8	W11760115		Plug, Water Filter Housing (blue)   (Replaces: W11633631)		Appelez-nous	-
9	W11760540		Cover, Thermistor (blue)   (Replaces: W11635141)		Appelez-nous	-
10	W10141518		Screw				$ 8.59
11	WPW10271543		Connector, Water Tube   (Replaces: W10271543)			Immediately	$ 31.89
12	W11760066		Light Strip, Led (blue)   (Replaces: W11643889)		Appelez-nous	-
13	W11760539		Lens, Rc Light (blue)   (Replaces: W11668805)		Appelez-nous	-
14	W11760593		Tower Assembly, Light   (Replaces: W11657880)		Appelez-nous	-
15	W11802492		Tubing, Water Reservoir   (Replaces: W11759888)				$ 80.02
16	W11760117		Housing, Water Filter (blue)   (Replaces: W11645310)				$ 235.87
17	WP2210509		Body, Valve Tube   (Replaces: 2171931)				$ 89.24

    View Diagram in Separate Window       Print Part List
