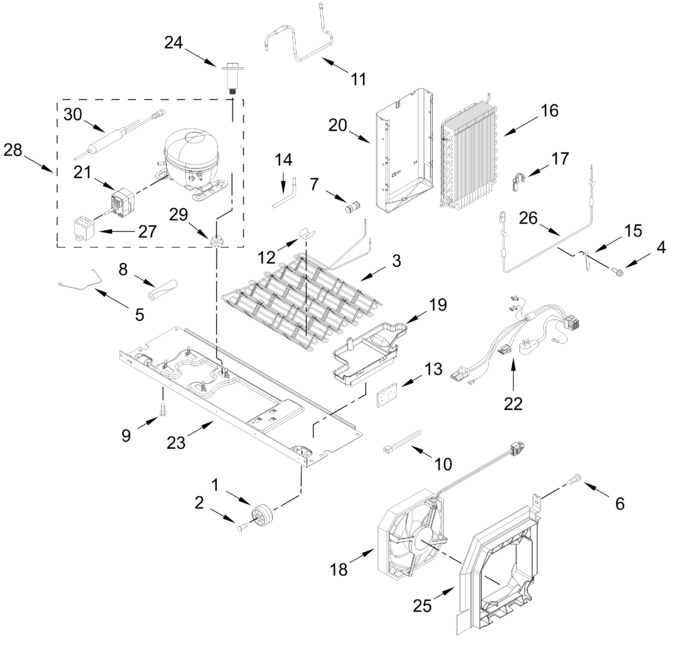

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12477102		Roller, Rear			Immediately	$ 6.64
2	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.11
3	W11708426		Condenser   (Replaces: W10240365)				$ 244.07
4	WP489478		Screw   (Replaces: 489478)				$ 7.36
5	W11577799		Strap, Bale   (Replaces: W11495051)		Appelez-nous	-
6	W10142255		Screw		Appelez-nous	-
7	WPW10277958		Connector, Water   (Replaces: W10277958)			Immediately	$ 62.61
8	W11751592		Sleeve   (Replaces: W10303521)			Immediately	$ 19.19
9	3400524		Screw   (Replaces: W10142287)				$ 11.95
10	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 7.47
11	W11567939		Tube, Suction   (Replaces: W11506457)		Appelez-nous	-
12	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 17.44
13	W11553819		Sound Insulation   (Replaces: 2215468)			Immediately	$ 13.29
14	2325479		Tube, Process		Appelez-nous	-
15	W11566486		Probe, Heat   (Replaces: W11399994)		Appelez-nous	-
16	W11546605		Evaporator   (Replaces: W11357917)			Immediately	$ 228.00
17	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
18	W11758876		Fan Assembly, Condenser   (Replaces: W11696100)		Appelez-nous	-
19	W11823828		Tray, Evaporator (includes Gasket)   (Replaces: W11779918)		Appelez-nous	-
20	W11400741		Shield, Heat (includes Drain Pan)		Appelez-nous	-
21	W11547180		Start Device, Combination (start Relay And Overload)   (Replaces: W11359381)			Immediately	$ 41.31
22	W11759676		Wire Assembly, Unit   (Replaces: W11618165)				$ 136.39
23	W10680691		Baseplate		Appelez-nous	-
24	W11417341		Screw				$ 12.66
25	W11758877		Bracket, Condenser Fan   (Replaces: W11639129)		Appelez-nous	-
26	W11546981		Heater, Defrost   (Replaces: W11355311)				$ 119.95
27	WPW10662129		Capacitor   (Replaces: W10590083)			Immediately	$ 52.97
28	W11580057		Compressor   (Replaces: W11663223)			Immediately	$ 360.14
29	W11678963		Compressor Grommet   (Replaces: W10806346)				$ 7.66
30	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 35.21
	ARI5DD2AEE280966FBC792DC043E4E4B750		(capillary Tube To Drier)		Appelez-nous	-
	W11504448		5/1.8 Nr Al 00			Immediately	$ 43.72
	ARI3031A698A6B8030D731C976AE04824C1		(high Pressure Side To Compressor)		Appelez-nous	-
	ARI9B437A9AB478C7E2DEB1C4CC29D600EE		(capillary Tube To Evaporator)		Appelez-nous	-
	ARIF479D1A0D17290EA712C859BF2E1C691		(high Side To Condenser)		Appelez-nous	-
	ARI8F052732CB60E39F6CA094A8168A5109		(process Tube To Compressor)		Appelez-nous	-
	ARI169E995E2DAC0D79856EDDCD3C362715		(suction Tube To Compressor)		Appelez-nous	-
	ARI01A2781A3F964B0DAEAA0FEA5F13BC43		(suction Line To Evaporator)		Appelez-nous	-
	ARIA203FEA88A0C0545C484B4E1C20B771B		Refrigerant Charge		Appelez-nous	-
	ARI500F2B538D318C1E3390E0716ECE69B7		(also Order The Following Lokring™ Parts)		Appelez-nous	-
	ARI365422773BD6741F2B56A197441A318E		(heat Loop To Drier)		Appelez-nous	-
	W11506620		8 Nk Al 00			Immediately	$ 28.89
	ARID19E8A45FC136F26803FCAC2CCB7051C		55 Grams (r600a)		Appelez-nous	-
	ARIDC3909E200058FAFA59ECDE3D8CD23DE		(suction Line To Condenser)		Appelez-nous	-
	W11504433		6/4 Nr Ms 00			Immediately	$ 26.46
	W11504415		8.5/8 Nr Ms 00			Immediately	$ 23.30
	W11504431		7/5 Nr Ms 00			Immediately	$ 24.42
	W11504445		5/4 Nr Ms 00			Immediately	$ 26.03
	W11504447		5/1.8 Nr Ms 00			Immediately	$ 39.51
	W11506619		8 Nk Ms 00			Immediately	$ 23.29
	W11506623		5 Nk Ms 00			Immediately	$ 19.80
