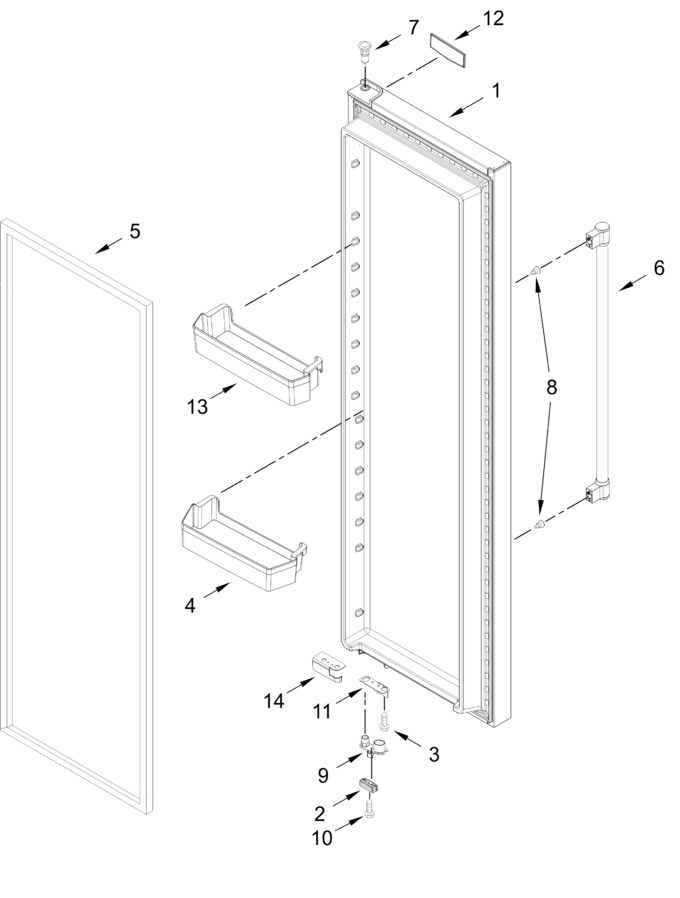

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11766211 | Door Assembly (stainless, Includes Door Gasket) (Replaces: W11666815) |
|
$ 337.73 | |||||
| 2 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 21.02 | ||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 4 | W11768488 | Door Bin, Gallon (Replaces: W11758669) |
|
- | |||||
| 5 | W10355582 | Gasket, Door (grey) (Replaces: W10249916) |
|
Immediately | $ 307.13 | ||||
| 6 | W11720842 | Handle Assembly (stainless) (Replaces: W11657843) |
|
$ 161.49 | |||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 7.34 | |||||
| 8 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 9 | WPW10257203 | Closer, Upper Cam Door (grey) (Replaces: W10257203) |
|
$ 11.66 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 11 | W11037957 | Bracket, Door Stop (Replaces: W10367462) |
|
$ 72.22 | |||||
| 12 | W11648754 | Badge (Replaces: W11628148) |
|
Immediately | $ 38.16 | ||||
| 13 | W11768487 | Door Bin, Shallow (Replaces: W11758670) |
|
$ 35.23 | |||||
| 14 | W10789144 | Cover, Door Stop (Replaces: W10248013) |
|
$ 17.44 |
