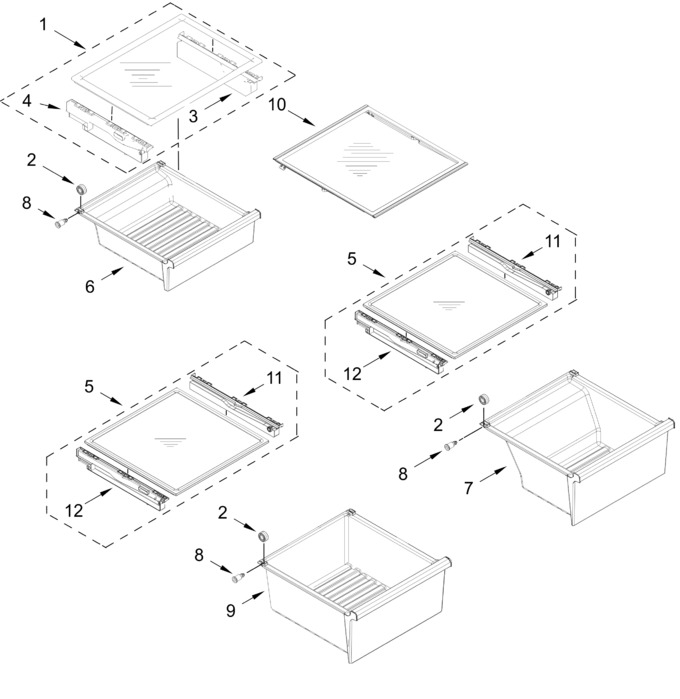

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11759378		Cover Assembly, Snack Pan   (Replaces: W11637394)		Appelez-nous	-
2	W11164152		Roller, Pan   (Replaces: W10628713)			Immediately	$ 14.17
3	W11759379		Track, Snack Pan (right Side)   (Replaces: W11630637)		Appelez-nous	-
4	W11759380		Track, Snack Pan (left Side)   (Replaces: W11630639)		Appelez-nous	-
5	W11759400		Cover Assembly, Pan   (Replaces: W11636179)		Appelez-nous	-
6	W11761006		Pan Assembly, Snack   (Replaces: W11636168)				$ 90.65
7	W11761008		Pan Assembly, Meat   (Replaces: W11636170)				$ 76.55
8	W11175807		Axle, Roller   (Replaces: W10628712)			Immediately	$ 16.11
9	W11761007		Pan Assembly, Crisper   (Replaces: W11636169)				$ 162.95
10	W11759405		Shelf Assembly, Glass   (Replaces: W11687177)		Appelez-nous	-
11	W11759403		Track, Pan (right Side)   (Replaces: W11629456)		Appelez-nous	-
12	W11759404		Track, Pan (left Side)   (Replaces: W11629457)		Appelez-nous	-
