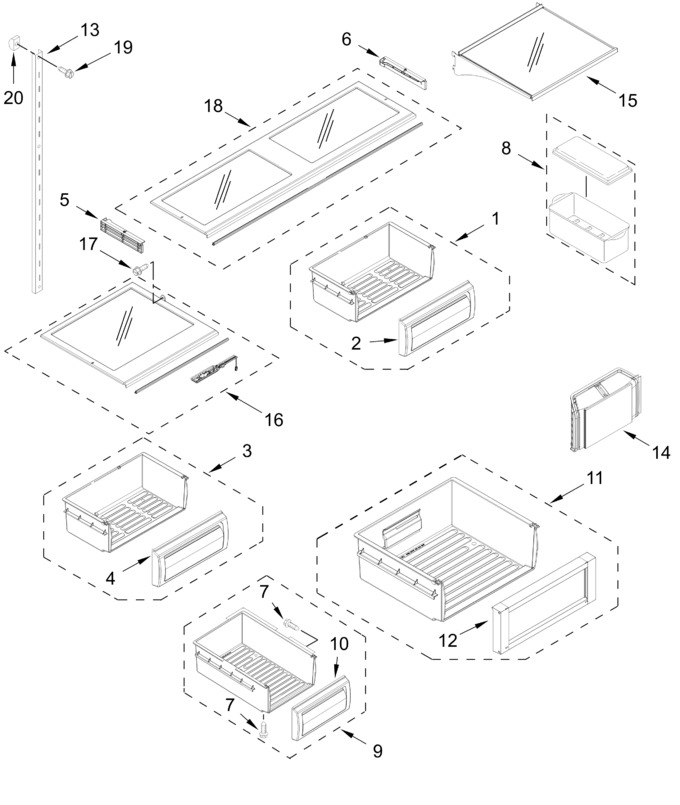

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10529577		Pan Assembly, Crisper				$ 383.88
2	W10529562		Front Assembly, Crisper Pan		Appelez-nous	-
3	W10529581		Pan Assembly, Deli			Immediately	$ 408.89
4	W10529566		Front Assembly, Deli Pan				$ 308.77
5	W10569854		Support, Crisper Cover (grey, Left Hand)				$ 84.14
6	W10569853		Support, Cripser Cover (grey, Right Hand)		Appelez-nous	-
7	WP488787		Screw   (Replaces: 488886)				$ 11.26
8	WP2221071A		Egg Bin Assembly   (Replaces: 2221071)				$ 25.79
9	W10600690		Pan Assembly, Ice		Appelez-nous	-
10	W10600687		Front Assembly, Ice Pan		Appelez-nous	-
11	W10609697		Pan Assembly, Freezer			Immediately	$ 321.00
12	W10609699		Front Assembly, Freezer Pan		Appelez-nous	-
13	W10569878		Ladder, Shelf (grey)		Appelez-nous	-
14	W11462816		Produce Preserver   (Replaces: W10826105)			Immediately	$ 17.15
15	W10568582		Shelf Assembly, Fixed				$ 384.37
16	WPW10578291		Cover, Deli Bin   (Replaces: W10578291)				$ 314.81
17	W10759522		Screw (stainless)   (Replaces: 488568)				$ 8.24
18	W11430644		Cover, Crisper   (Replaces: W10578296)				$ 364.70
19	W10808291		Screw		Appelez-nous	-
20	520965		Support, Ladder				$ 31.35
	W11318240		Ladder, Shelf (grey)   (Replaces: W10633564)		Appelez-nous	-
	ARI4F1F6016FC9F3F2353C0CC7C67B292BD		Center		Appelez-nous	-
	ARIC142A73B77F3C3DF40777AF2651F4915		Side		Appelez-nous	-
