SELECT A DIAGRAM

Diagram for Cabinet Parts
Cabinet Parts

Diagram for Cabinet Trim Parts
Cabinet Trim Parts

Diagram for Freezer Door And Basket Parts
Freezer Door And Basket Parts

Diagram for Freezer Liner And Icemaker Parts
Freezer Liner And Icemaker Parts

Diagram for Lower Unit And Tube Parts
Lower Unit And Tube Parts

No Diagram Image Available
Optional Parts

Diagram for Refrigerator Door Parts
Refrigerator Door Parts

Diagram for Refrigerator Liner Parts
Refrigerator Liner Parts

Diagram for Shelf Parts
Shelf Parts

Diagram for Top Grille And Unit Cover Parts
Top Grille And Unit Cover Parts

Diagram for Upper Unit Parts
Upper Unit Parts


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11788271 Freezer Door Assembly (includes Door Gasket) Appelez-nous -
2 W10600711 Divider, Basket Appelez-nous -
3 W10665412 Mat, Basket Appelez-nous -
4 W10761334 Screw Special Order $ 11.70

5 WP488234 Screw   (Replaces: W10135792) Special Order $ 6.37

6 W10774208 Basket Assembly, Freezer Special Order $ 398.63

7 W11826097 Door Trim, Side   (Replaces: W11788330) Appelez-nous -
8 W11826096 Door Trim,. Top/bottom   (Replaces: W11788333) Appelez-nous -
9 W11625085 Gasket, Door (grey)   (Replaces: W10609687) In-Stock Immediately $ 287.44

10 W10771111 Nut In-Stock Immediately $ 18.23

11 W10109030 Screw Special Order $ 13.82

12 W11748041 Screw (stainless)   (Replaces: W11672062) Appelez-nous -
13 W10001190 Washer Special Order $ 7.92

14 W11826105 Panel Mounting Bracket (fc)   (Replaces: W11788321) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

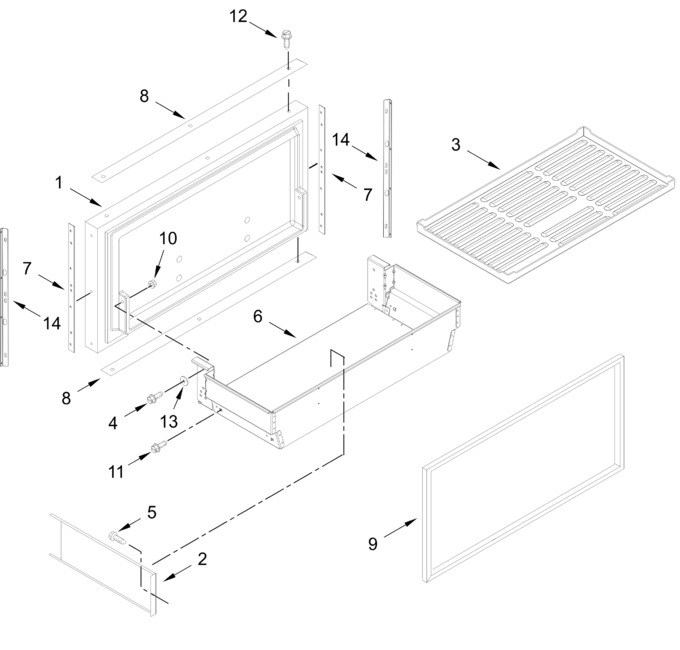

Diagram for KBFN536TPA00
