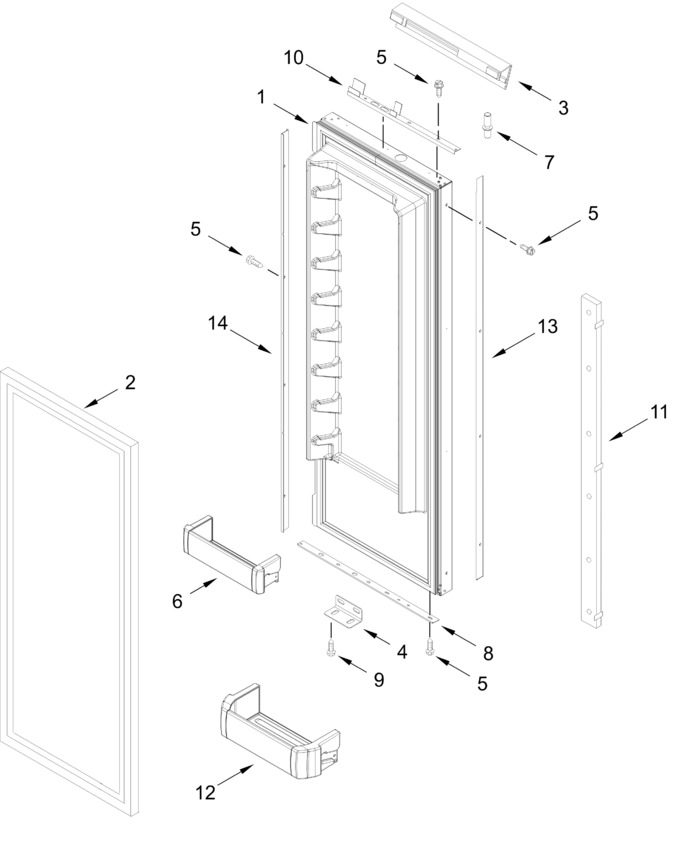

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11788270		Left Door Assembly (includes Door Gasket)		Appelez-nous	-
2	W10871887		Gasket, Door (grey)   (Replaces: W10629728)				$ 289.24
3	W11826095		Door Cover, Top (left)   (Replaces: W11788329)		Appelez-nous	-
4	W11826030		Panel Mounting Bracket   (Replaces: W11788355)		Appelez-nous	-
5	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
6	W10529449		Bin, Door (shallow)				$ 246.66
7	W10234194		Pin, Top Door				$ 15.89
8	W11826093		Door Trim, Bottom (left Hand)   (Replaces: W11788332)		Appelez-nous	-
9	WPW10142233		Screw   (Replaces: W10142233)				$ 8.04
10	W11826092		Door Trim, Top (left Hand)   (Replaces: W11788326)		Appelez-nous	-
11	W11590867		Mullion Assembly				$ 137.57
12	W10578289		Bin, Door (gallon)				$ 273.12
13	W11826094		Door Trim, Handle Side (left)   (Replaces: W11788340)		Appelez-nous	-
14	W11826034		Door Trim, Hinge Side   (Replaces: W11788335)		Appelez-nous	-
	W11826032		Door Trim, Bottom (right Hand)   (Replaces: W11788328)		Appelez-nous	-
	W11826029		Door Trim, Top (right Hand)   (Replaces: W11788331)		Appelez-nous	-
	W11788269		Right Door Assembly (includes Door Gasket)		Appelez-nous	-
	W11826033		Door Trim, Handle Side (right)   (Replaces: W11788342)		Appelez-nous	-
	W11826036		Door Cover, Top (right)   (Replaces: W11788325)		Appelez-nous	-
