Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 11.87

2 W11735285 Cover, Upper Unit   (Replaces: W11708444) In-Stock Immediately $ 205.97

3 W11729400 Panel, Unit Back   (Replaces: W11708420) Appelez-nous -
4 W11435372 Cover, Unit Front In-Stock Immediately $ 47.65

5 W10784922 Screw (black) Appelez-nous -
6 W11830697 Unit Air Divider   (Replaces: W10645088) Appelez-nous -
7 W11244166 Insulation, Unit Back Panel Special Order $ 78.99

8 W10645113 Gasket, Unit Cover Appelez-nous -
9 W11826099 Installation Bracket Assembly (left Hand)   (Replaces: W11797022) Appelez-nous -
10 W11826098 Installation Bracket Assembly (right Hand)   (Replaces: W11797021) Appelez-nous -
11 W11356980 Cover, Safety Switch Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

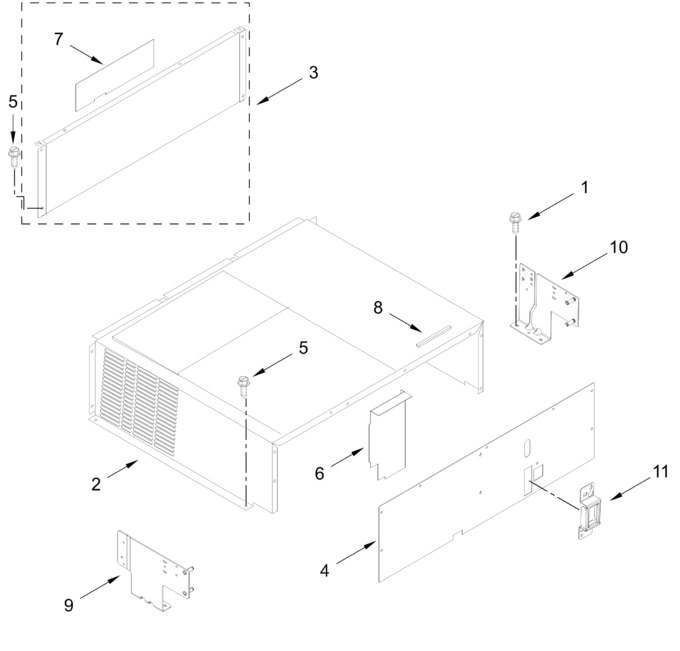

Diagram for KBFN536TPA00
