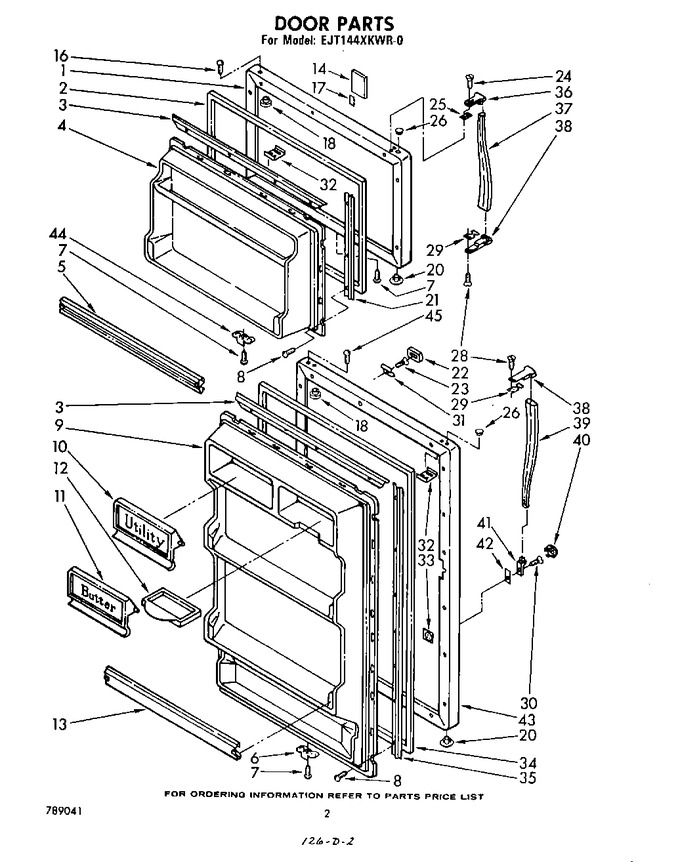

02 - Door, Lit/optional
03 - Cabinet
04 - Liner
05 - Compartment Separator And Control
06 - Unit
07 - Shelves
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 944101 | Freezer Door Panel (white) |
|
- | |||||
| 1 | 944103 | Freezer Door Panel (golden Harvest) |
|
- | |||||
| 1 | 944104 | Freezer Door Panel (new Avocado) |
|
- | |||||
| 1 | 944105 | Freezer Door Panel (almond) |
|
- | |||||
| 1 | 944102 | Freezer Door Panel (coffee) |
|
- | |||||
| 2 | WP2188456A | Freezer Door Gasket (Replaces: 937001) |
|
$ 232.64 | |||||
| 3 | 935759 | Gasket Retainer, Top & Bottom (2) |
|
- | |||||
| 4 | 939097 | Interior Door Panel (freezer) |
|
- | |||||
| 5 | 939274 | Trim, Door Shelf |
|
- | |||||
| 6 | 944036 | Bracket, Door Stop |
|
- | |||||
| 7 | 488930 | Screw (repair) |
|
- | |||||
| 7 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 8 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 7.62 | ||||
| 8 | WP489069 | Screw, 7 X 1/2 (Replaces: 489089) |
|
Immediately | $ 7.56 | ||||
| 9 | 940599 | Interior Door Panel (refrigerator) |
|
- | |||||
| 10 | 940601 | Door, Utility |
|
- | |||||
| 11 | 940600 | Door, Butter |
|
- | |||||
| 12 | 520747 | Tray, Butter |
|
- | |||||
| 13 | 939981 | Trim, Door Shelf (2) |
|
- | |||||
| 14 | 945120 | Nameplate |
|
- | |||||
| 16 | 488915 | Screw, 6-32 X 1/2 |
|
- | |||||
| 16 | 488925 | Screw (repair) |
|
- | |||||
| 17 | 991259 | Tape |
|
- | |||||
| 18 | 509929 | Cap, Hinge Sleeve (4) |
|
- | |||||
| 20 | 989878 | Hole Plug (2) (coffee) |
|
- | |||||
| 20 | 534927 | Hole Plug (2) (white) |
|
- | |||||
| 20 | 989879 | Hole Plug (2) (golden Harvest) |
|
- | |||||
| 20 | 989880 | Hole Plug (2) (new Avocado) |
|
- | |||||
| 20 | 989197 | Hole Plug (2) (almond) |
|
- | |||||
| 21 | 935775 | Gasket Retainer, Side (2) |
|
- | |||||
| 22 | 989904 | Medallion (almond) |
|
- | |||||
| 22 | 989901 | Medallion (coffee) |
|
- | |||||
| 22 | 848382 | Medallion (white) |
|
- | |||||
| 22 | 989903 | Medallion (golden Harvest) |
|
- | |||||
| 22 | 989902 | Medallion (new Avocado) |
|
- | |||||
| 23 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.45 | ||||
| 24 | 488927 | Screw (repair) |
|
- | |||||
| 24 | WP488920 | Screw, 6-32 X 5/8 (Replaces: 488926) |
|
$ 7.18 | |||||
| 25 | 943187 | Shim, Handle End |
|
$ 25.14 | |||||
| 26 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 7.37 | ||||
| 26 | 989894 | Hole Plug (new Avocado) |
|
- | |||||
| 26 | WP2212648 | Hole Plug (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 7.37 | ||||
| 26 | 989892 | Hole Plug (coffee) |
|
- | |||||
| 26 | 989196 | Hole Plug (almond) |
|
- | |||||
| 28 | 488923 | Screw (repair) |
|
- | |||||
| 28 | WP488920 | Screw, 8 X 5/8 (Replaces: 488920) |
|
$ 7.18 | |||||
| 29 | 943188 | Spacer, Door Handle |
|
$ 7.80 | |||||
| 30 | WP488729 | Screw, 8 X 1/2 (Replaces: 487875) |
|
Immediately | $ 7.45 | ||||
| 31 | 843213 | Clip, Medallion |
|
- | |||||
| 32 | 943185 | Tap Plate (2) |
|
- | |||||
| 33 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.09 | |||||
| 34 | 2188445A | Refrigerator Door Gasket (Replaces: 935761) |
|
$ 177.62 | |||||
| 35 | 935760 | Gasket Retainer, Side (2) |
|
- | |||||
| 36 | WP2191882 | Handle End, (Replaces: 943184) |
|
$ 56.49 | |||||
| 37 | 982978 | Handle, Center |
|
- | |||||
| 38 | 943182 | Handle End |
|
- | |||||
| 39 | 982946 | Handle, Center |
|
- | |||||
| 40 | WP1101634 | Cover, Screw (Replaces: 981182) |
|
$ 8.71 | |||||
| 41 | WP2183139 | Handle, End (Replaces: 983542) |
|
Immediately | $ 46.78 | ||||
| 42 | 992872 | Shim, Handle End |
|
- | |||||
| 43 | 944095 | Refrigerator Door (white) |
|
- | |||||
| 43 | 944096 | Refrigerator Door (coffee) |
|
- | |||||
| 43 | 944097 | Refrigerator Door (golden Harvest) |
|
- | |||||
| 43 | 944098 | Refrigerator Door (new Avocado) |
|
- | |||||
| 43 | 944099 | Refrigerator Door (almond) |
|
- | |||||
| 44 | 944035 | Bracket, Door Stop |
|
- | |||||
| 45 | 789041 | List, Parts |
|
- | |||||
| 45 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 11.50 | ||||
| 45 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 164.39 | ||||
| 45 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 111.46 | |||||
| 45 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 218.83 | |||||
| 45 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.93 | |||||
| 45 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 45 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 45 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 7.53 | |||||
| 45 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 45 | 833938 | Kit, Terminal Connector |
|
$ 7.62 | |||||
| 45 | 946891 | Consumer Buy Guide |
|
- | |||||
| 45 | 943465 | Tech Sheet |
|
- | |||||
| 45 | 946953 | Energy Guide |
|
- | |||||
| 45 | 940611 | Guide, Use & Care |
|
- | |||||
| 45 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 45 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 45 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 45 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 45 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 45 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 45 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 45 | 261887 | Enamel, Coffee (1 Qt. Uncut) |
|
- | |||||
| 45 | 261889 | Enamel, New Avocado (1 Qt. Uncut) |
|
- | |||||
| 45 | 261891 | Enamel, Golden Harvest (1 Qt. Uncut) |
|
- | |||||
| 45 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 45 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 86.78 | ||||
| 45 | 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | |||||
| 45 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 218.83 | |||||
| 45 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 45 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 46.58 | |||||
| 45 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 74.13 | |||||
| 45 | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 48.61 | ||||||
| 350942 | Primer White (13 Oz. Spray Can) |
|
$ 84.73 | ||||||
| 350941 | Xleveler, Enamel (13 Oz. Spray Can) |
|
- | ||||||
| 261890 | Xenamel, Golden Harvest (13 Oz. Spray Can) |
|
- | ||||||
| 261888 | Xenamel, New Avocado (13 Oz. Spray Can) |
|
- | ||||||
| 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 53.90 | ||||||
| 261886 | Xenamel, Coffee (13 Oz. Spray Can) |
|
- |
