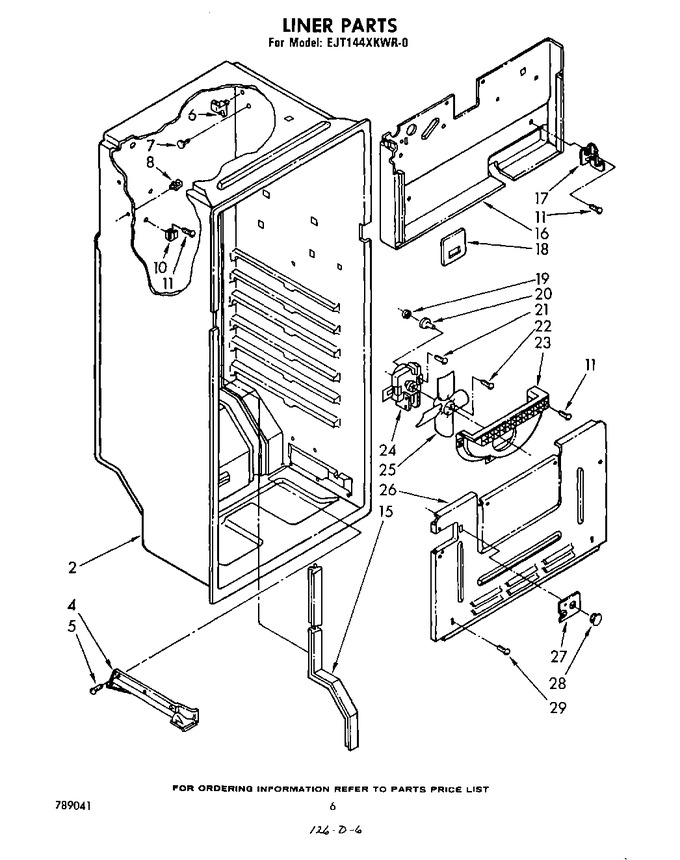

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
4	941776		Cover Tube, Bottom		Appelez-nous	-
5	W11693756		Screw, 8-15 X 5/8 (4)   (Replaces: 487042)			Immediately	$ 13.28
6	939203		Support, Stud (2)		Appelez-nous	-
7	WP941839		Hole Plug (3)   (Replaces: 941839)				$ 7.23
8	939065		Stud Hook (2)				$ 7.25
10	939050		Bracket, Wire Receptacles		Appelez-nous	-
11	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
15	935704		Cover Tube, Rear		Appelez-nous	-
16	935699		Heat Shield		Appelez-nous	-
17	935700		Evaporator Support (2)		Appelez-nous	-
18	935696		Cover, Air Duct		Appelez-nous	-
19	531933		Grommet (2)				$ 5.70
20	935701		Spacer, Fan Motor (2)		Appelez-nous	-
21	489042		Screw (2)		Appelez-nous	-
22	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 220.32
23	836179		Fan Scroll		Appelez-nous	-
24	482731		Motor, Fan   (Replaces: 938287)			Immediately	$ 83.12
25	WP1100938		Blade, Fan   (Replaces: 548041)				$ 83.03
26	935719		Evaporator Cover		Appelez-nous	-
27	937354		Hole Cover		Appelez-nous	-
28	939283		Hole Plug		Appelez-nous	-
29	WP488729		Screw, 8-15 X 1/2 (7)   (Replaces: 488992)			Immediately	$ 7.45
