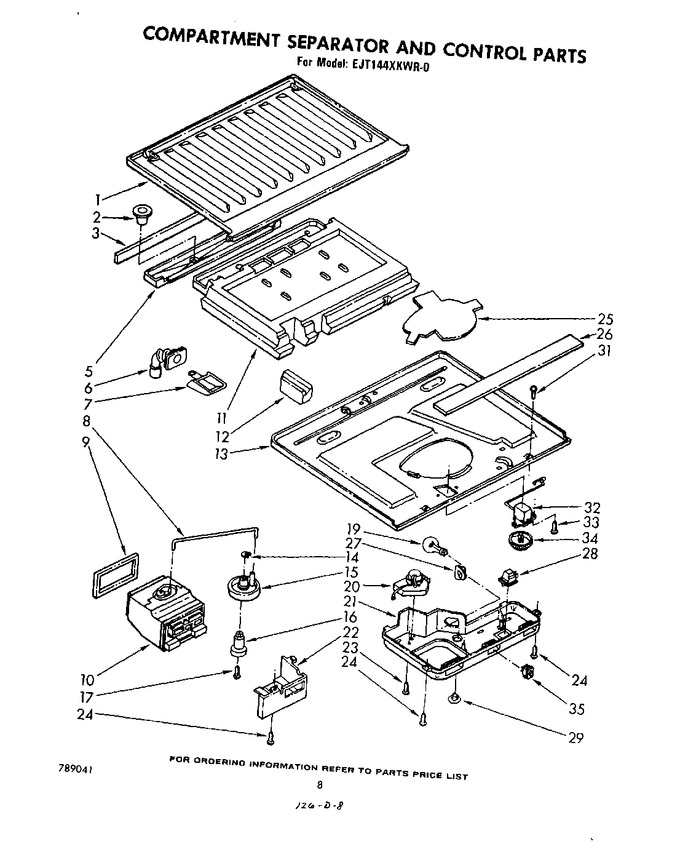

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	935717		Top, Compartment Separator		Appelez-nous	-
2	937359		Drain Insert		Appelez-nous	-
3	937064		Gasket, Drain Pan		Appelez-nous	-
5	935718		Drain Pan		Appelez-nous	-
6	937062		Fitting, Drain		Appelez-nous	-
7	937065		Cup, Drain		Appelez-nous	-
8	937142		Connecting Rod		Appelez-nous	-
9	937225		Gasket, Air Diffuser		Appelez-nous	-
10	935721		Air Diffuser		Appelez-nous	-
11	939272		Insulation, Compartment Separator		Appelez-nous	-
12	939056		Rear Corner Block (2)		Appelez-nous	-
13	935714		Bottom, Compartment Separator		Appelez-nous	-
14	489053		Lockwasher		Appelez-nous	-
15	935727		Knob, Air Control		Appelez-nous	-
16	937105		Spacer, Knob		Appelez-nous	-
17	WP488163		Screw   (Replaces: 487534)				$ 7.13
19	W11679940		Bulb   (Replaces: 946059)			Immediately	$ 10.17
20	W10822278		Defrost Timer   (Replaces: 943435)			Immediately	$ 31.00
21	935726		Box, Control		Appelez-nous	-
22	937226		Cover, Air Diffuser		Appelez-nous	-
23	WP487353		Screw, 6-20 X 1/2 (2)   (Replaces: 488693)				$ 7.16
24	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
25	937227		Heat Shield		Appelez-nous	-
26	937086		Center Rail, Seal Strip		Appelez-nous	-
27	4387478		Socket   (Replaces: 851067)			Immediately	$ 104.10
28	W11384469		Switch, Rocker Arm   (Replaces: 549702)			Immediately	$ 35.18
29	940014		Hole Plug				$ 18.33
31	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 7.13
32	WP819470		Thermostat   (Replaces: 940038)				$ 148.46
33	488624		Screw, 8 X 3/8 (2)		Appelez-nous	-
34	937144		Knob, Thermostat		Appelez-nous	-
35	938049		Toggle, Switch		Appelez-nous	-
