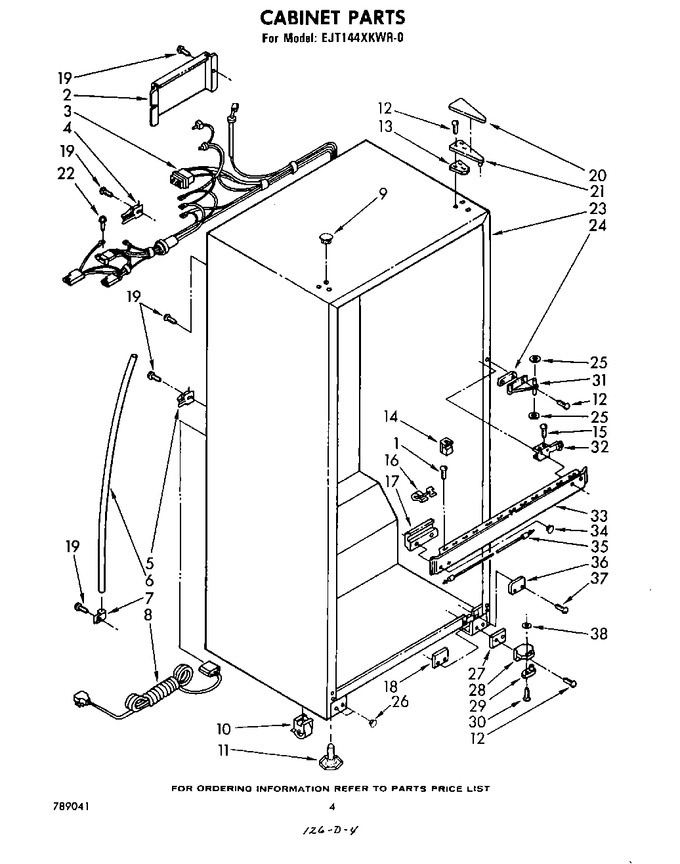

02 - Door, Lit/optional
03 - Cabinet
04 - Liner
05 - Compartment Separator And Control
06 - Unit
07 - Shelves
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488729 | Screw, 8 X 1/2 (Replaces: 487900) |
|
Immediately | $ 7.45 | ||||
| 2 | 937358 | Cover, Wiring |
|
- | |||||
| 3 | 935698 | Cabinet, Wiring Assembly |
|
- | |||||
| 4 | 937357 | Clamp |
|
- | |||||
| 5 | 549193 | Clamp |
|
$ 12.65 | |||||
| 6 | 8316810 | Tube, Drain (Replaces: 509640) |
|
$ 113.15 | |||||
| 7 | 488946 | Clamp, Tube |
|
$ 19.32 | |||||
| 8 | 937360 | Cord, Service |
|
- | |||||
| 9 | 989195 | Hole Plug (3) (almond) |
|
- | |||||
| 9 | 989877 | Hole Plug (3) (new Avocado) |
|
- | |||||
| 9 | 989876 | Hole Plug (3) (golden Harvest) |
|
- | |||||
| 9 | 989875 | Hole Plug (3) (coffee) |
|
- | |||||
| 9 | 842031 | Hole Plug (3) (white) |
|
- | |||||
| 10 | 937216 | Roller, Front & Rear (4) |
|
- | |||||
| 11 | W11117769 | Leveler (4) (Replaces: 939005) |
|
Immediately | $ 17.43 | ||||
| 12 | WP999367 | Screw, 10-32 X 23/32 (Replaces: 489105) |
|
$ 7.70 | |||||
| 12 | 488949 | Screw (repair) |
|
- | |||||
| 13 | 836192 | Shim, Top Hinge |
|
- | |||||
| 14 | 940024 | Spacer (2) |
|
- | |||||
| 15 | WP488729 | Screw, 8 X 1/2 (2) (Replaces: 488783) |
|
Immediately | $ 7.45 | ||||
| 16 | 534365 | Clip, Breaker |
|
$ 13.35 | |||||
| 17 | 939034 | Center, Rail Shim (2) |
|
- | |||||
| 18 | 935743 | Tap Plate |
|
- | |||||
| 19 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 13.25 | |||||
| 20 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 20 | 842010 | Hinge Cover (white) |
|
- | |||||
| 20 | 989896 | Hinge Cover (golden Harvest) |
|
- | |||||
| 20 | 989897 | Hinge Cover (new Avocado) |
|
- | |||||
| 20 | 989895 | Hinge, Cover (coffee) |
|
- | |||||
| 21 | 842039 | Hinge & Shim (top) |
|
- | |||||
| 22 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 488500) |
|
$ 10.26 | |||||
| 23 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 24 | 836155 | Shim, Center Hinge |
|
- | |||||
| 25 | WP488296 | Washer, 11/64 (Replaces: 488296) |
|
Immediately | $ 6.80 | ||||
| 26 | 941420 | Plug Button (2) (new Avocado) |
|
- | |||||
| 26 | 941416 | Plug Button (2) (white) |
|
- | |||||
| 26 | 941417 | Plug Button (2) (almond) |
|
- | |||||
| 26 | 941418 | Plug Button (2) (coffee) |
|
- | |||||
| 26 | 941419 | Plug Button (2) (golden Harvest) |
|
- | |||||
| 27 | 935737 | Shim, Bottom Hinge |
|
- | |||||
| 28 | 935735 | Butt Hinge (bottom) |
|
- | |||||
| 29 | 654366 | Pin, Hinge (bottom) |
|
$ 27.15 | |||||
| 30 | 488714 | Screw 10-32 X 5/16 |
|
$ 5.48 | |||||
| 31 | 836153 | Hinge, Center |
|
- | |||||
| 32 | 935692 | Bracket, Center Rail (2) |
|
- | |||||
| 33 | 935689 | Center Rail (almond) |
|
- | |||||
| 33 | 935688 | Center Rail (new Avocado) |
|
- | |||||
| 33 | 935687 | Center Rail (golden Harvest) |
|
- | |||||
| 33 | 935686 | Center Rail (coffee) |
|
- | |||||
| 33 | 935685 | Center Rail (white) |
|
- | |||||
| 34 | 940090 | Hole Plug (2) (new Avocado) |
|
- | |||||
| 34 | 940086 | Hole Plug (2) (white) |
|
- | |||||
| 34 | 940087 | Hole Plug (2) (almond) |
|
- | |||||
| 34 | 940088 | Hole Plug (2) (coffee) |
|
- | |||||
| 34 | 940089 | Hole Plug (2) (golden Harvest) |
|
- | |||||
| 35 | 938278 | Heater, Mullion |
|
- | |||||
| 36 | 935707 | Rail Cover Tube (white) |
|
- | |||||
| 36 | 935709 | Rail Cover Tube (golden Harvest) |
|
- | |||||
| 36 | 935710 | Rail Cover Tube (new Avocado) |
|
- | |||||
| 36 | 935711 | Rail Cover Tube (almond) |
|
- | |||||
| 36 | 935708 | Rail Cover Tube (coffee) |
|
- | |||||
| 37 | 488895 | Screw (2) |
|
- | |||||
| 38 | WP487576 | Washer, 1/16 (Replaces: 487576) |
|
Immediately | $ 9.67 |
