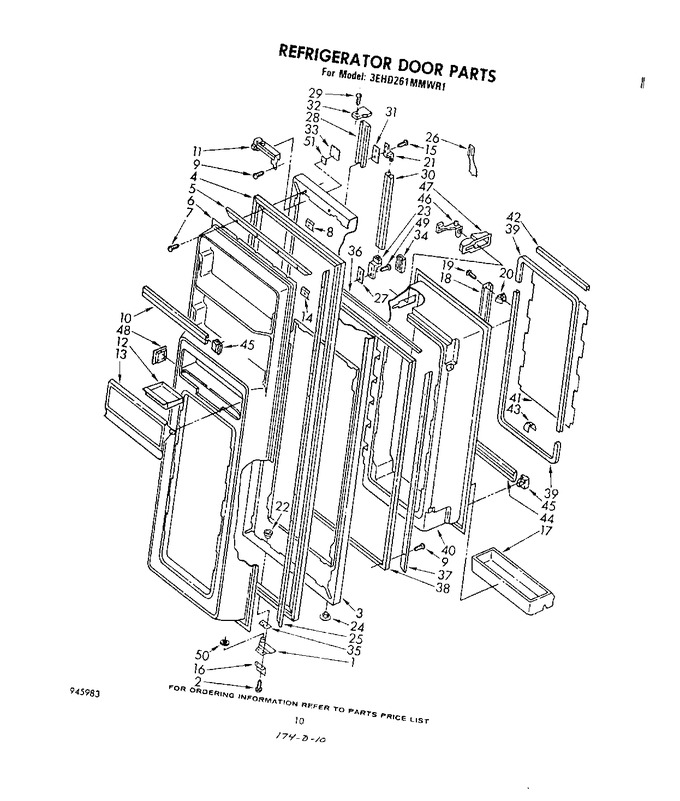

06 - Refrigerator Door


07 - Freezer Door


08 - Serva-door


09 - Airflow And Control


10 - Unit


11 - Freezer Liner


12 - Refrigerator Interior


13 - Icemaker , Not Illustrated And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	987914		Hinge, Bottom (serva-door)		Appelez-nous	-
2	WP250830		Screw, 8-32 X 1/2   (Replaces: 488096)				$ 8.78
3	941952		Door, Refrigerator (almond)		Appelez-nous	-
3	941948		Door, Refrigerator (white)		Appelez-nous	-
3	941949		Door, Refrigerator (coffee)		Appelez-nous	-
3	941951		Door, Refrigerator (new Avocado)		Appelez-nous	-
3	941950		Door, Refrigerator (golden Harvest)		Appelez-nous	-
4	944457		Gasket, Refrigerator Door		Appelez-nous	-
5	836121		Retainer, Top & Bottom (2)		Appelez-nous	-
6	945169		Panel, Interior		Appelez-nous	-
7	WP489069		Screw, 7 X 1/2   (Replaces: 489089)			Immediately	$ 8.40
7	WP681414		Screw, 10-12 X 3/8 (repair)   (Replaces: 488552)			Immediately	$ 8.47
8	941242		Screw Anchor		Appelez-nous	-
9	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
10	988746		Trim, Shelf (2)		Appelez-nous	-
11	840847		Door, Closer		Appelez-nous	-
12	520747		Tray, Butter		Appelez-nous	-
13	935352		Door, Compartment		Appelez-nous	-
14	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
15	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 487909)			Immediately	$ 8.28
16	988417		Bracket, Door Stop		Appelez-nous	-
17	945147		Shelf, Cantilever		Appelez-nous	-
18	983804		Ladder, Door Shelf (2)		Appelez-nous	-
19	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
20	537095		Clip, Expansion (6)		Appelez-nous	-
21	935103		Center End Cap, Handle		Appelez-nous	-
22	509929		Cap, Hinge		Appelez-nous	-
23	935105		End, Cap Handle				$ 32.80
24	534927		Plug, Hole		Appelez-nous	-
25	982887		Retainer, Side (2)		Appelez-nous	-
26	941955		Insert, Handle		Appelez-nous	-
27	935076		Shim, Handle		Appelez-nous	-
28	941954		Retainer Insert		Appelez-nous	-
29	489075		Screw, 6-32 X 1/2		Appelez-nous	-
30	945144		Handle, Center (white, Coffee)		Appelez-nous	-
30	935096		Handle, Center (golden Harvest)		Appelez-nous	-
30	935095		Handle, Center (new Avocado)		Appelez-nous	-
30	945146		Handle, Center (almond)		Appelez-nous	-
31	935075		Shim, Handle		Appelez-nous	-
32	941259		End Cap, Insert Retainer		Appelez-nous	-
33	945108		Nameplate		Appelez-nous	-
34	987873		Cover, End Cap		Appelez-nous	-
35	986169		Shim, Bottom Hinge		Appelez-nous	-
36	986164		Reinforcement, Top & Bottom (2)		Appelez-nous	-
37	986163		Reinforcement, Side (2)		Appelez-nous	-
38	944458		Gasket, Seal		Appelez-nous	-
39	986453		Trim, Periphery (2)		Appelez-nous	-
40	945170		Panel, Interior Storage		Appelez-nous	-
41	986455		Panel, Decorative		Appelez-nous	-
42	936954		Trim, Decorative (2)		Appelez-nous	-
43	986454		Cap, Trim Joint (2)		Appelez-nous	-
44	986448		Trim, Door Shelf		Appelez-nous	-
45	943125		Retainer, Trim (6)		Appelez-nous	-
46	944464		Rocker Arm		Appelez-nous	-
47	944463		Housing, Rocker Arm		Appelez-nous	-
48	944465		Escutcheon, Panel Opening		Appelez-nous	-
49	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 8.28
50	488306		Washer		Appelez-nous	-
51	991259		Tape Strip		Appelez-nous	-
