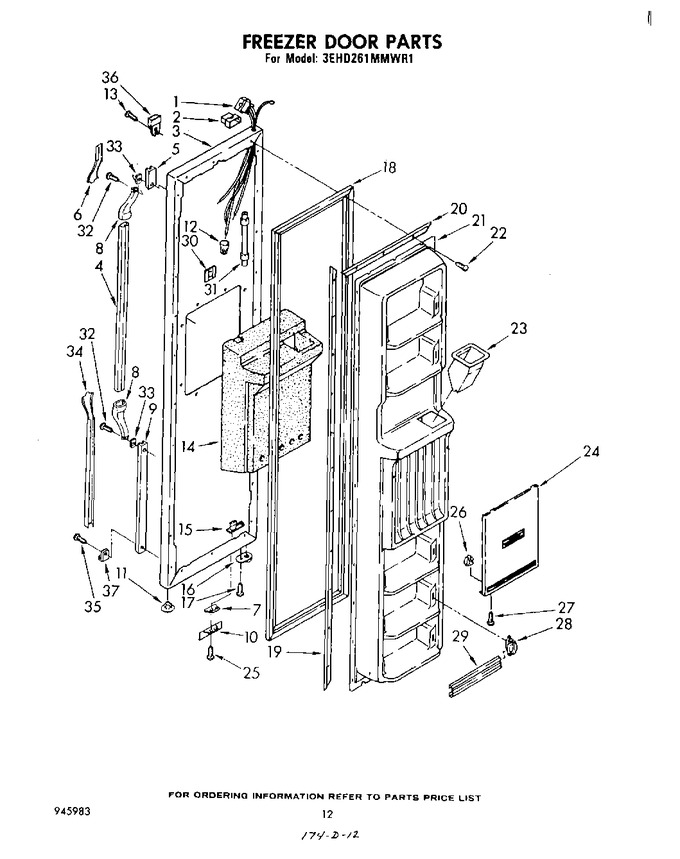

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	851373		Harness, Door (includes Illus. 2)		Appelez-nous	-
2	851649		Connector, Plug		Appelez-nous	-
3	941962		Door, Freezer (almond)		Appelez-nous	-
3	941960		Door, Freezer (golden Harvest)		Appelez-nous	-
3	941961		Door, Freezer (new Avocado)		Appelez-nous	-
3	941959		Door, Freezer (coffee)		Appelez-nous	-
3	941958		Door, Freezer (white)		Appelez-nous	-
4	945159		Handle, Center (almond)		Appelez-nous	-
4	935099		Handle, Center (golden Harvest)		Appelez-nous	-
4	935098		Handle, Center (new Avocado)		Appelez-nous	-
4	945157		Handle, Center (white, Coffee)		Appelez-nous	-
5	941954		Retainer Insert (top)		Appelez-nous	-
6	941955		Insert, Handle		Appelez-nous	-
7	988421		Shim, Bracket		Appelez-nous	-
8	935103		Center End Cap (2)		Appelez-nous	-
9	935875		Retainer Insert (bottom)		Appelez-nous	-
10	988420		Bracket, Door Stop		Appelez-nous	-
11	534927		Plug, Hole		Appelez-nous	-
12	227991		Wire Connector		Appelez-nous	-
13	489075		Screw, 6-32 X 1/2 (2)		Appelez-nous	-
14	983679		Insulation, Dispenser		Appelez-nous	-
15	988402		Tap Plate		Appelez-nous	-
16	4318165		Door, Closer   (Replaces: 986758)			Immediately	$ 29.74
17	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
18	944470		Gasket, Freezer Door		Appelez-nous	-
19	982887		Retainer, Side (2)		Appelez-nous	-
20	983643		Retainer, Top & Bottom (2)		Appelez-nous	-
21	945133		Panel, Interior		Appelez-nous	-
22	WP489069		Screw, 7 X 1/2   (Replaces: 489089)			Immediately	$ 8.40
22	WP681414		Screw, 10-12 X 3/8   (Replaces: 488552)			Immediately	$ 8.47
23	944472		Chute, Ice		Appelez-nous	-
24	985550		Overlay, Interior Door		Appelez-nous	-
25	488549		Screw, 8 X 5/8		Appelez-nous	-
26	537095		Clip, Expansion		Appelez-nous	-
27	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
28	943125		Support, Trim (10)		Appelez-nous	-
29	935969		Shelf, Trim (5)		Appelez-nous	-
30	941242		Screw Anchor (2)		Appelez-nous	-
31	991415		Tube, Wiring		Appelez-nous	-
32	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 487909)			Immediately	$ 8.28
33	935075		Shim		Appelez-nous	-
34	935885		Insert, Handle		Appelez-nous	-
35	488915		Screw, 6-32 X 1/2		Appelez-nous	-
36	941259		End Cap, Insert Retainer		Appelez-nous	-
37	935106		End Cap, Insert Retainer		Appelez-nous	-
