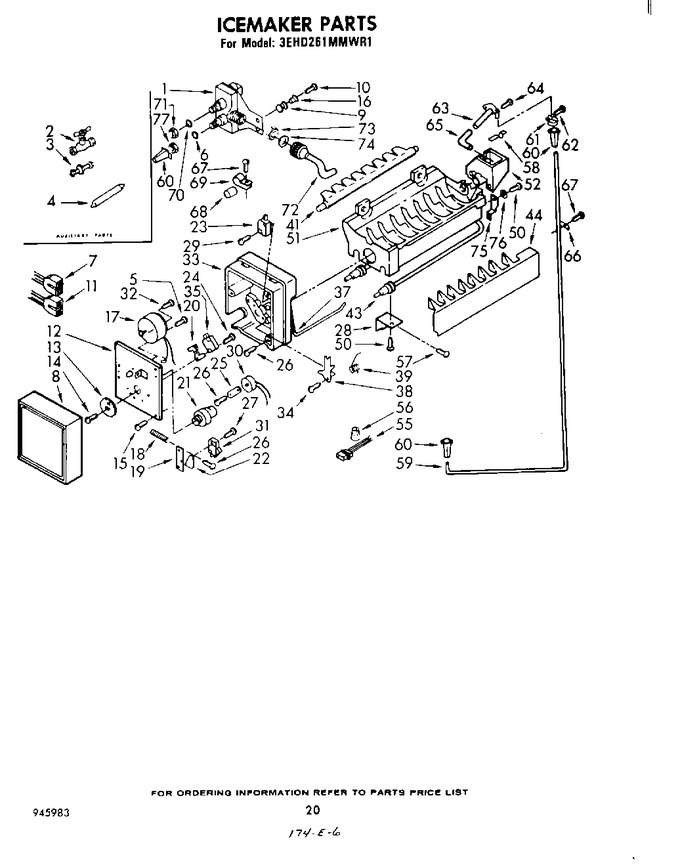

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	627689		Valve, Solenoid		Appelez-nous	-
2	541157		Valve, Shut-off		Appelez-nous	-
3	512503		Union, 1/4`` X 3/16``		Appelez-nous	-
4	978488		Filter Kit		Appelez-nous	-
5	488361		Screw, 4-40 X 1 (2)		Appelez-nous	-
6	00753257		Ring, ``o``   (Replaces: 488819)			Immediately	$ 295.49
7	548734		Wiring, Water Valve		Appelez-nous	-
8	627356		Cover		Appelez-nous	-
9	510723		Grommet (2)		Appelez-nous	-
10	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.76
11	850564		Wiring, Dispensing Valve		Appelez-nous	-
12	625833		Plate, Mounting		Appelez-nous	-
13	625914		Gear		Appelez-nous	-
14	488957		Screw		Appelez-nous	-
15	WP488787		Screw, 8-18 X 1/2 (3)   (Replaces: 488886)				$ 11.26
16	510906		Spacer (2)		Appelez-nous	-
17	626073		Motor		Appelez-nous	-
18	627163		Spring		Appelez-nous	-
19	625836		Plate, Valve		Appelez-nous	-
20	625834		Spacer, Holding Switch				$ 7.99
21	625913		Cam		Appelez-nous	-
22	625835		Insulator		Appelez-nous	-
23	625851		Switch, S.p.d.t. (2)		Appelez-nous	-
24	488361		Screw, 4-40 X 1		Appelez-nous	-
25	625829		Clamp, Thermostat		Appelez-nous	-
26	488372		Screw, 8-32 X 1		Appelez-nous	-
27	00488362		Screw, 4-40 X 3/4   (Replaces: 488362)				$ 144.58
28	WP2256087		Bracket   (Replaces: 625910)				$ 97.65
29	488360		Screw, 4-24 X 3/4		Appelez-nous	-
30	627047		Thermostat		Appelez-nous	-
30	627206		Thermostat (alternate)		Appelez-nous	-
31	625947		Switch, S.p.s.t.		Appelez-nous	-
32	488542		Screw, Ground		Appelez-nous	-
33	625827		Support		Appelez-nous	-
34	627199		Screw, Shoulder		Appelez-nous	-
35	627720		Switch, S.p.d.t.		Appelez-nous	-
37	627484		Arm, Shut-off		Appelez-nous	-
38	625830		Lever, Arm		Appelez-nous	-
39	625832		Spring, Shut-off Arm		Appelez-nous	-
41	WP627843		Ejector   (Replaces: 627169)				$ 87.78
43	626069		Heater, Mold		Appelez-nous	-
44	627168		Stripper, Ice		Appelez-nous	-
50	488896		Screw, 8-16 X 3/8		Appelez-nous	-
51	627212		Mold & Heater Assembly (includes Illus. 43)		Appelez-nous	-
52	625707		Bearing & Inlet		Appelez-nous	-
55	627639		Wire Harness		Appelez-nous	-
56	227991		Connector Wire		Appelez-nous	-
57	WP681414		Screw, 10-12 X 3/8   (Replaces: 488552)			Immediately	$ 8.47
58	652604		Clip		Appelez-nous	-
59	W10823511		Tube, Water   (Replaces: 836240)			Immediately	$ 32.41
60	4387491		Insert, Tube (3)   (Replaces: 841707)				$ 8.23
61	WP488878		Clamp, Tube   (Replaces: 488878)				$ 12.18
62	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 11.87
63	WP2196157		Fitting, Water Tube   (Replaces: 983990)			Immediately	$ 12.59
64	WP98165		Screw, 8 X 5/8 (2)   (Replaces: 488401)				$ 8.57
65	983656		Tube, Water Inlet		Appelez-nous	-
66	836472		Clamp, Tube (3)		Appelez-nous	-
67	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
68	WP2158826		Dampener   (Replaces: 836074)				$ 1.82
69	510716		Clamp Tube		Appelez-nous	-
70	488794		Ring, ``o``		Appelez-nous	-
71	WP627018		Nut, 1/4 Dia.   (Replaces: 488810)				$ 11.51
72	836200		Tube, Inlet		Appelez-nous	-
73	537588		Nut, Valve		Appelez-nous	-
74	WP16123		Washer   (Replaces: 488292)				$ 8.16
75	627409		Bracket, Shut-off Arm		Appelez-nous	-
76	627435		Fastener, Springrip		Appelez-nous	-
77	945983		List, Parts		Appelez-nous	-
77	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
77	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
77	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
77	833938		Kit, Terminal Connector				$ 8.47
77	942132		Consumer Buy Guide		Appelez-nous	-
77	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
77	941651		Service & Wiring Sheet		Appelez-nous	-
77	942131		Guide, Use & Care		Appelez-nous	-
77	488795		Nut, 1/4 Dia.		Appelez-nous	-
77	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
77	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
77	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
77	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
77	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
77	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
77	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
77	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
77	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
77	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
77	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
77	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
77	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
77	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
77	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
77	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
77	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
77	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
77	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
77	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
77	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
77	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
