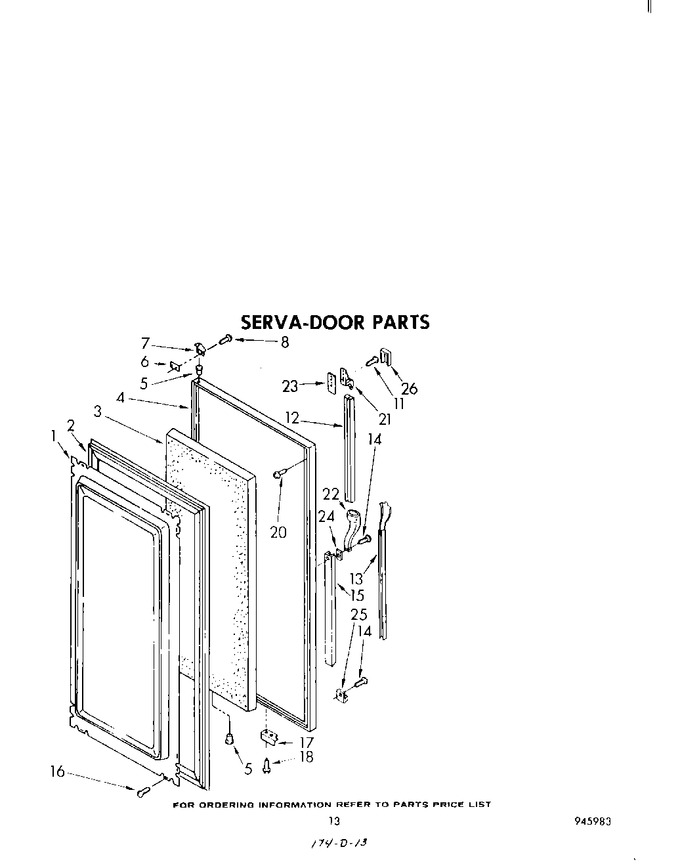

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944469		Panel, Interior		Appelez-nous	-
2	944468		Gasket, Serva-door		Appelez-nous	-
3	986434		Insulation		Appelez-nous	-
4	940469		Serva-door (new Avocado)		Appelez-nous	-
4	940470		Serva-door (almond)		Appelez-nous	-
4	940466		Serva-door (white)		Appelez-nous	-
4	940467		Serva-door (coffee)		Appelez-nous	-
4	940468		Serva-door (golden Harvest)		Appelez-nous	-
5	986157		Sleeve, Hinge Pivot (2)		Appelez-nous	-
6	986168		Shim, Hinge		Appelez-nous	-
7	987911		Hinge, Serva-door (top)		Appelez-nous	-
8	488927		Screw, 8-32 X 5/8		Appelez-nous	-
11	489008		Screw, 8-32 X 7/16		Appelez-nous	-
12	936732		Handle, Center (new Avocado)		Appelez-nous	-
12	945152		Handle, Center (white, Coffee)		Appelez-nous	-
12	945154		Handle, Center (almond)		Appelez-nous	-
12	936733		Handle, Center (golden Harvest)		Appelez-nous	-
13	935885		Insert, Handle		Appelez-nous	-
14	488844		Screw, 8-32 X 1/2 (3)		Appelez-nous	-
15	935875		Retainer, Insert		Appelez-nous	-
16	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
17	991331		Bracket, Door Stop		Appelez-nous	-
18	488956		Screw, 8 X 7/16 (2)		Appelez-nous	-
18	00488977		Screw, 10 X 7/16 (repair)   (Replaces: 488977)				$ 1,526.98
20	W11624204		Screw, 8 X 1/2 (40)   (Replaces: 486194)				$ 14.72
21	935105		End, Cap Handle				$ 32.80
22	935103		End Cap, Center Handle		Appelez-nous	-
23	935076		Shim, Handle		Appelez-nous	-
24	935075		Shim, Handle		Appelez-nous	-
25	935106		End Cap		Appelez-nous	-
26	936711		Cover, End Cap		Appelez-nous	-
