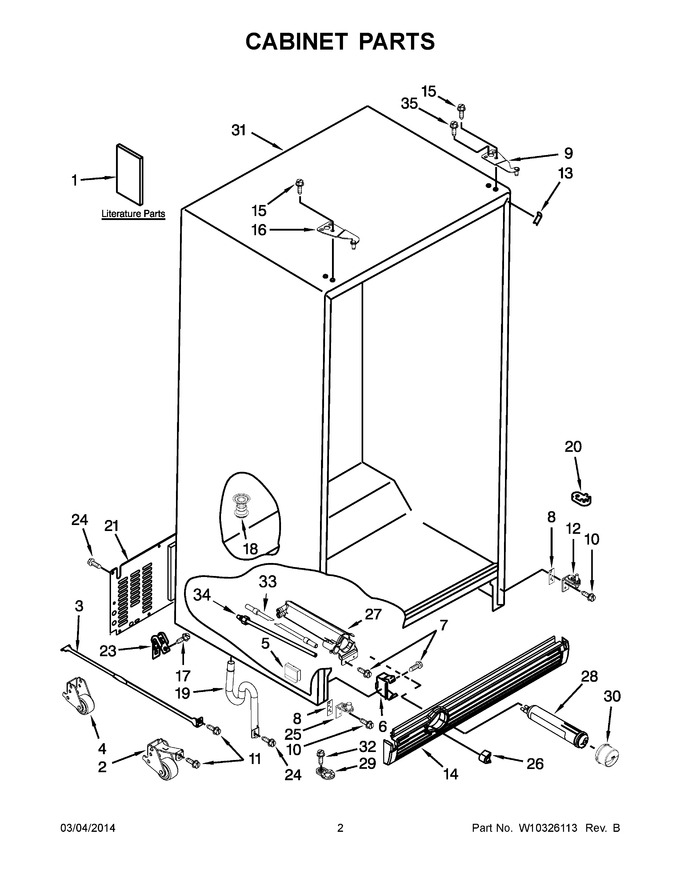

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10216710 | Energy Guide |
|
- | |||||
| 1 | 2220407 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | W10203274 | Use And Care Guide |
|
- | |||||
| 1 | W10152832 | Service And Wiring Sheet |
|
- | |||||
| 1 | 2318510 | Installation Instructions |
|
- | |||||
| 2 | W10199223 | Assembly, Front Roller (right Hand) |
|
$ 43.06 | |||||
| 2 | W10199222 | Assembly, Front Roller (left Hand) |
|
$ 36.32 | |||||
| 3 | W10199260 | Strap, Roller |
|
- | |||||
| 4 | W10173132 | Roller, Adjustable |
|
$ 31.84 | |||||
| 5 | W11545866 | Clip, Axle Retainer (Replaces: 2223388) |
|
$ 10.69 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.30 | ||||
| 7 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 8 | 2223545 | Shim |
|
$ 84.03 | |||||
| 9 | 2307008AP | Hinge, Top (refrigerator) (grey) |
|
$ 150.84 | |||||
| 10 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 26.18 | ||||
| 11 | 3400243 | Screw |
|
$ 12.03 | |||||
| 12 | 2307179 | Hinge, Bottom Right |
|
$ 50.88 | |||||
| 13 | 2223893AP | Filler, Wrapper (grey) |
|
- | |||||
| 14 | W10194061 | Grille (grey) |
|
$ 46.07 | |||||
| 15 | 3400108 | Screw |
|
$ 12.07 | |||||
| 16 | 2307007AP | Hinge, Top (freezer) (grey) |
|
$ 149.34 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 18 | W11566763 | Fitting, Drain (Replaces: 2304888) |
|
Immediately | $ 48.11 | ||||
| 19 | 2254566 | Extension, Drain Fitting |
|
$ 53.99 | |||||
| 20 | 2307049 | Closer, Door (refrigerator) |
|
$ 5.84 | |||||
| 21 | 2223409 | Cover, Unit |
|
$ 77.44 | |||||
| 22 | 3400858 | Screw |
|
- | |||||
| 23 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 24 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.25 | |||||
| 25 | 2307152 | Hinge, Bottom Left |
|
$ 36.02 | |||||
| 26 | 2260503MG | Button, Water Filter (grey) |
|
$ 25.52 | |||||
| 27 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 243.77 | ||||
| 28 | EDR3RXD1B | Filter, Water (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 29 | 2307051 | Closer, Door (freezer) |
|
$ 73.51 | |||||
| 30 | WP2260518MG | Cap, Water Filter (grey) (Replaces: 2260502MG) |
|
$ 52.95 | |||||
| 31 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 32 | WP489483 | Screw (Replaces: 489483) |
|
$ 10.27 | |||||
| 33 | W10212512 | Tube, Filter Inlet |
|
- | |||||
| 34 | WPW10350006 | Tube, Filter Outlet (Replaces: 2224020) |
|
$ 109.19 |
