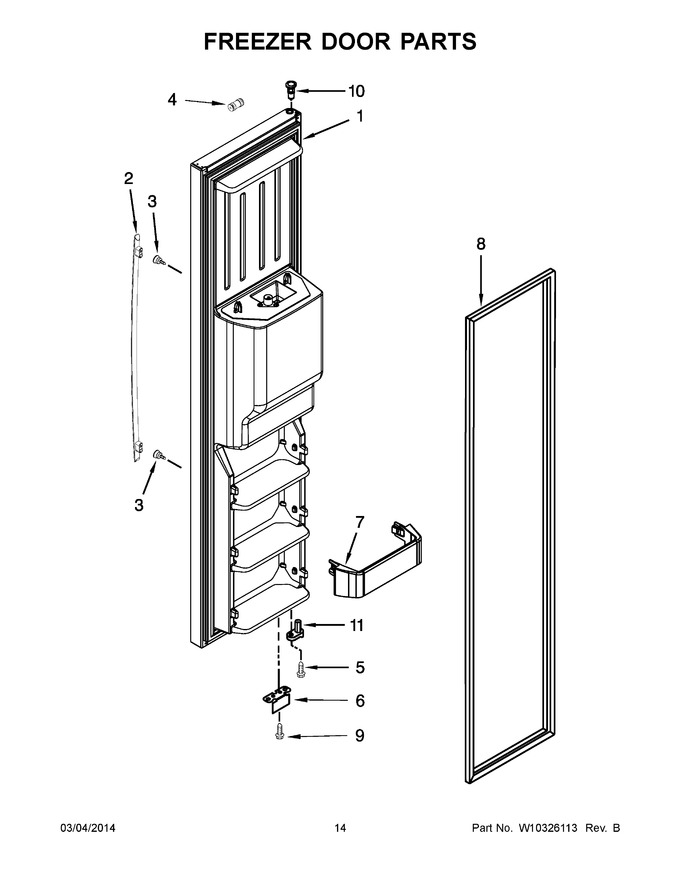

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10257828		Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
2	WPW10183428		Handle (stainless)   (Replaces: W10183428)			Immediately	$ 303.40
3	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.69
4	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 33.29
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
6	2306940		Bracket, Door Stop (silver)				$ 91.74
7	2223559		Trivet				$ 28.77
8	2326343		Gasket, Door (grey)		Appelez-nous	-
9	WP489483		Screw   (Replaces: 489420)				$ 10.27
10	WP2182181		Thimble-top   (Replaces: 2308091)				$ 7.34
11	2307050		Closer, Door				$ 39.47
NI	N/P		Following Parts Not Illustrated,		Appelez-nous	-
NI	2310224		Wire Harness, Freezer Door		Appelez-nous	-
NI	W10291319		Tube, Door		Appelez-nous	-
