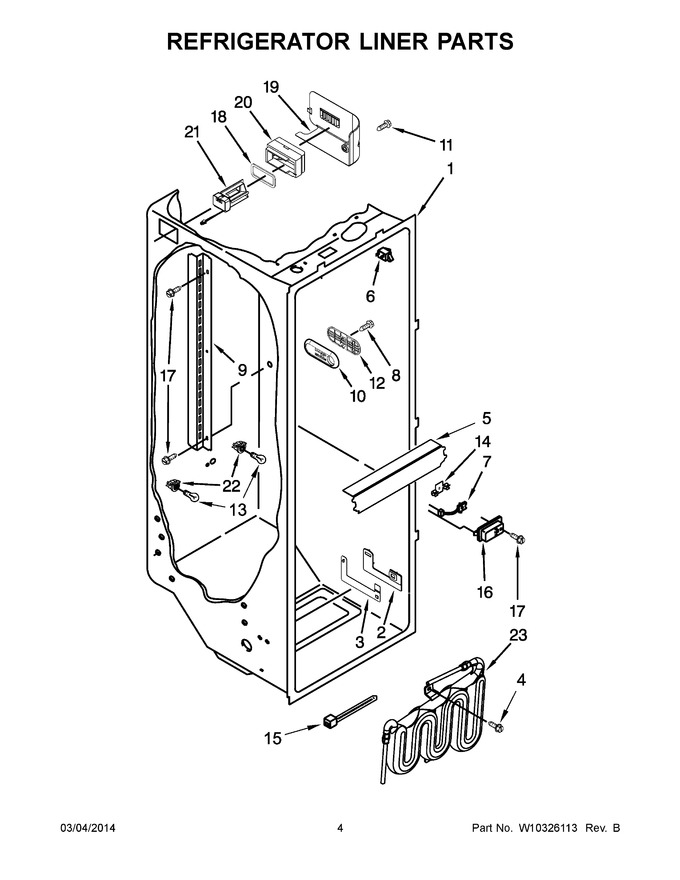

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	2223524		Escutcheon, Meat Pan Control		Appelez-nous	-
3	2223339		Slide Meat Pan Control		Appelez-nous	-
4	488280		Screw		Appelez-nous	-
5	2223663		Lens, Light				$ 107.10
6	W11384469		Switch, Rocker Arm (refrigerator)   (Replaces: 1118894)			Immediately	$ 35.18
7	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 27.77
8	W10142289		Screw   (Replaces: 3400893)				$ 8.65
9	2319866		Ladder, Shelf				$ 22.16
10	2301234		Control, Housing Door		Appelez-nous	-
11	WPW10141645		Screw   (Replaces: 489084)				$ 7.25
12	W10162918		Slide, Door Control		Appelez-nous	-
13	W11679940		Bulb, Light   (Replaces: W10194422)			Immediately	$ 10.17
14	2209204		Clip, Thermistor		Appelez-nous	-
15	WP2205813		Tie, Wire   (Replaces: 2205813)				$ 7.30
16	1116793		Cover, Thermistor				$ 14.63
17	WP489478		Screw   (Replaces: 489478)				$ 7.36
18	2304597		Gasket, Air Baffle				$ 103.97
19	2223403		Cover, Air Diffuser				$ 72.16
20	2224076		Assembly, Air Diffuser				$ 43.38
21	WP2220377		Baffle, Air   (Replaces: 2220377)			Immediately	$ 342.95
22	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 104.10
23	WPW10276792		Reservoir, Water   (Replaces: 2307107)				$ 130.01
