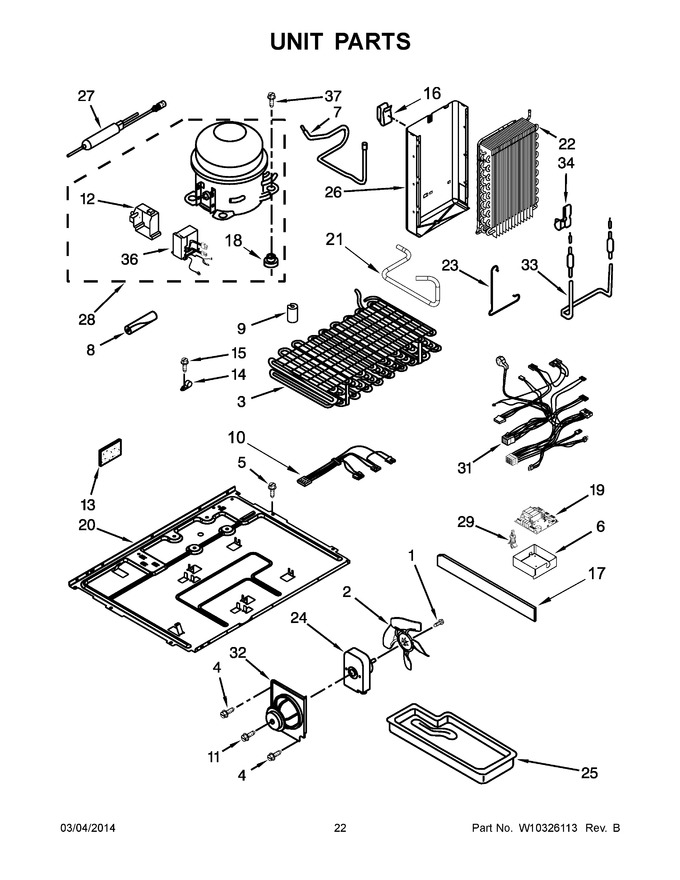

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488234		Screw   (Replaces: 777070)				$ 6.37
2	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 89.84
3	W10193018		Condenser				$ 312.48
4	WP489427		Screw   (Replaces: 489427)				$ 7.06
5	3400524		Screw (white)				$ 11.95
6	2223703		Housing, Control Board				$ 75.75
7	W10528579		Tube Suction   (Replaces: 2223351)				$ 247.78
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 19.19
9	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 7.28
10	2310121		Wire Harness, Unit		Appelez-nous	-
11	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 10.45
12	2215676		Cover, Terminal				$ 84.92
13	W11553819		Sealer, Insulation   (Replaces: 2169104)			Immediately	$ 13.29
14	2185960		Clamp, Power Cord   (Replaces: 2305373)		Appelez-nous	-
15	WPW10141625		Screw   (Replaces: 488649)				$ 20.00
16	2155547		Clip, Heat Shield		Appelez-nous	-
17	2223394		Extension, Air Baffle		Appelez-nous	-
18	876811		Grommet   (Replaces: 1100826)				$ 7.01
19	W10219463		Control, Electronic				$ 291.62
20	2306932		Baseplate				$ 158.02
21	2325479		Tube, Process		Appelez-nous	-
22	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 343.34
23	2161324		Clip, Defrost Heater		Appelez-nous	-
24	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 111.76
25	2223398		Tray, Evaporator		Appelez-nous	-
26	2224022		Shield, Heat		Appelez-nous	-
27	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 27.70
28	W10276644		Compressor   (Replaces: W10155907)			Immediately	$ 685.42
29	2223800		Spacer, Circuit Board				$ 17.50
31	WP2310122		Harness, Main Control   (Replaces: 2310122)				$ 250.01
32	2224024		Bracket, Fan Mounting				$ 56.36
33	2323199		Heater, Defrost				$ 127.42
34	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
36	WPW10154805		Assembly, Inverter Box   (Replaces: W10154805)			Immediately	$ 357.92
37	876811		Screw   (Replaces: 489373)				$ 7.01
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 123.53
NI	876764		Valve, Access			Immediately	$ 86.33
NI	N/P		Refrigerant Charge (6.00 Oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access			Immediately	$ 121.04
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
