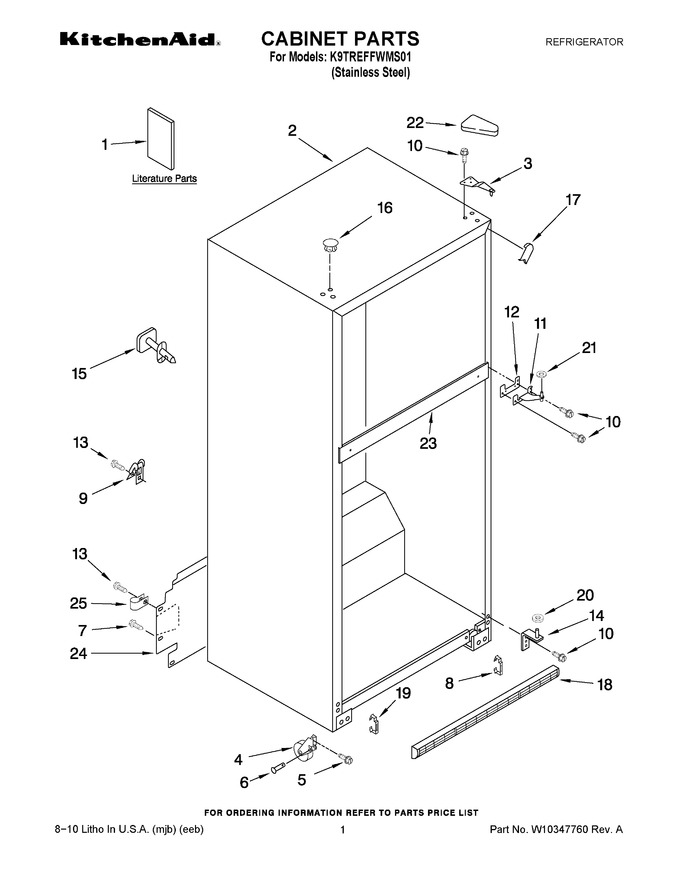

01 - Cabinet Parts
02 - Liner Parts
03 - Freezer Door Parts
04 - Shelf Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10312247 | Energy Label (bilingual) |
|
- | |||||
| 1 | W10312254 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10312248 | Energy Label (trilingual) |
|
- | |||||
| 1 | 787316 | Do-it-yourself Manual, Icemaker |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | WP2261963 | Hinge (top) (Replaces: 2261963) |
|
Immediately | $ 107.48 | ||||
| 4 | WP2166108 | Roller, Front (2) (Replaces: 2166108) |
|
Immediately | $ 31.28 | ||||
| 5 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 6.80 | |||||
| 6 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 17.21 | ||||
| 7 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 8 | 2254385 | Clip, Grille (right Side) |
|
$ 79.98 | |||||
| 9 | 549193 | Clamp-cord |
|
$ 12.65 | |||||
| 10 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 11 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 82.82 | ||||
| 12 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 10.06 | |||||
| 13 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 7.54 | ||||
| 14 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
$ 8.35 | |||||
| 15 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 16 | WPW10520307 | Hole Plug (6) (apollo Grey) (Replaces: 2254506) |
|
Immediately | $ 6.80 | ||||
| 17 | W10851579 | Corner Filler (2) (apollo Grey) (Replaces: W10283961) |
|
Immediately | $ 6.80 | ||||
| 18 | 2254531 | Grille (includes Items 8 & 19) (apollo Grey) |
|
- | |||||
| 19 | 2189356 | Clip, Grille (left Side) |
|
$ 5.70 | |||||
| 20 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 21 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 22 | W10853622 | Cover, Hinge (apollo Grey) (Replaces: 2254510) |
|
Immediately | $ 74.21 | ||||
| 23 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 24 | 2254578 | Cover, Unit |
|
$ 46.75 | |||||
| 25 | WP488366 | Clamp, Tube (Replaces: 489385) |
|
$ 10.73 |
