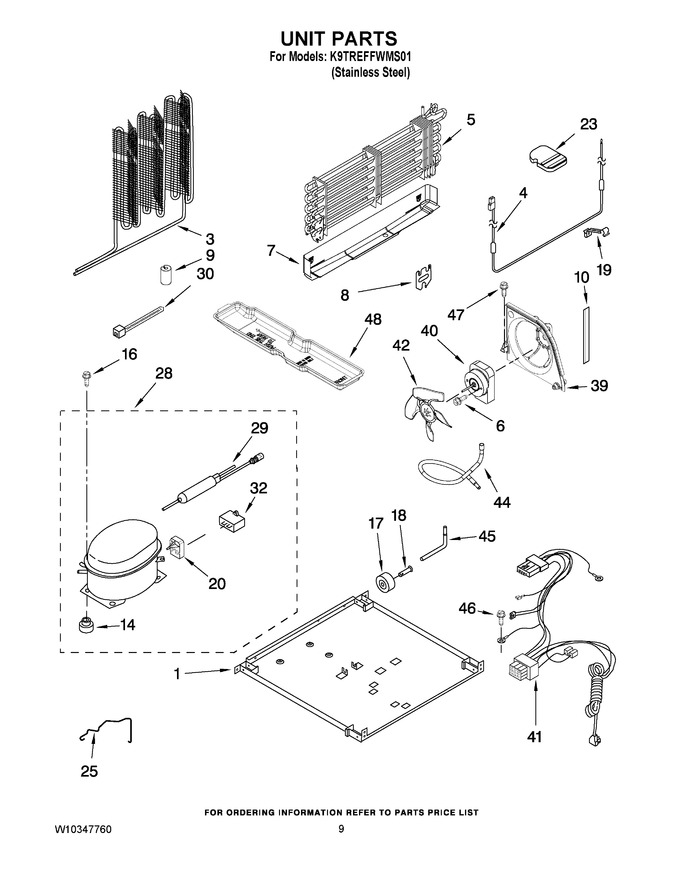

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2320188		Plate, Unit Mounting Sound Dampening		Appelez-nous	-
3	W10159808		Condenser		Appelez-nous	-
4	WP2315531		Heater, Defrost   (Replaces: 2315531)				$ 116.58
5	2254250		Evaporator Assy.				$ 234.07
6	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
7	2254294		Drain Pan		Appelez-nous	-
8	2176301		Bracket, Heater				$ 6.37
9	W10852725		Grommet-cond(4)   (Replaces: 2319835)				$ 7.28
10	2300638		Extension, Air Baffle				$ 52.69
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.57
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.01
16	876811		Screw   (Replaces: 489373)				$ 7.01
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 28.85
18	W11594405		Rivet   (Replaces: 2221797)			Immediately	$ 17.21
19	2182338		Clip, Heater				$ 6.62
20	W10805623		Start-device Combination Start Relay And Overload For Production Compressor Only)   (Replaces: W10249964)				$ 119.66
23	2201184		Support Block				$ 6.43
25	2212996		Strap   (Replaces: 2255113)				$ 11.45
28	W10285060		Compressor (includes Illus.14,29 & 32) (also Order 482801 Installation Kit & 876765 Tube Kit)   (Replaces: W10252075)				$ 664.70
29	WPW10143759		Drier (service)   (Replaces: W10177049)			Immediately	$ 27.70
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 7.47
32	WPW10662129		Capacitor (production)   (Replaces: 2264017)			Immediately	$ 52.97
32	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 52.97
39	WP2315541		Air Baffle   (Replaces: 2315541)			Immediately	$ 79.19
40	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 111.76
41	2187382		Wire Assembly Unit				$ 264.30
42	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 22.67
44	2225237		Tube, Suction				$ 40.12
45	2154109		Tube, Process				$ 68.63
46	WP489128		Screw   (Replaces: 488500)				$ 10.26
47	3400518		Screw				$ 12.27
48	WP2254574		Evaporator Tray   (Replaces: 2254574)				$ 165.23
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
NI	978026		Valve, Access (5/16``)			Immediately	$ 121.04
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
NI	978030		Valve, Access (3/4``)				$ 123.53
NI	N/P		Refrigerant Charge (4.0 Ozs. (r134a))		Appelez-nous	-
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	876764		Valve, Access(3/16``)			Immediately	$ 86.33
