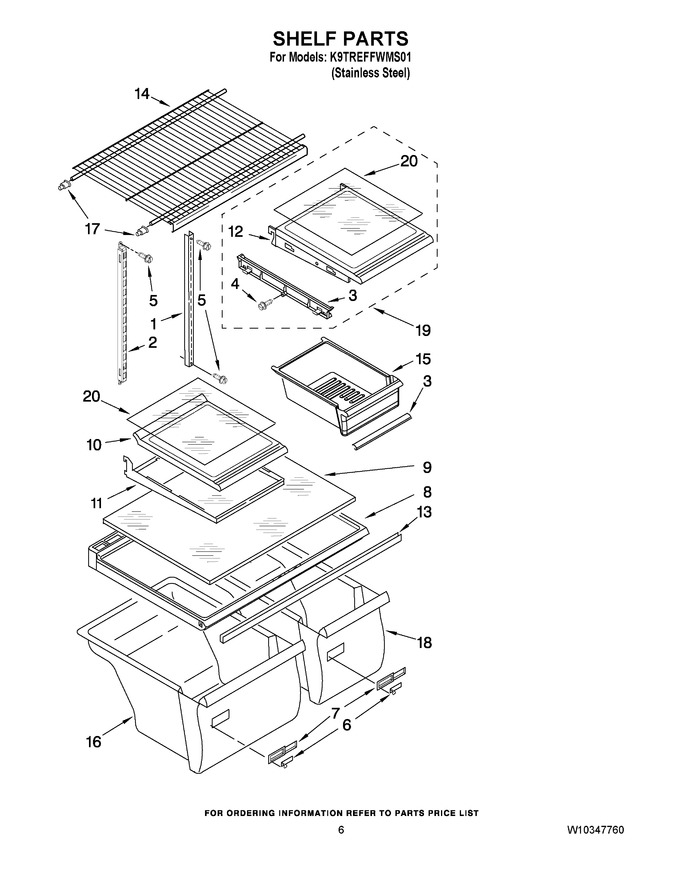

04 - Shelf Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2300520 | Shelf, Ladder Center |
|
$ 75.36 | |||||
| 3 | 2214892 | Slide Pan |
|
- | |||||
| 4 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 7.36 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 6 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 7 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 14.23 | |||||
| 8 | WP2314548 | Crisper Cover (Replaces: 2314495) |
|
$ 233.85 | |||||
| 9 | WP2169921 | Glass, Crisper Cover (Replaces: 2221693) |
|
$ 233.04 | |||||
| 10 | 2225713 | Shelf, Spillgaurd |
|
- | |||||
| 11 | 2225696 | Frame Assembly, Shelf |
|
- | |||||
| 12 | 2214908 | Frame Assembly, Meat Shelf |
|
- | |||||
| 13 | WP2172748 | Support, Crisper Cover (Replaces: 2314477) |
|
$ 91.87 | |||||
| 14 | 2189453 | Shelf, Freezer |
|
- | |||||
| 15 | WP2218127K | Pan, Meat (Replaces: 2218127K) |
|
$ 132.12 | |||||
| 16 | W10854037 | Crisper Pan-13`` (includes Illus. 4,6 & 7) (Replaces: 2218130) |
|
Immediately | $ 161.27 | ||||
| 17 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 13.23 | ||||
| 18 | W10856580 | Crisper Pan-10`` (includes Illus. 6,7 & 19) (Replaces: 2218129) |
|
Immediately | $ 159.33 | ||||
| 19 | 2214910 | Shelf Assy |
|
$ 109.57 | |||||
| 20 | 2214912 | Shelf, Glass |
|
- |
