View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

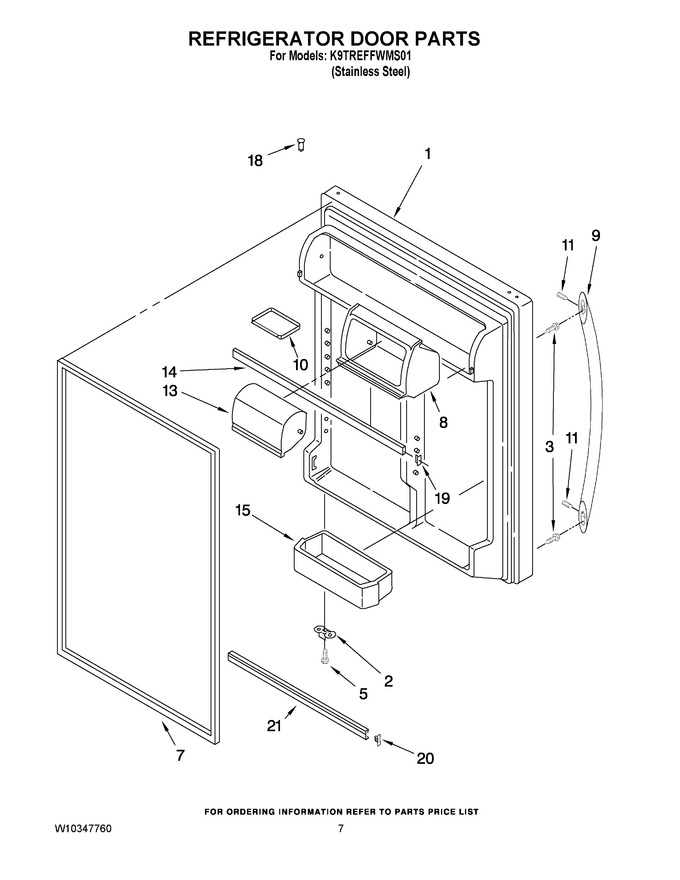

01 - Cabinet Parts
02 - Liner Parts
03 - Freezer Door Parts
04 - Shelf Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10280373 | Refrigerator Door (includes Illus. 7 & 18) (stainless Steel) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 7 | W11624977 | Door Gasket, Magnetic (apollo Grey) (Replaces: W10279664) |
|
$ 333.47 | |||||
| 8 | 2210566 | Compartment Door |
|
$ 65.25 | |||||
| 9 | W10274642 | Handle, Door |
|
- | |||||
| 10 | 2159302 | Tray, Door |
|
$ 42.08 | |||||
| 11 | W11366418 | Set Screw (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 13 | 2218109 | Door Compartment |
|
$ 33.66 | |||||
| 14 | 2159312 | Trim, Door Shelf |
|
$ 47.75 | |||||
| 15 | W10333274 | Bin, Door (3) |
|
- | |||||
| 18 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 19 | 2177340 | Plug, Trim (2) |
|
$ 5.84 | |||||
| 20 | WP2156006 | Plug, Trim (Replaces: 2156006) |
|
Immediately | $ 11.51 | ||||
| 21 | WPW10421484 | Trim, Door Shelf (Replaces: 2195949) |
|
$ 122.63 |
