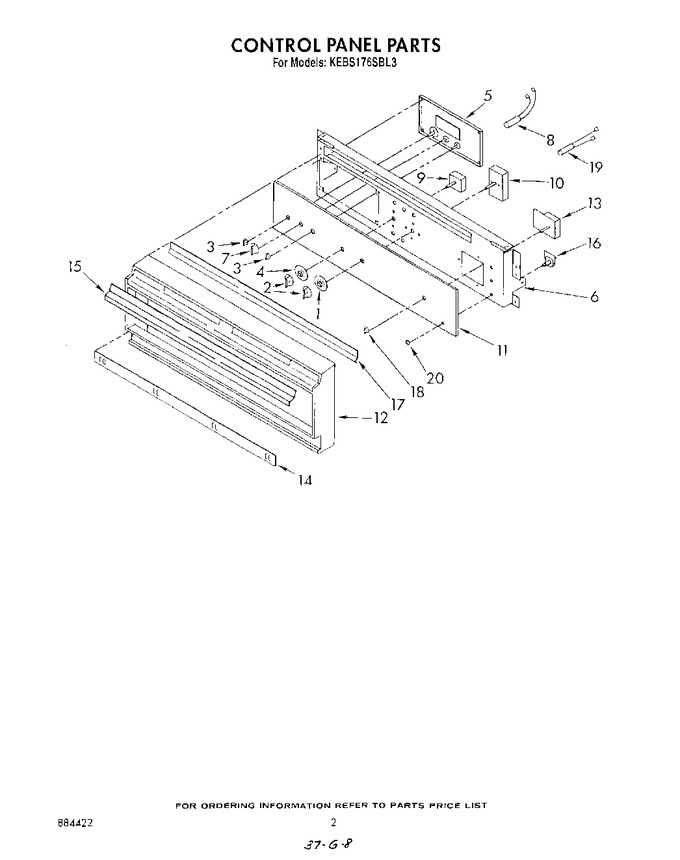

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3179678		Disc, Thermostat (2)		Appelez-nous	-
2	WP4168403		Knob, Control (2)   (Replaces: 4168403)				$ 18.04
3	3177121		Knob, Timer (2) (start & Stop)		Appelez-nous	-
4	4175379		Clip		Appelez-nous	-
4	4163800		Disc, Selector		Appelez-nous	-
5	4164360		Nut (4)		Appelez-nous	-
5	4168838		Nut (2)		Appelez-nous	-
5	4159456		Screw (6)		Appelez-nous	-
5	4173071		Electronic Timer		Appelez-nous	-
6	4159465		Screw, (2)		Appelez-nous	-
6	4159470		Screw (4)		Appelez-nous	-
6	4164218		Bracket, Control		Appelez-nous	-
7	3177122		Knob, Timer		Appelez-nous	-
8	4163867		Clean On		Appelez-nous	-
9	155023		Screw (2)			Immediately	$ 7.91
9	3177174		Switch, Selector		Appelez-nous	-
10	4164361		Thermostat		Appelez-nous	-
10	155023		Screw (2)			Immediately	$ 7.91
11	4164345		Glass, Panel		Appelez-nous	-
12	4164363		Frame, Control		Appelez-nous	-
13	4159465		Screw		Appelez-nous	-
13	4163730		Indicator, Probe		Appelez-nous	-
14	4170323		Screw 8a X 1/2 (5)		Appelez-nous	-
14	4168717		Vent Insert		Appelez-nous	-
15	4168838		Nut (4)		Appelez-nous	-
15	4173385		Insert, Top		Appelez-nous	-
16	254225		Screw (2)		Appelez-nous	-
16	4167332		Switch, Light		Appelez-nous	-
17	4159456		Screw (6)		Appelez-nous	-
17	4167590		Retainer, Glass (2)		Appelez-nous	-
18	4163840		Knob, Probe Control		Appelez-nous	-
19	4168597		Light, Indicator (3) (lock)		Appelez-nous	-
19	4169465		Light, Indicator (3) (screw)		Appelez-nous	-
20	4169372		Bezel, Knob		Appelez-nous	-
	LIT3177123		Installation Instructions		Appelez-nous	-
	LIT884422		List, Repair Parts		Appelez-nous	-
	LIT4177639		Use And Care Guide		Appelez-nous	-
