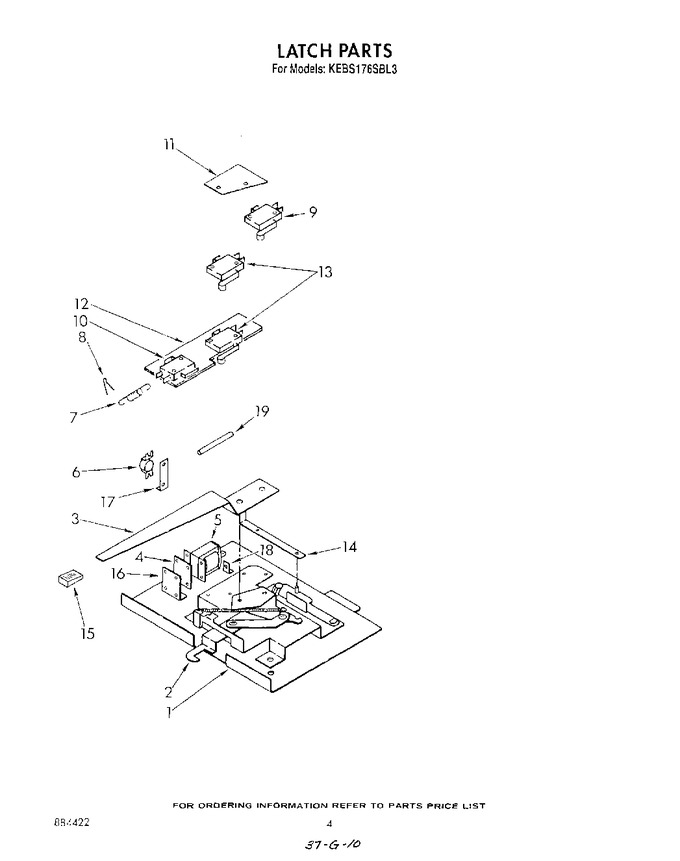

SELECT A DIAGRAM

02 - Control Panel , Lit/optional


03 - Control Compartment


04 - Latch


05 - Door


06 - Cabinet


07 - Wire Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	4159117		Nut (2)		Appelez-nous	-
10	4164366		Switch, Safety		Appelez-nous	-
10	4173053		Screw (2)		Appelez-nous	-
11	4163746		Insulator, Switch		Appelez-nous	-
12	4168522		Insulator (2)		Appelez-nous	-
13	4159117		Nut (2)		Appelez-nous	-
13	4168517		Latch Switch (2)		Appelez-nous	-
13	4173053		Screw (2)		Appelez-nous	-
14	4168553		Spacer		Appelez-nous	-
14	4159109		Nut		Appelez-nous	-
14	4159603		Washer, Flat		Appelez-nous	-
14	4168554		Screw (2)		Appelez-nous	-
14	4168058		Arm, Actuator		Appelez-nous	-
14	4159160		Retaining Ring		Appelez-nous	-
15	4163821		Knob, Lock		Appelez-nous	-
15	4159201		Screw, Machine		Appelez-nous	-
15	4168063		Latch, Plate		Appelez-nous	-
15	4159287		Screw (4)		Appelez-nous	-
15	4159109		Nut (4)		Appelez-nous	-
15	4168538		Mechanism, Latch		Appelez-nous	-
15	4159186		Screw (4)		Appelez-nous	-
15	3177965		Lever, Latch		Appelez-nous	-
15	4168579		Screw (4)		Appelez-nous	-
15	4168169		Solenoid Spacer		Appelez-nous	-
15	4173081		Solenoid		Appelez-nous	-
15	4173007		Thermal Switch		Appelez-nous	-
15	4159445		Screw, (2)		Appelez-nous	-
15	4168560		Solenoid Spring		Appelez-nous	-
15	4159129		Cotter Pin		Appelez-nous	-
15	4168514		Switch, Latch		Appelez-nous	-
16	4168292		Bracket		Appelez-nous	-
16	4159470		Screw (2)		Appelez-nous	-
17	4173170		Bracket Mtg.		Appelez-nous	-
17	4159445		Screw, (2)		Appelez-nous	-
18	4173168		Bracket, Harness		Appelez-nous	-
18	4159465		Screw		Appelez-nous	-
19	3178555		Sleeve		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
