SELECT A DIAGRAM

02 - Control Panel , Lit/optional

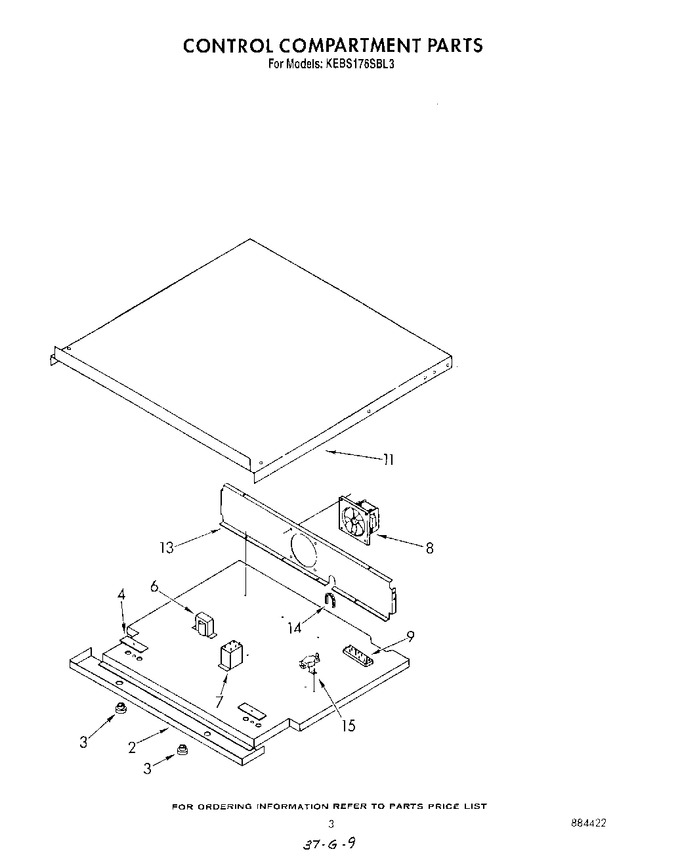

03 - Control Compartment


04 - Latch


05 - Door


06 - Cabinet


07 - Wire Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4173054		Sandwich Panel		Appelez-nous	-
3	4173043		Bushing (2)		Appelez-nous	-
4	4168257		Hole Cover (2)		Appelez-nous	-
4	4159465		Screw, (2)		Appelez-nous	-
6	4166561		Transformer		Appelez-nous	-
6	4159465		Screw, (2)		Appelez-nous	-
7	4163731		Relay, Probe		Appelez-nous	-
8	4159465		Screw (4)		Appelez-nous	-
8	4173004		Blower		Appelez-nous	-
9	4168800		Wire 10 G.a. 70``		Appelez-nous	-
9	4168002		Wire 10 G.a. 70``		Appelez-nous	-
9	4168735		Terminal Block		Appelez-nous	-
9	4159465		Screw (4)		Appelez-nous	-
9	4168001		Wire 10 G.a. 70``		Appelez-nous	-
11	4173276		Cabinet Top		Appelez-nous	-
11	4159465		Screw (8)		Appelez-nous	-
13	4173166		Panel, Blower		Appelez-nous	-
14	4159465		Screw		Appelez-nous	-
14	4173165		Flexible Bushing		Appelez-nous	-
15	4159465		Screw, (2)		Appelez-nous	-
15	4173008		Switch, Fan		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
