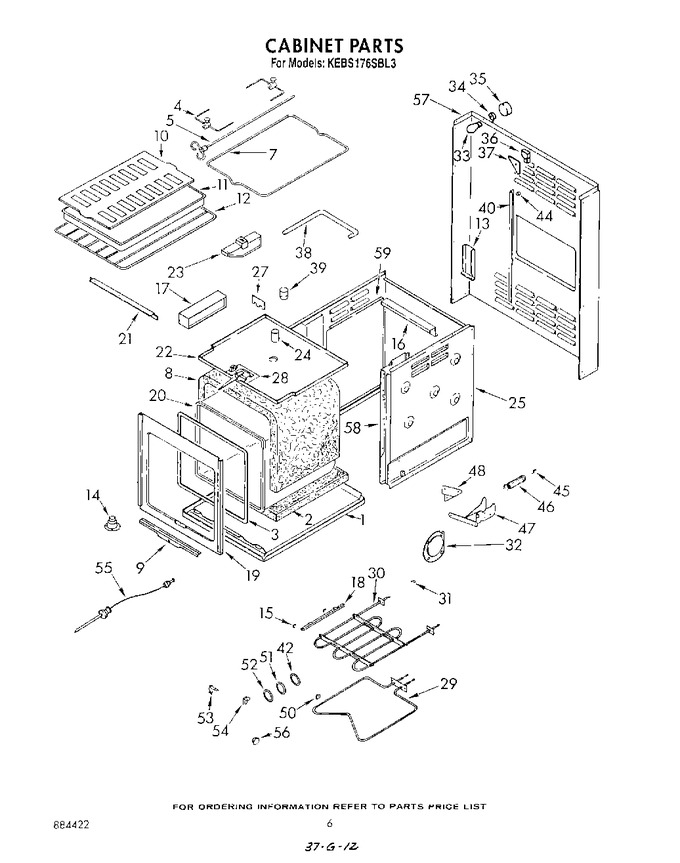

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4163966		Main Bottom		Appelez-nous	-
1	4159465		Screw (4)		Appelez-nous	-
2	4164191		Insulation, Bottom		Appelez-nous	-
3	3178580		Door Gasket		Appelez-nous	-
4	4166352		Skewer, Rotisserie (2)		Appelez-nous	-
5	4168724		Spear		Appelez-nous	-
6	4167588		Cover, Seal End		Appelez-nous	-
7	4168412		Rack		Appelez-nous	-
8	4164192		Insulation, Rear		Appelez-nous	-
8	4169310		Insulation, Top And Sides		Appelez-nous	-
9	3177549		Retainer-gasket		Appelez-nous	-
9	4168863		Screw (7)		Appelez-nous	-
10	4396923		Grid, Broiler   (Replaces: 4164251)			Immediately	$ 54.64
11	4396923		Pan, Broiler   (Replaces: 4164250)			Immediately	$ 54.64
12	4168401		Rack, Oven		Appelez-nous	-
13	4159465		Screw (4)		Appelez-nous	-
13	4167599		Spring, Anchor		Appelez-nous	-
13	4167526		Rear Anchor		Appelez-nous	-
14	4168492		Eliminator, Smoke		Appelez-nous	-
15	4173275		Bulb, Thermostat		Appelez-nous	-
16	4168266		Support, Frame		Appelez-nous	-
17	4168681		Collector Box		Appelez-nous	-
17	4159465		Screw, (2)		Appelez-nous	-
18	4168217		Support, Element (right Side)		Appelez-nous	-
18	4168218		Support, Element (left Side)		Appelez-nous	-
18	4159564		Support, Element (screw (4))		Appelez-nous	-
19	3178717		Front Frame		Appelez-nous	-
20	3178745		Liner, Oven		Appelez-nous	-
21	4159470		Screw (6)		Appelez-nous	-
21	4169336		Control Frame Support		Appelez-nous	-
22	4159465		Screw (11)		Appelez-nous	-
22	4169314		Compartment Top		Appelez-nous	-
23	4159465		Screw, (2)		Appelez-nous	-
23	4168838		Nut, Tinnerman (4)		Appelez-nous	-
23	4166262		Nut, 8-32 (4)		Appelez-nous	-
23	4163941		Vent Box		Appelez-nous	-
24	4168494		Vent Tube		Appelez-nous	-
25	4173055		Cabinet Side		Appelez-nous	-
27	4159465		Screw, (2)		Appelez-nous	-
27	4168242		Bracket, Vent		Appelez-nous	-
28	4159465		Latch Assembly (see Page Three) (screw (15))		Appelez-nous	-
29	4163990		Element, Bake		Appelez-nous	-
30	4159465		Screw (8)		Appelez-nous	-
30	3177405		Broiler Element		Appelez-nous	-
31	4168203		Cover, Cap		Appelez-nous	-
31	4159445		Screw		Appelez-nous	-
32	4159465		Screw (4)		Appelez-nous	-
32	4163883		Plate, Cover		Appelez-nous	-
33	311225		Bulb, 40 Watt		Appelez-nous	-
34	4159465		Screw (3)		Appelez-nous	-
34	4168755		Socket, Lamp		Appelez-nous	-
35	4167579		Light Shield		Appelez-nous	-
36	4163836		Rotisserie Motor		Appelez-nous	-
37	WP488234		Screw (4)   (Replaces: 4159334)				$ 6.37
37	4167469		Plate, Motor		Appelez-nous	-
38	4168140		Retainer, Tube		Appelez-nous	-
38	4168592		Vent Tube		Appelez-nous	-
39	4159465		Screw (3)		Appelez-nous	-
39	4168126		Vent Tube Extension		Appelez-nous	-
40	4163759		Cabinet, Support (right Side)		Appelez-nous	-
40	4163760		Cabinet, Support (left Side)		Appelez-nous	-
42	4166868		Gasket, Oven Light		Appelez-nous	-
44	4168590		Spacer		Appelez-nous	-
44	4159188		Screw (4)		Appelez-nous	-
45	4167599		Spring, Anchor		Appelez-nous	-
46	4173048		Door Spring		Appelez-nous	-
47	4167596		Hinge Assembly		Appelez-nous	-
47	4159188		Screw (6)		Appelez-nous	-
48	4167597		Cam Plate (right)		Appelez-nous	-
49	4167598		Cam Plate (left)		Appelez-nous	-
49	4159188		Screw (6)		Appelez-nous	-
50	4168874		Screw		Appelez-nous	-
50	4167518		Cover, Rotisserie		Appelez-nous	-
51	4166866		Lens, Light		Appelez-nous	-
52	4159445		Screw (3)		Appelez-nous	-
52	4167938		Retainer, Lens		Appelez-nous	-
53	4167277		Nut		Appelez-nous	-
53	4173438		Washer		Appelez-nous	-
53	4159557		Washer		Appelez-nous	-
53	4164293		Jack, Probe		Appelez-nous	-
53	4163975		Gasket		Appelez-nous	-
53	4173084		Jamnut		Appelez-nous	-
54	4167266		Cover, Jack		Appelez-nous	-
55	4167267		Probe, Temperature		Appelez-nous	-
56	4159122		Button, Plug 5/8`` Hole		Appelez-nous	-
57	4159456		Screw (6)		Appelez-nous	-
57	4169313		Cabinet Back		Appelez-nous	-
57	4159465		Screw (15)		Appelez-nous	-
57	4159470		Screw (6)		Appelez-nous	-
58	4159465		Air Duct (screw (2))		Appelez-nous	-
58	4163752		Air Duct (left Hand)		Appelez-nous	-
58	4163753		Air Duct (right Hand)		Appelez-nous	-
59	4173017		Extension, Air Duct (right Hand)		Appelez-nous	-
59	4173016		Extension, Air Duct (left Hand)		Appelez-nous	-
59	4159465		Extension, Air Duct (screw (15))		Appelez-nous	-
