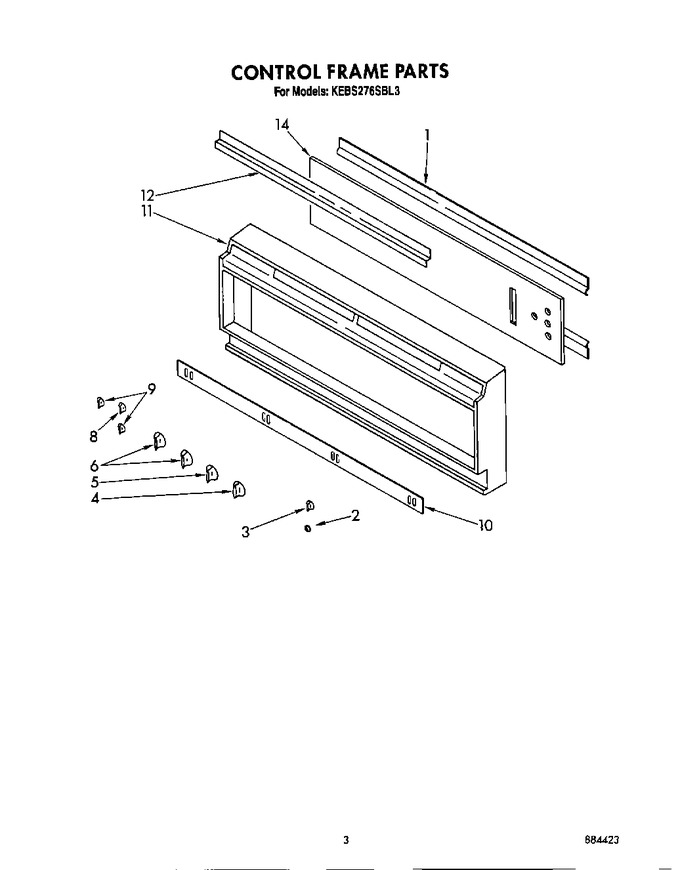

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4167590		Retainer		Appelez-nous	-
1	4159456		Screw (6)		Appelez-nous	-
2	4169372		Bezel, Oven Light Switch		Appelez-nous	-
3	4163840		Knob, Meat Probe Indicator		Appelez-nous	-
4	WP4168403		Knob, Thermostat Lower Oven   (Replaces: 4168403)				$ 18.04
5	WP4168403		Knob, Selector   (Replaces: 4168403)				$ 18.04
6	WP4168403		Knob, Thermostat (rotary Control)   (Replaces: 4168403)				$ 18.04
8	3177122		Knob, Timer (rotary Control)		Appelez-nous	-
9	3177121		Knob, Timer (push Button Control)		Appelez-nous	-
10	4168717		Vent Insert		Appelez-nous	-
10	4168838		Nut (4)		Appelez-nous	-
10	4166262		Nut (2)		Appelez-nous	-
11	4164363		Control Frame		Appelez-nous	-
12	4170323		Screw (5)		Appelez-nous	-
12	4173385		Insert, Top		Appelez-nous	-
14	4164346		Control Panel Glass		Appelez-nous	-
