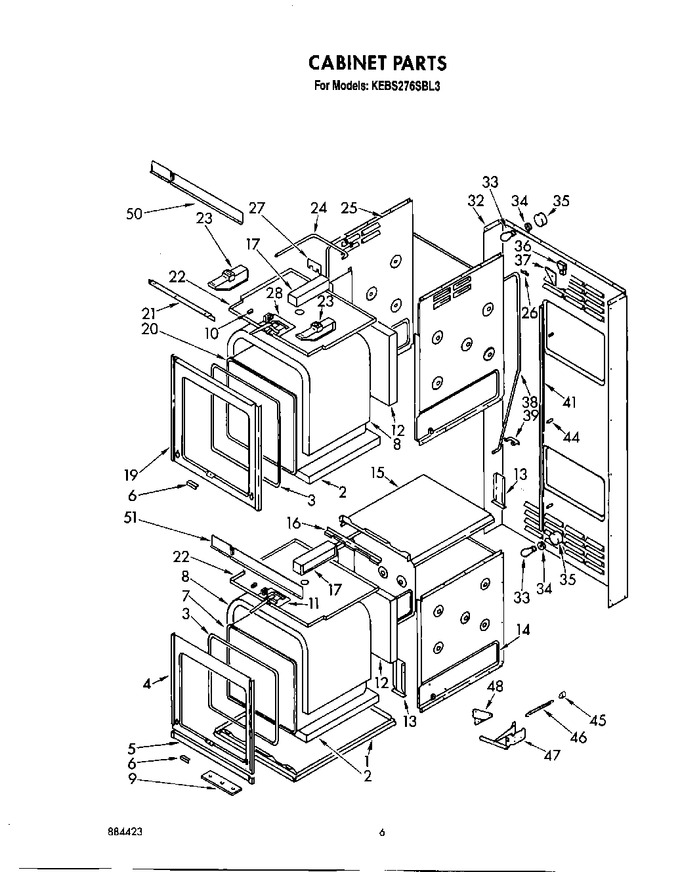

SELECT A DIAGRAM

02 - Control Panel , Lit/optional


03 - Control Frame


04 - Control Compartment


05 - Latch


06 - Cabinet


07 - Liner


08 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4169334		Main Bottom		Appelez-nous	-
1	4159465		Screw (7)		Appelez-nous	-
2	4164191		Insulation, Bottom		Appelez-nous	-
3	4168829		Door Gasket		Appelez-nous	-
4	4168863		Screw (7)		Appelez-nous	-
4	4168414		Screw (2)		Appelez-nous	-
4	4173184		Front Frame, Lower Oven		Appelez-nous	-
5	4164196		Bottom Trim		Appelez-nous	-
6	4167588		Cover, Seal End		Appelez-nous	-
8	4169310		Insulation, Top And Sides		Appelez-nous	-
9	3179688		Plate, Cover		Appelez-nous	-
10	4163821		Knob, Latch Lever (2)		Appelez-nous	-
10	4159201		Screw (2)		Appelez-nous	-
12	4164192		Insulation, Rear		Appelez-nous	-
13	4159465		Screw (4)		Appelez-nous	-
13	4167526		Rear Anchor		Appelez-nous	-
14	4159465		Screw (25)		Appelez-nous	-
14	4173080		Cabinet Side (lower Oven)		Appelez-nous	-
15	4159465		Screw (8)		Appelez-nous	-
15	4164295		Upper Oven Support		Appelez-nous	-
16	4159465		Screw (5)		Appelez-nous	-
16	4168266		Front Frame Support		Appelez-nous	-
17	4159465		Screw, (2)		Appelez-nous	-
17	4168681		Collector Box		Appelez-nous	-
19	4168863		Screw (8)		Appelez-nous	-
19	4164204		Front Frame (upper Oven)		Appelez-nous	-
21	4169336		Control Frame Support		Appelez-nous	-
21	4159456		Screw (4)		Appelez-nous	-
22	4169314		Compartment Top (lower Oven)		Appelez-nous	-
22	4159465		Compartment Top (screw (11))		Appelez-nous	-
22	4156315		Compartment Top (upper Oven)		Appelez-nous	-
23	4163941		Vent Box		Appelez-nous	-
23	4159465		Screw, (2)		Appelez-nous	-
24	4168494		Vent Tube (single Or Upper Oven)		Appelez-nous	-
24	4159465		Screw, (2)		Appelez-nous	-
25	4173055		Cabinet Side (single Or Upper Oven)		Appelez-nous	-
26	4159465		Screw, (2)		Appelez-nous	-
26	4167593		Clamp, Conduit		Appelez-nous	-
27	4159465		Screw, (2)		Appelez-nous	-
27	4168242		Vent Tube Mounting Bracket		Appelez-nous	-
32	4173060		Cabinet Back		Appelez-nous	-
32	4159465		Screw, (2)		Appelez-nous	-
33	8009		Bulb, 40 Watt   (Replaces: 4173062)			Immediately	$ 16.80
34	4159465		Screw (21)		Appelez-nous	-
34	4168755		Socket, Lamp		Appelez-nous	-
35	4167579		Light Shield		Appelez-nous	-
36	4159465		Screw (4)		Appelez-nous	-
36	4163836		Rotisserie Motor		Appelez-nous	-
37	4167469		Rotisserie Motor Mounting Plate		Appelez-nous	-
37	4159501		Washer (4)		Appelez-nous	-
37	WP488234		Screw (4)   (Replaces: 4159334)				$ 6.37
38	4168592		Vent Tube, Lower Oven		Appelez-nous	-
39	4168140		Vent Tube, Retainer		Appelez-nous	-
39	4159465		Screw, (2)		Appelez-nous	-
41	4163764		Cabinet Support Double Oven (left)		Appelez-nous	-
41	4163763		Cabinet Support Double Oven (right)		Appelez-nous	-
41	4159188		Cabinet Support Double Oven (screw (3))		Appelez-nous	-
41	W11233072		Cabinet Support Double Oven (screw (3))   (Replaces: 4159450)			Immediately	$ 13.25
41	4159456		Cabinet Support Double Oven (screw (5))		Appelez-nous	-
41	4159470		Cabinet Support Double Oven (screw (5))		Appelez-nous	-
44	4168590		Spacer (6)		Appelez-nous	-
45	4167599		Spring Anchor (2)		Appelez-nous	-
46	4173048		Door Spring, Self-cleaning Oven (4)		Appelez-nous	-
47	4159188		Screw (12)		Appelez-nous	-
47	4167596		Hinge Assembly (4)		Appelez-nous	-
48	4167598		Cam Plate (left)		Appelez-nous	-
48	4167597		Cam Plate (right)		Appelez-nous	-
48	4159188		Cam Plate (screw (3))		Appelez-nous	-
50	4173061		Air Baffle Channel		Appelez-nous	-
50	4159465		Screw (4)		Appelez-nous	-
51	4163754		Air Duct (left (lower Oven))		Appelez-nous	-
51	4173016		Extension, Air Duct L.h.		Appelez-nous	-
51	4173017		Extension, Air Duct R.h.		Appelez-nous	-
51	4173171		Air Diverter		Appelez-nous	-
51	4163883		Probe Cover		Appelez-nous	-
51	4168863		Screw, 8a X 3/8 Pkemsms		Appelez-nous	-
51	4163753		Air Duct-right (single Or Upper Oven)		Appelez-nous	-
51	4163752		Air Duct-left (single Or Upper Oven)		Appelez-nous	-
51	4163755		Air Duct, Right Lower Oven		Appelez-nous	-
51	4159465		Screw, (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
